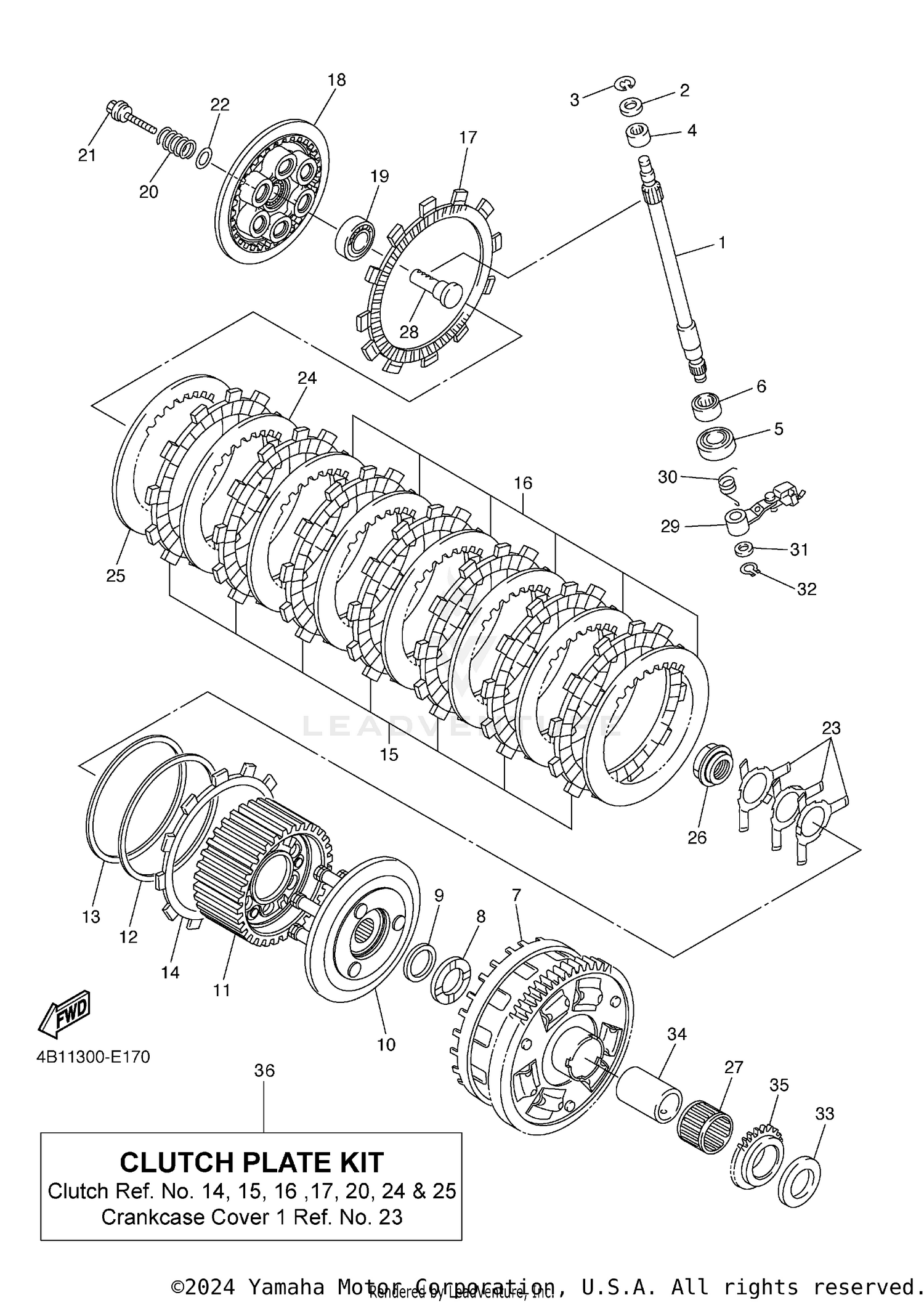

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, PUSH LEVER
5VY-16382-10-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, PLATE
92907-08600-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
CIRCLIP
99001-07600-00
Superseded by 99080-07600-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BEARING
93317-11096-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93102-15212-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BEARING
93315-31502-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PRIMARY DRIVEN GEAR COMP.
4B1-16150-00-00
|
$515.40 | ||
|
Unavailable |
|||
|
#8
PLATE, THRUST 1
4B1-16154-00-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, CONICAL SPRING
90208-25002-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PRESSURE PLATE ASSY 2
4B1-16360-00-00
|
$704.45 | ||
|
Unavailable |
|||
|
#11
CLUTCH BOSS ASSY
4B1-16370-00-00
|
$577.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, SEAT
5VY-16384-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, CLUTCH BOSS
4B1-16383-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, FRICTION 2
5VY-16331-00-00
|
$28.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PLATE, FRICTION
5VY-16321-00-00
|
$34.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PLATE, CLUTCH 2
5VY-16325-00-00
Superseded by 5VY-16325-20-00
|
$12.49 | ||
|
Unavailable |
|||
|
#17
PLATE, FRICTION 2
5VY-16330-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, PRESSURE 1
4B1-16351-00-00
|
$446.75 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING
93306-00304-00
Superseded by 93306-00315-00
|
$36.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SPRING, COMPRESSION
90501-240A0-00
Superseded by 90501-240A2-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, COMPRESSION
90501-240A2-00
|
$22.99 | ||
|
Unavailable |
|||
|
#21
SCREW, WITH WASHER
90159-06026-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, SEAT
4B1-16384-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING
2C0-16539-00-00
Superseded by 13S-16539-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, CLUTCH 2
5VY-16325-00-00
Superseded by 5VY-16325-20-00
|
$12.49 | ||
|
Unavailable |
|||
|
#24
PLATE, CLUTCH 2
4B1-16325-00-00
|
$25.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
PLATE, CLUTCH 2
4B1-16325-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#25
PLATE, CLUTCH 2
5VY-16325-00-00
Superseded by 5VY-16325-20-00
|
$12.49 | ||
|
Unavailable |
|||
|
#25
PLATE, CLUTCH 1
4B1-16324-00-00
Superseded by BR9-16324-10-00
|
$11.49 | ||
|
Unavailable |
|||
|
#26
NUT, LOCK
4B1-16377-00-00
|
$58.56 | ||
|
Unavailable |
|||
|
#27
BEARING
93310-232R9-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
ROD, PUSH 1
4XV-16356-01-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PUSH LEVER ASSY
5VY-16340-10-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPRING, TORSION
90508-16041-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
90201-10029-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
CIRCLIP
99009-10400-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
PLATE, THRUST 2
5VY-16164-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPACER 1
5VY-16181-00-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPROCKET, DRIVE
5VY-13354-00-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLUTCH PLATE KIT
4C8-W001G-00-00
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
