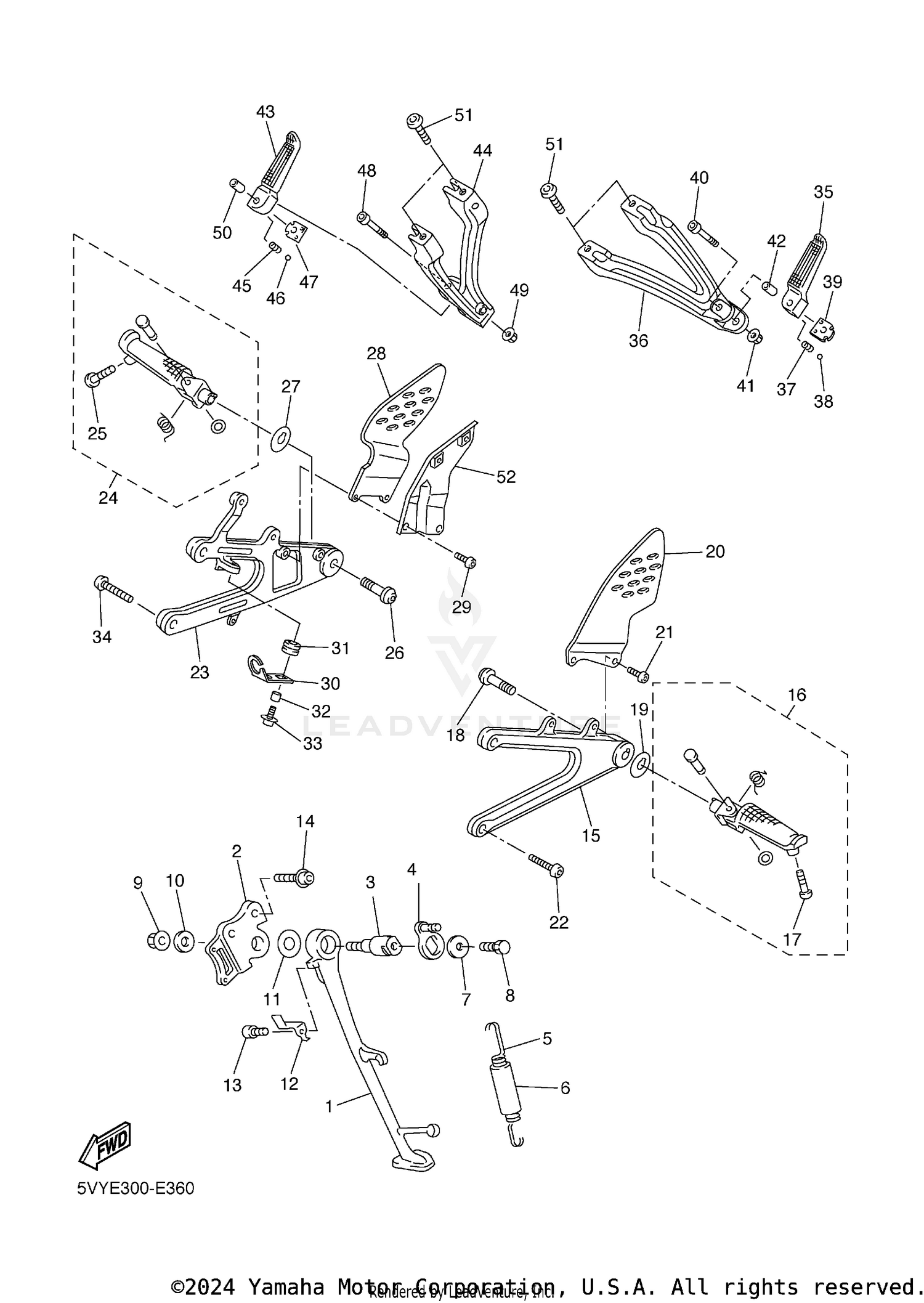

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
5VY-27311-01-00
|
$223.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, SIDE STAND
5JJ-27321-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, SIDE STAND
4NX-27351-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOOK, SIDE STAND
5PW-27352-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TENSION
90506-18008-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE (L60)
90445-19002-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-081R9-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT
90101-08662-00
Superseded by 97017-08020-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, U FLANGE
95607-10200-00
|
$4.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-101J1-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-146F9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
LINK, SIDE STAND
5JJ-27315-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
91317-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEXAGON SOCKET
90109-10002-00
Superseded by 90110-10026-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET 2
5VY-27442-01-00
Superseded by 5VY-27442-02-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
FRONT FOOTREST ASSY (LEFT)
5VY-27410-00-00
|
$171.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
90109-083E0-00
Superseded by 90109-08075-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT,HEX. SOCKET BUT
90109-103A9-00
Superseded by 90111-10017-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, CLAW
90214-10002-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE 1
5VY-27445-00-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, BUTTON HEAD
90111-06003-00
Superseded by 92014-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
90109-085G6-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET 3
5VY-27443-01-00
Superseded by 5VY-27443-02-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
FRONT FOOTREST ASSY (RIGHT)
5VY-27420-00-00
|
$166.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
90109-083E0-00
Superseded by 90109-08075-00
|
$8.49 | ||
|
Unavailable |
|||
|
#26
BOLT,HEX. SOCKET BUT
90109-103A9-00
Superseded by 90111-10017-00
|
$10.49 | ||
|
Unavailable |
|||
|
#27
WASHER, CLAW
90214-10002-00
|
$2.60 | ||
|
Unavailable |
|||
|
#28
PLATE 2
5VY-27446-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, BUTTON HEAD
90149-06304-00
Superseded by 92017-06014-00
|
$4.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
STAY, STOP SWITCH
5VY-2144G-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
GROMMET
90480-12607-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR
90387-06023-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, WITH WASHER
90159-06150-00
Superseded by 90159-06082-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
BOLT
90109-085G6-00
|
$3.50 | ||
|
Unavailable |
|||
|
#35
FOOTREST, REAR 1
5JJ-27431-00-00
Superseded by 5JJ-27431-10-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BRACKET 4
5VY-2741L-00-00
Superseded by 5VY-2741L-01-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
SPRING, COMPRESSION
90501-12743-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
BALL
93501-04011-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
WASHER, SPECIAL
5JJ-27437-01-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
BOLT, HEXAGON SOCKET HEAD
91314-06035-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
NUT, U FLANGE
95604-06200-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
COLLAR
90387-06697-00
|
$18.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
FOOTREST, REAR 2
5JJ-27441-00-00
Superseded by 5JJ-27441-10-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
BRACKET 5
5VY-2742L-00-00
Superseded by 5VY-2742L-01-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
SPRING, COMPRESSION
90501-12743-00
|
$5.49 | ||
|
Unavailable |
|||
|
#46
BALL
93501-04011-00
|
$9.49 | ||
|
Unavailable |
|||
|
#47
WASHER, SPECIAL
5JJ-27437-01-00
|
$7.49 | ||
|
Unavailable |
|||
|
#48
BOLT, HEXAGON SOCKET HEAD
91314-06035-00
|
$9.49 | ||
|
Unavailable |
|||
|
#49
NUT, U FLANGE
95604-06200-00
|
$2.95 | ||
|
Unavailable |
|||
|
#50
COLLAR
90387-06697-00
|
$18.49 | ||
|
Unavailable |
|||
|
#51
BOLT, BUTTON HEAD
92017-08020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
BRACKET, FOOTREST 2
5VY-27425-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
