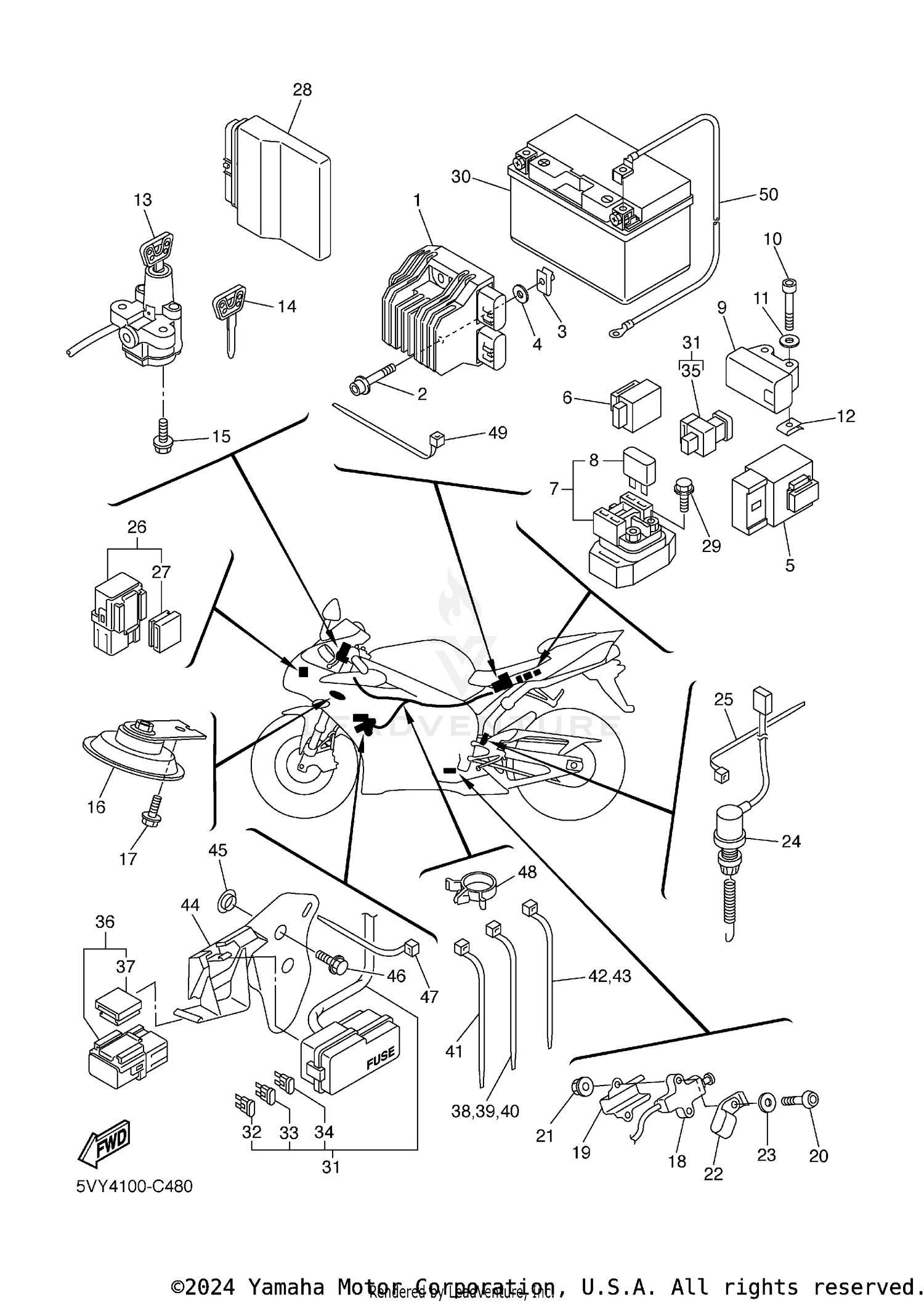

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECTIFIER & REGULATOR ASSY
5VY-81960-00-00
|
$547.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, HEXAGON SOCKET HEAD
90110-06066-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
WASHER, PLATE
90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
RELAY ASSY (G8R-30Y-W4)
5VK-81950-40-00
Superseded by 5VK-81950-43-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLASHER RELAY ASSY
4MY-83350-01-00
Superseded by 4MY-83350-03-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
STARTER RELAY ASSY (RC19-032)
5JW-81940-02-00
|
$133.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
FUSE (15A-BLUE)
36Y-82151-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SENSOR, LEAN ANGLE
5PS-82576-01-00
Superseded by 5PS-82576-02-00
|
$96.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, HEX. SOCKET HEAD
91317-04025-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-047A2-00
|
$4.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
NUT, spring
90183-04039-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
MAIN SWITCH STEERING LOCK
5VY-82501-10-00
|
$346.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BLANK KEY
4BH-82511-09-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT
90109-080G5-00
Superseded by 90109-08196-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
HORN
4TH-83371-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95807-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SWITCH, SIDE STAND
5PX-82566-51-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE
5JJ-82388-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, BUTTON HEAD
92017-05030-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, S/L FLANGE
95607-05200-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
90461-10002-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-057H5-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
STOP SWITCH ASSY
5PW-82530-00-00
Superseded by 5PW-82530-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP 1
5Y9-12491-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
RELAY ASSY (5JJ-20)
5JJ-81950-20-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER, RELAY
5JJ-81952-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
ENGINE CONTROL UNIT ASSY
5VY-8591A-B0-00
|
$1,099.55 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE
95027-06008-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
YTZ10S YUASA BATTER
BTY-YTZ10-S0-00
Superseded by YTZ-10S00-00-00
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
WIRE HARNESS ASSY
5VY-82590-40-00
|
$691.52 | ||
|
Available to order. Add to View Price |
|||
|
#32
FUSE (15A)
5JJ-82151-10-00
Superseded by 67F-82151-50-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#33
FUSE (10A)
5JJ-82151-30-00
Superseded by 67F-82151-40-00
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#34
FUSE (25A-BL)
5JJ-82151-70-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
FUSE (50A)
5JW-82151-10-00
|
$17.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
RELAY ASSY (5EA-02)
5EA-81950-20-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
HOLDER, RELAY
5EA-81952-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
CLAMP
90464-15195-00
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLAMP
90464-15195-00
|
$4.41 | ||
|
Unavailable |
|||
|
#40
CLAMP
90464-15195-00
|
$4.41 | ||
|
Unavailable |
|||
|
#41
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.41 | ||
|
Unavailable |
|||
|
#42
BAND
1UA-82591-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
BAND
1UA-82591-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#44
STAY, FUSE BOX
5VY-82171-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
COLLAR
90387-06040-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT, WITH WASHER
90119-06228-00
Superseded by 90119-06114-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
CLAMP
90464-13077-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
CLAMP
90464-15157-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.41 | ||
|
Unavailable |
|||
|
#50
WIRE, MINUS LEAD
5VY-82116-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
