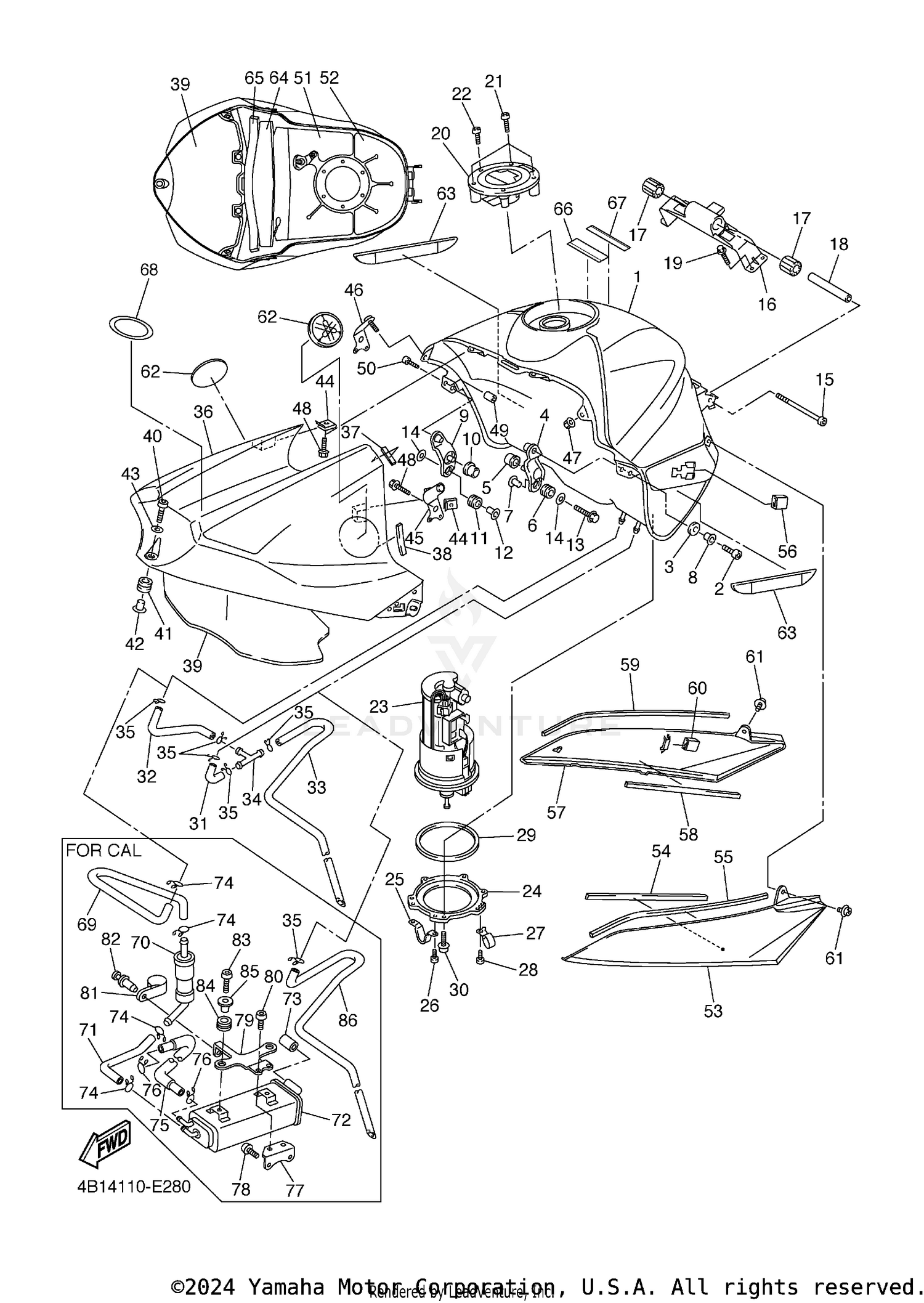

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
5VY-YK241-30-P3
|
$1,037.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT (4MY)
91317-06016-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, LOCATING 3
5VY-24183-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, FUEL TANK 1
5VY-24191-00-00
Superseded by 5VY-24191-10-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER, LOCATING 1
5VY-24181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
90480-10542-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
COLLAR
90387-066Y6-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-061U9-00
Superseded by 90387-087L0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, FUEL TANK 2
5VY-24192-00-00
Superseded by 5VY-24192-10-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, LOCATING 1
5VY-24181-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#11
GROMMET
90480-10542-00
|
$12.49 | ||
|
Unavailable |
|||
|
#12
COLLAR
90387-066Y6-00
|
$10.49 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE
95027-06030-00
|
$4.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-06063-00
Superseded by 90201-06095-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
91317-06090-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, TANK FITTING
5VY-2413Y-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, LOCATING 3
5SL-24183-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-06055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95027-06020-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP ASSY
5JJ-24602-00-00
Superseded by 39P-24602-00-00
|
$278.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, HEXAGON SOCKET HEAD
90110-05112-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEX. SOCKET HEAD
91317-05010-00
|
$2.75 | ||
|
Unavailable |
|||
|
#23
FUEL PUMP COMP.
5PW-13907-01-00
Superseded by 5PW-13907-05-00
|
$687.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET, FUEL PUMP
5VY-24491-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#25
BRACKET, FUEL TANK 2
5PW-24192-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, BIND
98907-05008-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP
90461-10010-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, BIND
90154-05012-00
Superseded by 98907-05008-00
|
$2.35 | ||
|
Unavailable |
|||
|
#29
O-RING
5JW-24486-00-00
Superseded by 19B-24486-01-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, HEXAGON SOCKET HEAD
90110-05014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIPE 5
5VY-24315-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIPE 6
5VY-24316-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIPE 7
5VY-24317-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#34
WAY 3
90413-07007-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#36
COVER, TOP
5VY-2171A-01-P5
|
$278.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
DAMPER, PLATE 2
5VY-2414J-00-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#38
DAMPER 3
4XV-2834E-00-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#39
DAMPER, SIDE COVER
5VY-24145-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
GROMMET
90480-12314-00
Superseded by 90480-12X00-00
|
$1.25 | ||
|
Unavailable |
|||
|
#42
COLLAR
90387-065J6-00
Superseded by 90387-06159-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
WASHER, PLATE
90201-06M30-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT, SPRING
90183-05074-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
STAY, FUEL TANK 3
5VY-24117-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
STAY, FUEL TANK 4
5VY-24118-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
NUT, FLANGE
95707-05500-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT, FLANGE
90105-05002-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#49
NUT
90179-05523-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
SCREW, BIND
98907-05014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
DAMPER, PLATE 4
5VY-2414N-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
DAMPER, PLATE 5
5VY-2414P-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
COVER, SIDE 1
5VY-24129-01-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
DAMPER, PLATE 2
5PW-2414J-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
DAMPER, PLATE 1
5PW-2414H-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#56
DAMPER, SIDE COVER
5PW-2411J-01-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#57
COVER, SIDE 2
5VY-24139-01-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
DAMPER, PLATE 2
5PW-2414J-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#59
DAMPER, PLATE 1
5PW-2414H-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#60
DAMPER, SIDE COVER
5PW-2411J-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#61
SCREW, WITH WASHER
90159-05015-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
EMBLEM
5PW-2413B-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
DAMPER, PLATE 3
5VY-2414K-00-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
DAMPER, PLATE 6
5VY-2414R-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
DAMPER, PLATE 1
5VY-2414H-00-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#66
LABEL, CAUTION
5GK-2118K-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#67
LABEL, CAUTION
5PW-2415E-11-00
Superseded by 5PW-2415E-12-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#68
EMBLEM, 3D
5XC-2164B-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#69
PIPE 3
5VY-24313-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
ROLL OVER VALVE ASSY
5RB-24180-00-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#71
PIPE 4
5VY-24314-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#72
CANISTER ASSY
5VY-24170-00-00
|
$360.05 | ||
|
Unavailable |
|||
|
#73
HOSE (L70)
90445-11418-00
Superseded by 90445-112E0-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#74
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#75
PIPE
5VY-1443J-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#76
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#77
BRACKET, CANISTOR
5VY-2419F-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#78
BOLT, HEX. SOCKET BUTTON
92017-06016-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#79
STAY
5VY-24216-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#80
BOLT, BUTTON HEAD
92017-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#81
CLAMP
90461-15139-00
Superseded by 90464-15014-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#82
RIVET
90269-05001-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#83
BOLT, HEX. SOCKET BUTTON
92017-06016-00
|
$9.49 | ||
|
Unavailable |
|||
|
#84
GROMMET
90480-13018-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#85
COLLAR
90387-062L2-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#86
PIPE 2
5VY-24312-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
