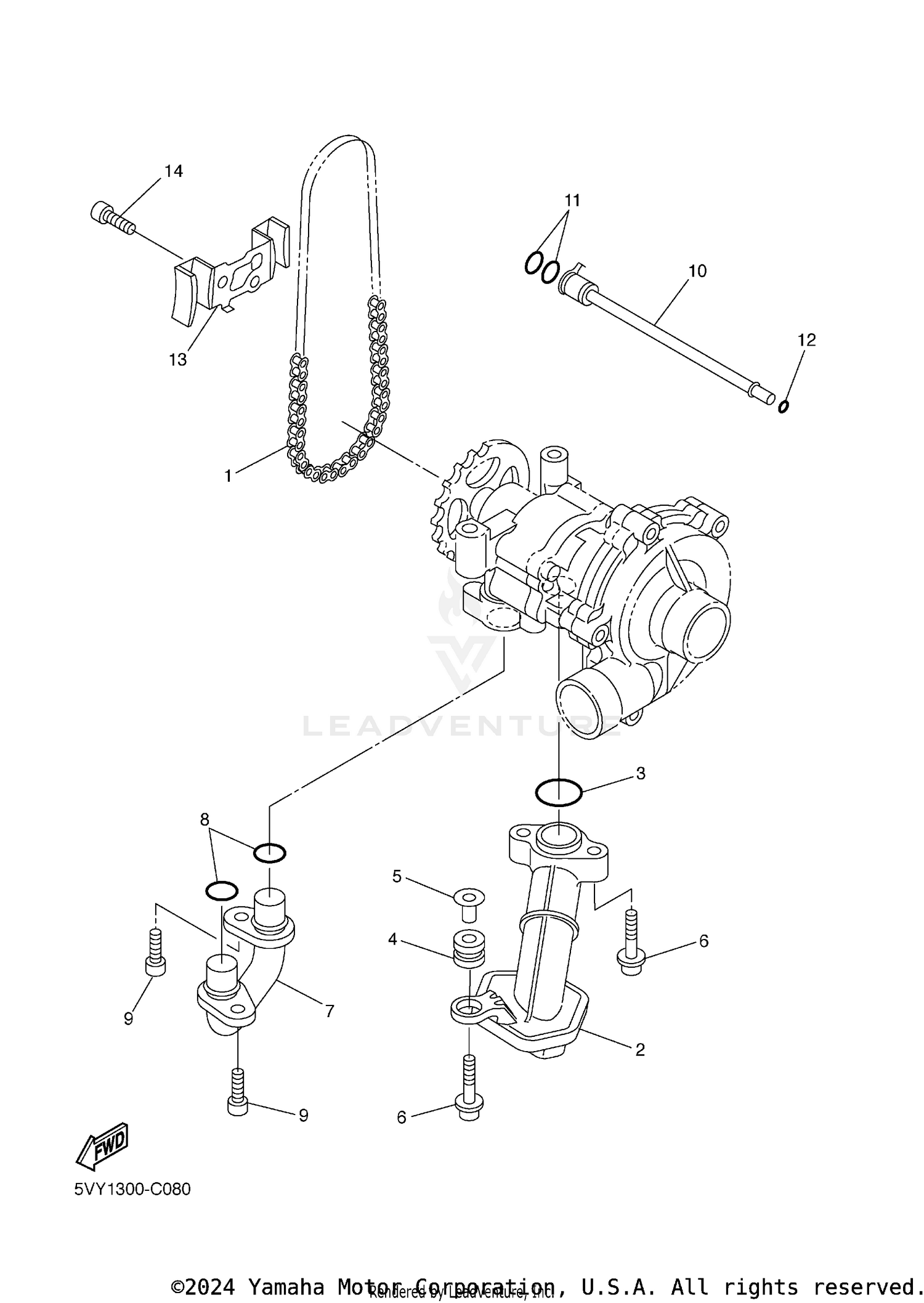

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN (DID25 78LE)
94580-25078-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
STRAINER HOUSING ASSY
5VY-13410-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-22298-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
GROMMET
90480-13010-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, DISTANCE
5VY-13117-10-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON SOCKET HEAD
90110-06173-00
Superseded by 90110-06172-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE, OIL 1
5VY-13416-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-14003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (4MY)
90110-06161-00
Superseded by 91317-06016-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE, DELIVERY 5
5VY-1316E-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-09165-00
Superseded by 93210-09350-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
O-RING
93210-06667-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
HOLDER
5VY-13898-00-00
Superseded by 5VY-13898-01-00
|
$56.99 | ||
|
Unavailable |
|||
|
#14
BOLT
90110-06182-00
Superseded by 91317-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
