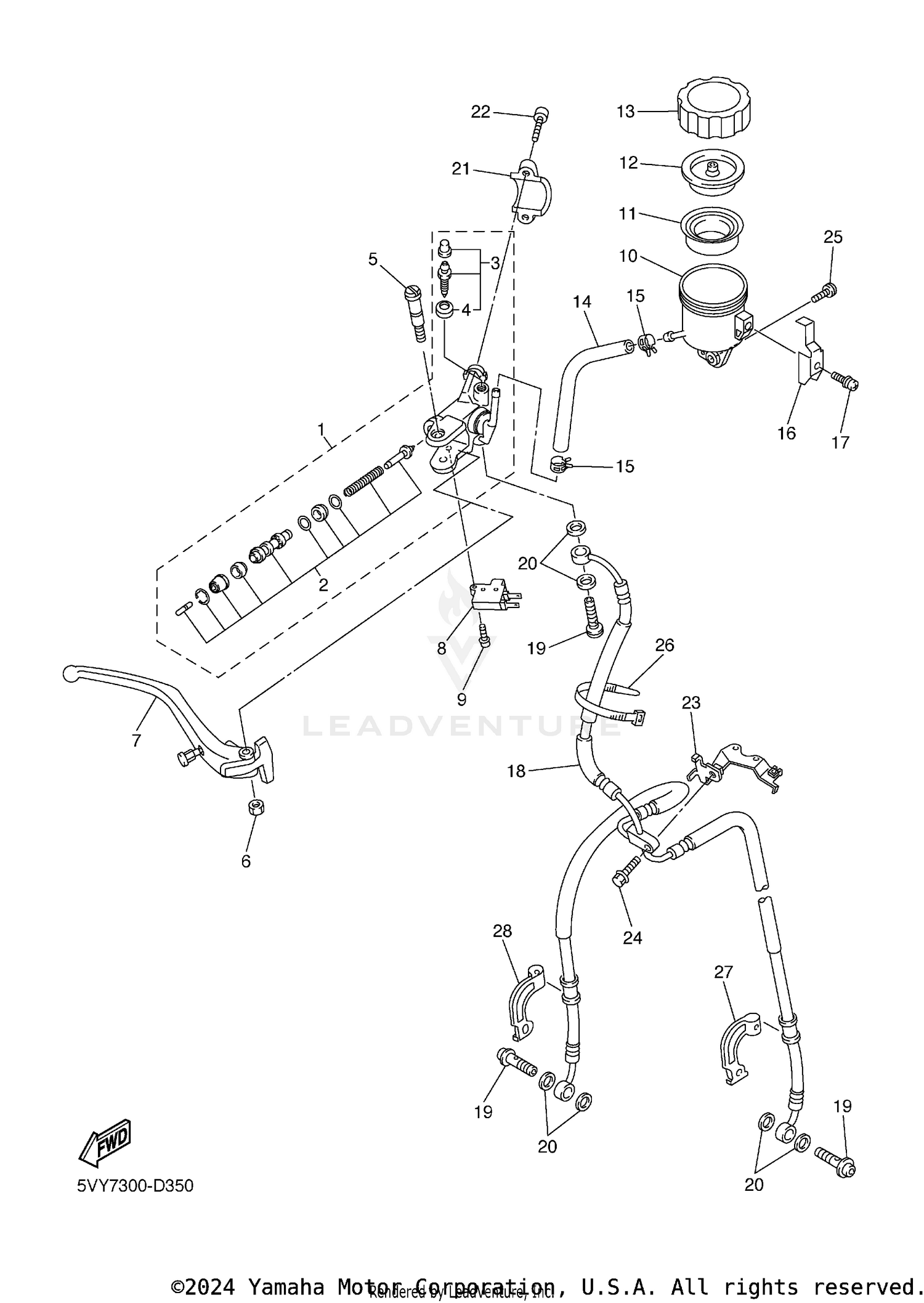

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY
5VY-W2587-10-00
|
$328.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
5VY-W0041-00-00
Superseded by 2S3-W0041-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BLEED SCREW KIT
5VY-W0048-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL 1
5VY-25975-00-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, LEVER
5VY-2589F-01-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, COVER
5VS-2586F-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER 2
5VY-83922-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FRONT STOP SWITCH ASSY
4HM-83980-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, SET
5VS-2585H-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
TANK, RESERVOIR
5SL-25894-20-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DIAPHRAGM, RESERVOIR
5VY-25854-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSH, DIAPHRAGM
5VY-25855-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, RESERVOIR
5VY-25852-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE, RESERVOIR
5VY-25895-10-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
90467-120A3-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER
5VY-2589G-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
5VY-2589H-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, BRAKE 1
5VY-25872-00-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, UNION
90401-10172-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET, MASTER CYLINDER
5VS-25867-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
5VS-26332-00-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET, HORN
5VY-23377-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
90105-06041-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEX. SOCKET BUTTON
90111-05026-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
3MA-82591-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER, BRAKE HOSE 1
5VY-25875-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOLDER, BRAKE HOSE 2
5VY-25876-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
