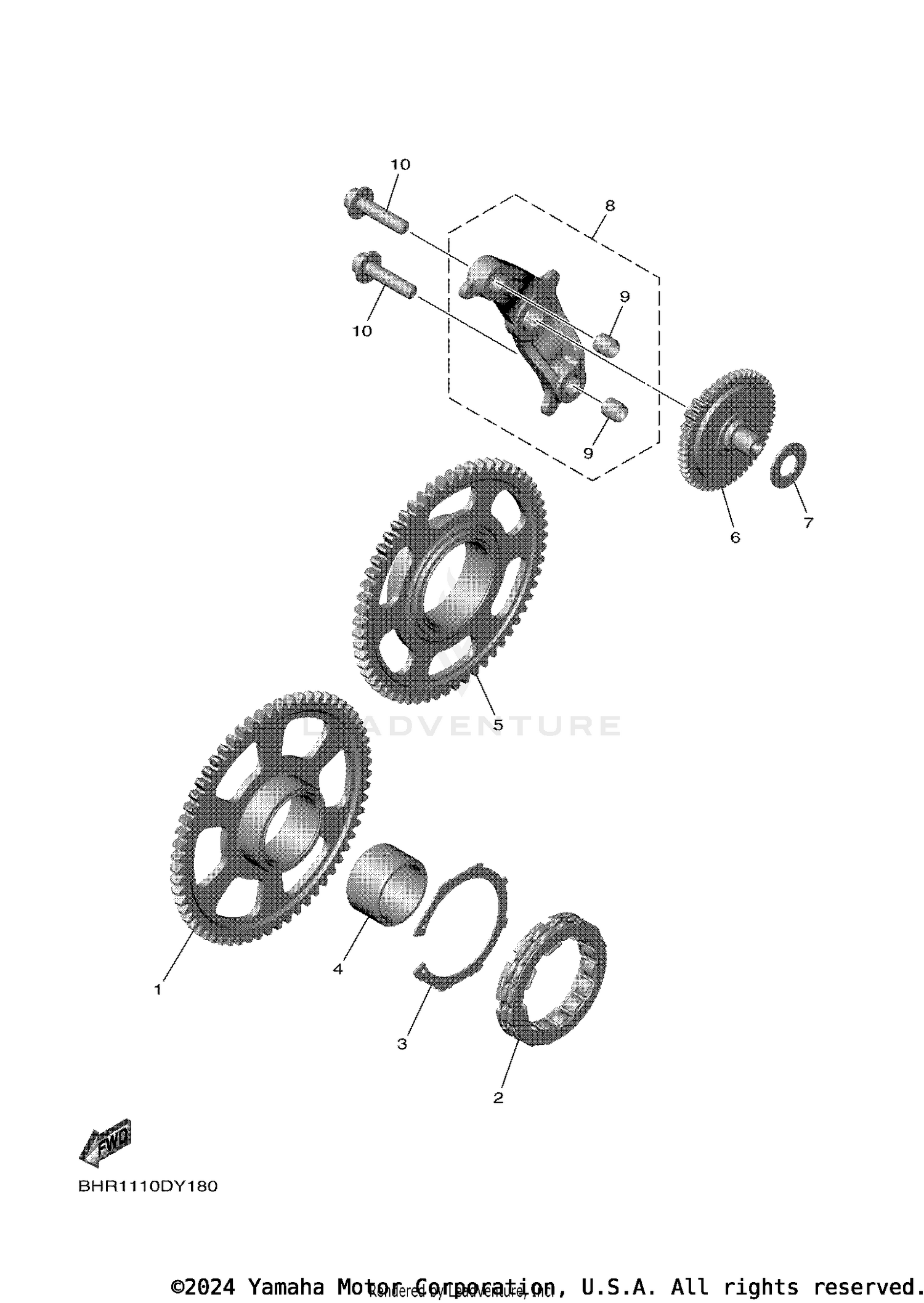

Starter Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR 3(61T)
BHR-15515-00-00
|
$191.99 | ||
|
Unavailable |
|||
|
#2
STARTER CLUTCH ASSY
BHR-15570-00-00
|
$282.99 | ||
|
Unavailable |
|||
|
#3
CLIP, STARTER
BHR-15536-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#4
COLLAR, STARTER
BHR-1571H-00-00
|
$80.99 | ||
|
Unavailable |
|||
|
#5
GEAR, IDLER 2(59T)
BHR-15517-00-00
|
$209.99 | ||
|
Unavailable |
|||
|
#6
DAMPER ASSY
BHR-15560-00-00
|
$322.99 | ||
|
Unavailable |
|||
|
#7
WASHER, PLATE
90201-10045-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER
BHR-15378-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#9
PIN, DOWEL
91810-18008-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
90110-06173-00
Superseded by 90110-06172-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
