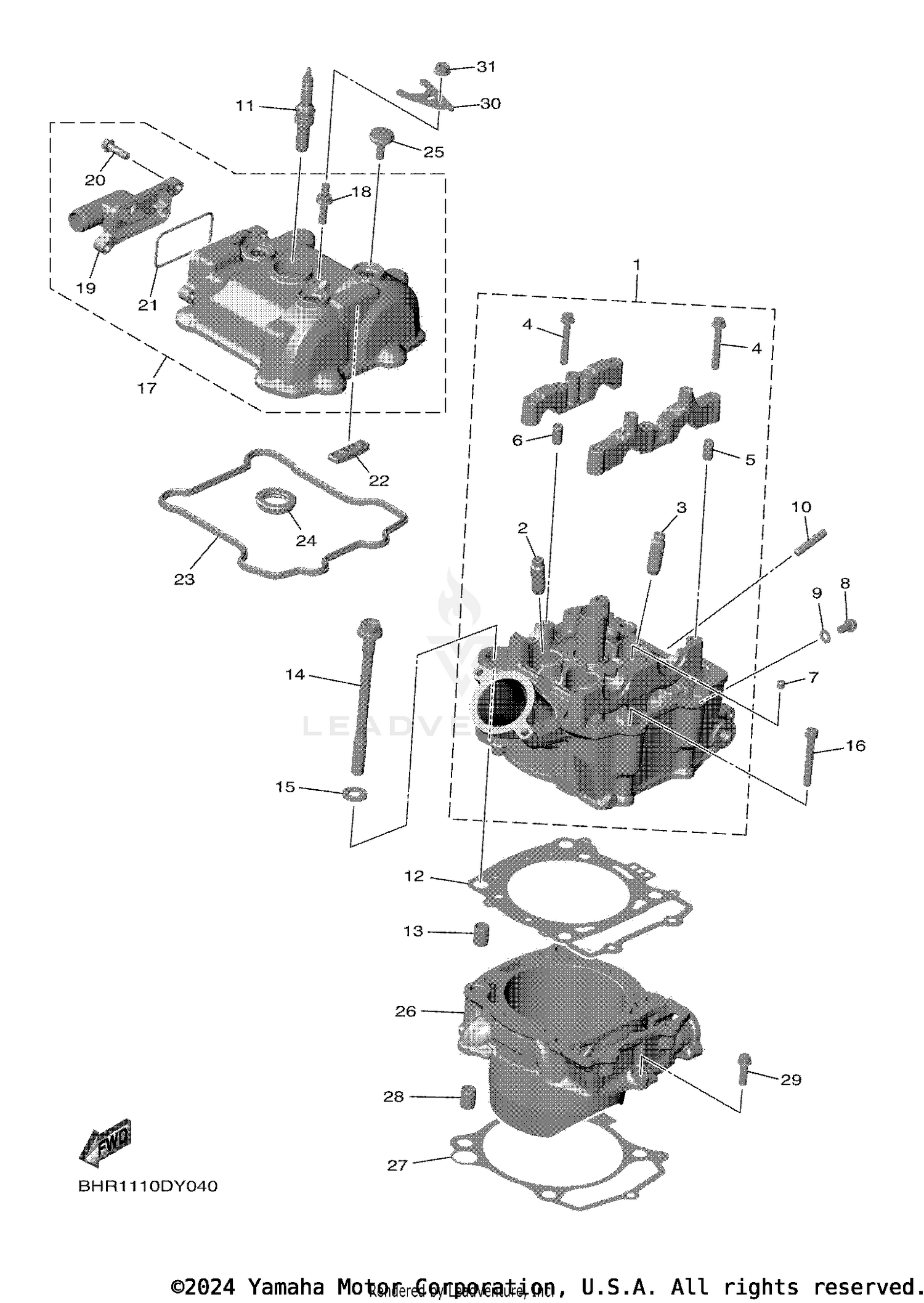

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
BHR-11102-00-00
|
$1,443.99 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE 1
B2W-11133-10-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, VALVE 2
5PS-11134-10-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-06027-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, DOWEL
91808-16023-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL
91808-16023-00
|
$7.99 | ||
|
Unavailable |
|||
|
#7
NOZZLE 1
BHR-15138-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE DEEP RE
90105-06227-00
Superseded by 95E32-06010-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, STUD
90116-06037-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
LMAR8 NGK SPLUG 10PK
LMA-R8G00-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#12
. GASKET, CYLINDER HEAD 1
BHR-11181-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, DOWEL
93612-16254-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE
90105-10494-00
|
$22.99 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90201-10025-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
90110-06176-00
Superseded by 91312-06045-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, CYLINDER HEAD 1
BHR-11190-00-00
|
$367.99 | ||
|
Unavailable |
|||
|
#18
BOLT, STUD
90116-06048-00
Superseded by 90116-06049-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, BREATHER
BDB-11168-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE DEEP RE
90105-06225-00
Superseded by 95E32-06020-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET, BREATHER C
B2W-11169-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
GUIDE, STOPPER 2
B2W-12241-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
. GASKET, HEAD COVER 1
BHR-11193-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#24
GASKET, HEAD COVER 2
1SM-11194-00-00
|
$17.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, COVER HEAD
5UM-1119E-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CYLINDER 1
BHR-11311-00-00
|
$643.99 | ||
|
Unavailable |
|||
|
#27
. GASKET, CYLINDER
BHR-11351-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN, DOWEL
93612-16254-00
|
$6.49 | ||
|
Unavailable |
|||
|
#29
BOLT, HEXAGON SOCKET HEAD
90110-06439-00
|
$3.70 | ||
|
Unavailable |
|||
|
#30
HOLDER
BR9-11395-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
