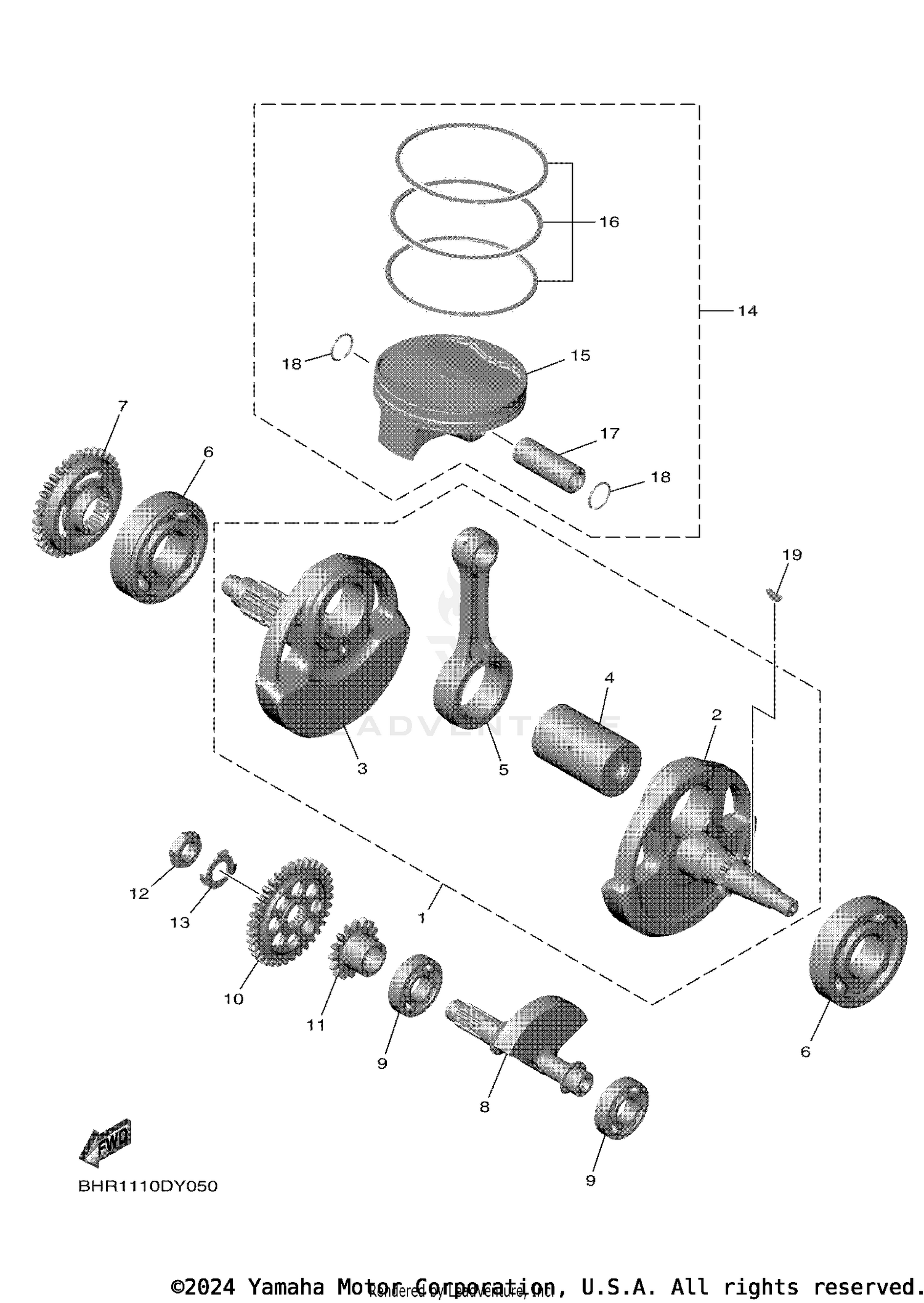

Crankshaft & Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
BHR-11400-00-00
|
$679.99 | ||
|
Unavailable |
|||
|
#2
. .CRANK 1
BHR-11412-00-00
|
$326.99 | ||
|
Unavailable |
|||
|
#3
. .CRANK 2
BHR-11422-00-00
|
$442.99 | ||
|
Unavailable |
|||
|
#4
. .PIN, CRANK 1
BHR-11681-00-00
|
$81.99 | ||
|
Unavailable |
|||
|
#5
. .CONNECTING ROD ASSY
BHR-11650-00-00
|
$134.99 | ||
|
Unavailable |
|||
|
#6
BEARING
93306-30647-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, DRIVE
BHR-11536-00-00
|
$162.99 | ||
|
Unavailable |
|||
|
#8
WEIGHT 1
BHR-11454-00-00
|
$362.99 | ||
|
Unavailable |
|||
|
#9
BEARING
93306-20351-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, BALANCE WEIGHT
BHR-11531-00-00
|
$165.99 | ||
|
Unavailable |
|||
|
#11
GEAR,OIL PUMP DRIVE SHAFT
BHR-13301-00-00
|
$81.99 | ||
|
Unavailable |
|||
|
#12
NUT
90170-14171-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
WASHER, LOCK
90215-14004-00
|
$18.49 | ||
|
Unavailable |
|||
|
#14
PISTON ASSY
BHR-116A0-00-00
|
$239.99 | ||
|
Unavailable |
|||
|
#15
. .PISTON (STD)
BHR-11631-00-00
|
$122.99 | ||
|
Unavailable |
|||
|
#16
PISTON RING SET (S
B2W-11603-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, PISTON
BR9-11633-10-00
|
$69.99 | ||
|
Unavailable |
|||
|
#18
CIRCLIP, INNER
93450-19052-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
KEY, WOODRUFF
90280-03006-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
