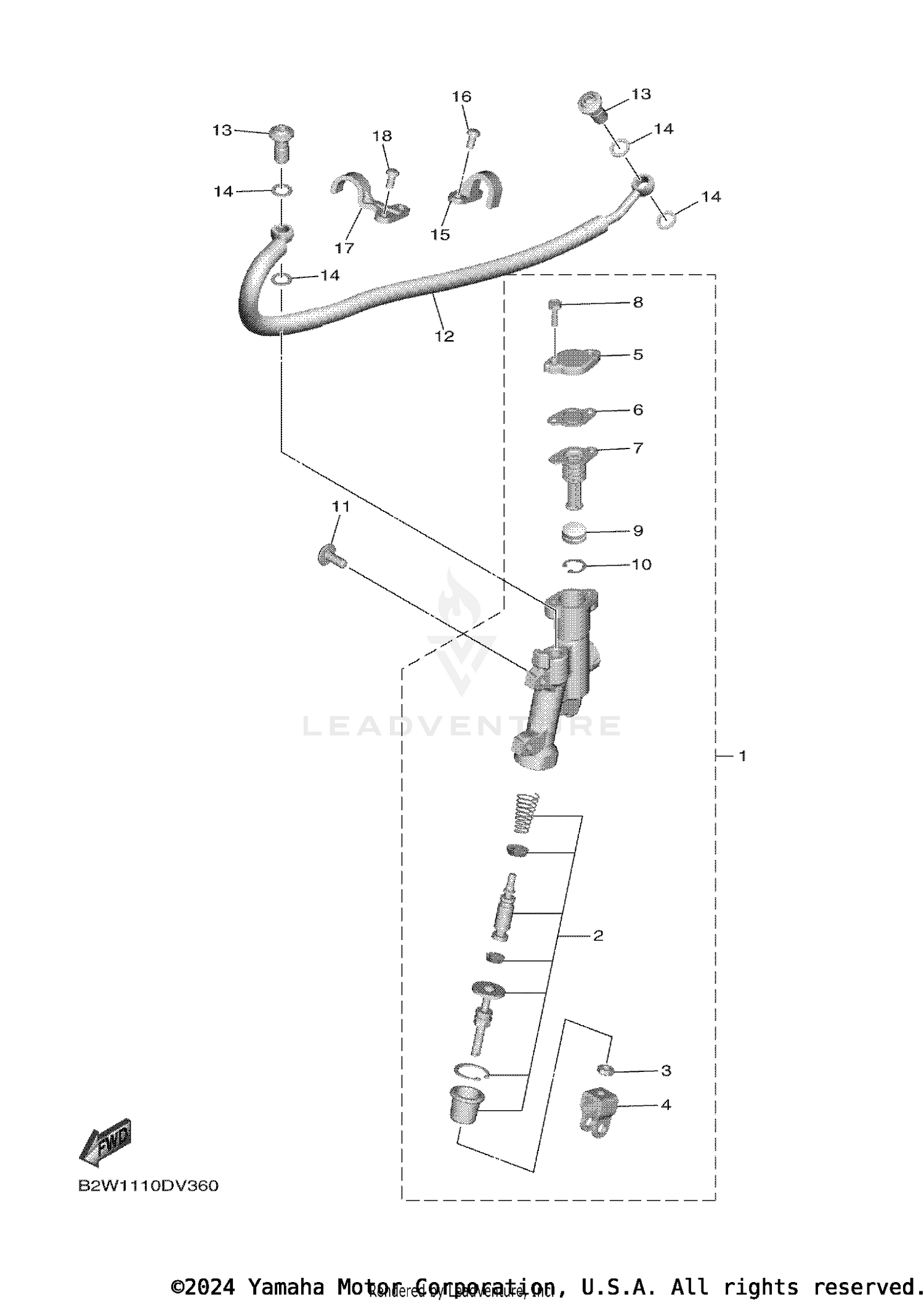

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR MASTER CYLINDER ASSY.
33D-2583V-00-00
|
$293.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
5UN-W0042-50-00
|
$97.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
NUT
5UN-27218-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
JOINT
5UN-27222-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, RESERVOIR
5UN-25852-50-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, DIAPHRAGM
5UN-2585B-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
DIAPHRAGM, RESERVOIR
5UN-25854-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
5UN-27217-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEPARATOR ASSY
5CG-25715-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
5CG-2585G-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEX. SOCKET BUTTON
90111-06116-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
HOSE, BRAKE 2
BHR-25873-00-00
Superseded by BHR-25873-01-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, UNION
90401-10172-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
90430-10005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, BRAKE HOSE
1C3-25886-50-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98502-05010-00
Superseded by 98517-05010-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER, BRAKE HOSE 2
1C3-25876-50-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98502-05010-00
Superseded by 98517-05010-00
|
$4.60 | ||
|
Unavailable |
|||
