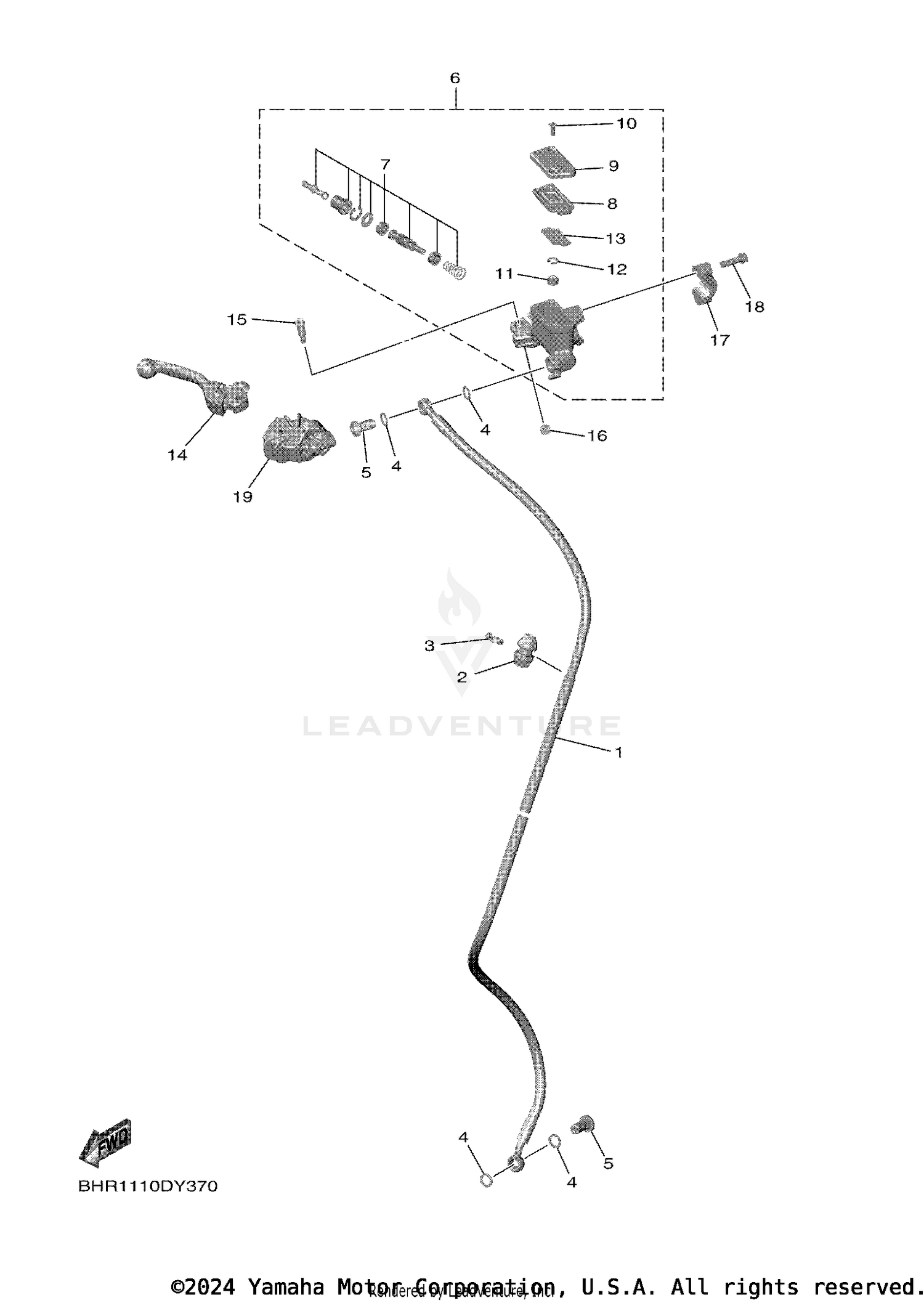

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, BRAKE 1
BHR-25872-00-00
|
$240.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PROTECTOR, BRAKE HOSE
BHR-25881-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#3
CLAMP
90465-10098-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
90430-10005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, UNION
90401-10172-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
MASTER CYLINDER SUB ASSY
5XC-W2587-00-00
|
$320.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CYLINDER KIT, MASTER
5XC-W0041-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DIAPHRAGM, RESERVOIR
5XC-25854-G0-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, RESERVOIR
5XC-25852-G0-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, FLAT HEAD
98707-04012-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SEPARATOR ASSY
5CG-25715-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
5CG-2585G-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FLOAT, RESERVOIR
5XC-25853-G0-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
LEVER 2
B2W-83922-00-00
|
$46.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, LEVER
5MV-2589F-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BRACKET, MASTER CYLINDER
5MV-25867-00-00
|
$22.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FITTING
5MV-25833-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
COVER, HANDLE LEVER 1
5XC-26372-G0-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
