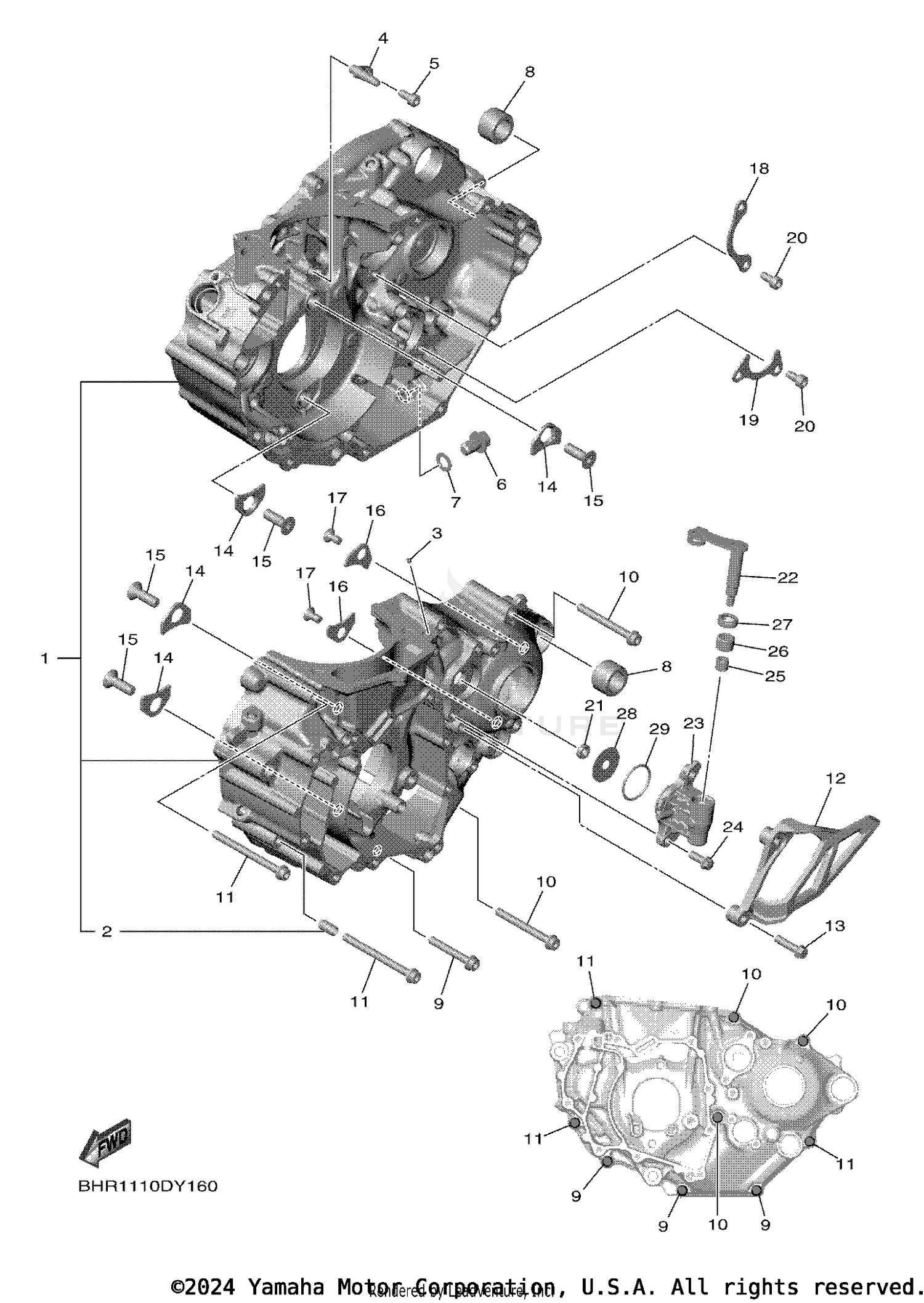

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
BHR-15100-09-00
Superseded by BHR-15100-08-00
|
$1,786.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99530-08016-00
Superseded by 91808-16023-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NOZZLE 2
BHR-15148-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#4
NOZZLE 3
BHR-15155-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#5
BOLT
90110-06182-00
Superseded by 91317-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE DEEP RE
95E32-10016-00
|
$1.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
GASKET
90430-10188-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
COLLAR
90387-17020-00
|
$19.49 | ||
|
Unavailable |
|||
|
#9
BOLT, HEXAGON SOCKET HEAD
90110-06391-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
90110-06363-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
90110-06392-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, CRANKCASE 2
BHR-15421-00-00
Superseded by BHR-15421-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
90105-06189-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, BEARING COVER
18P-15383-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, COUNTERSUNK
90151-08009-00
Superseded by 90151-08003-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, BEARING COVER
4JT-15381-01-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
90151-06053-00
Superseded by 90151-06052-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, BEARING COVER
5NL-15388-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, STOPPER 2
33D-18562-00-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
90110-06182-00
Superseded by 91317-06012-00
|
$9.49 | ||
|
Unavailable |
|||
|
#21
OIL SEAL, SO-TYPE
93104-06033-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PUSH LEVER COMP.
BHR-16381-00-00
|
$80.99 | ||
|
Unavailable |
|||
|
#23
PIECE, CLUTH PUSH
BHR-16386-00-00
|
$93.99 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE
90105-06187-00
Superseded by 95022-06016-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING
93317-106B4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING
93317-11096-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
OIL SEAL
93102-10008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-08037-00
|
$5.00 | ||
|
Unavailable |
|||
|
#29
O-RING
93210-28543-00
|
$3.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
