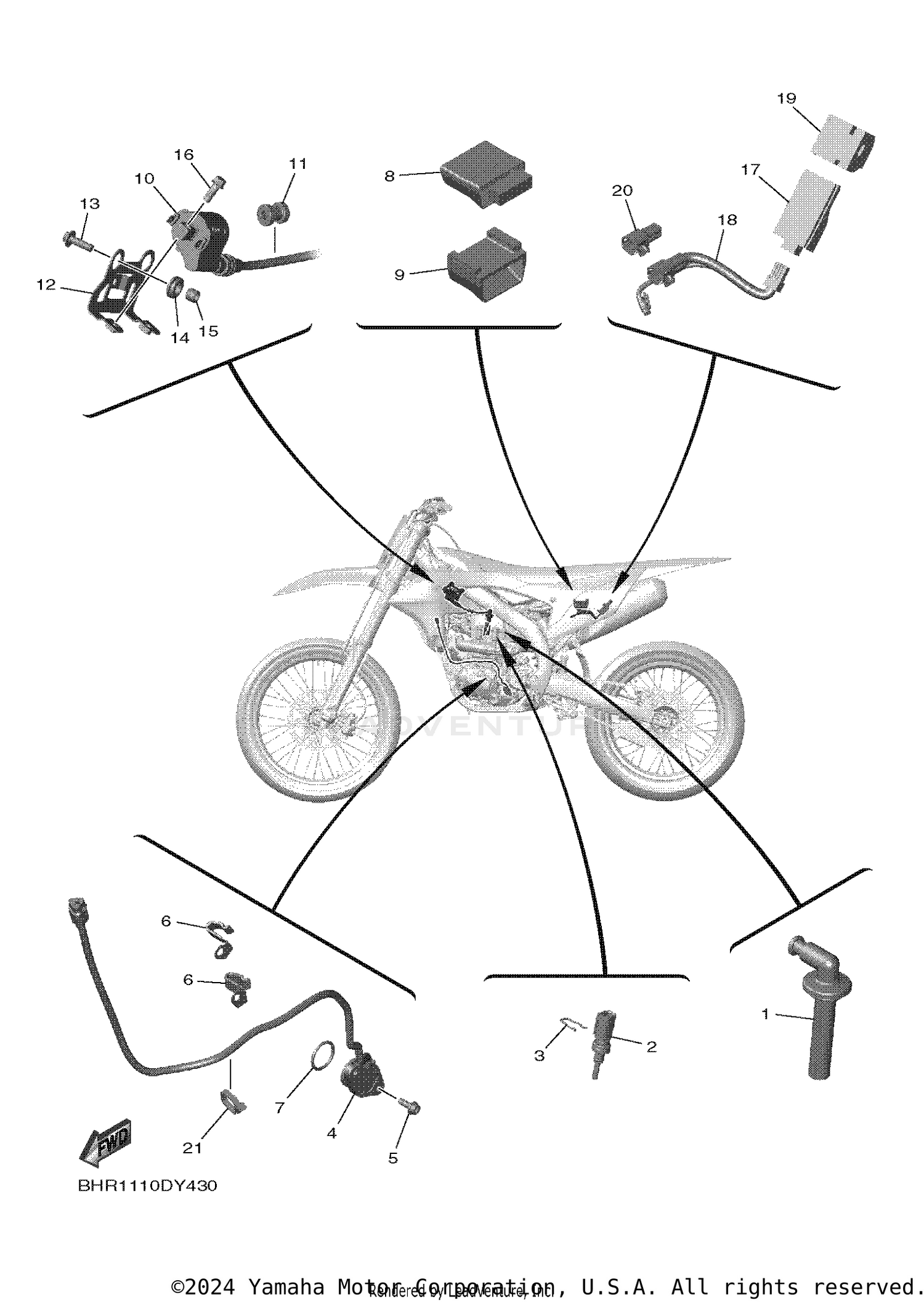

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLUG CAP ASSY
B2W-82370-00-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
THERMO UNIT
BHR-83591-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#3
CLIP
BHR-83525-00-00
|
$2.40 | ||
|
Unavailable |
|||
|
#4
NEUTRAL SWITCH ASSY
BHR-82540-00-00
Superseded by BHR-82540-01-00
|
$80.99 | ||
|
Unavailable |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
90110-05062-00
Superseded by 90110-05028-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CLAMP 2
BHR-15484-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#7
O-RING
93210-21001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
ENGINE CONTROL UNIT ASSY
BHR-8591A-00-00
|
$533.99 | ||
|
Unavailable |
|||
|
#9
BAND
BHR-82155-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#10
IGNITION COIL ASSY
BHR-82310-00-00
|
$86.99 | ||
|
Unavailable |
|||
|
#11
GROMMET
90480-11015-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY, IGNITION COIL
BHR-2194U-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE
90105-06219-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
90480-13025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-066J9-00
Superseded by 90387-07573-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE DEEP RECESS
95E32-06016-00
|
$0.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
COMMUNICATION CONT. UNIT ASSY
BHR-85810-00-00
Superseded by D03-85810-00-00
|
$886.99 | ||
|
Unavailable |
|||
|
#18
WIRE, LEAD
BHR-85721-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#19
BAND
BHR-85546-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#20
CONNECTOR
BHR-82378-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#21
CLAMP
90465-10098-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
