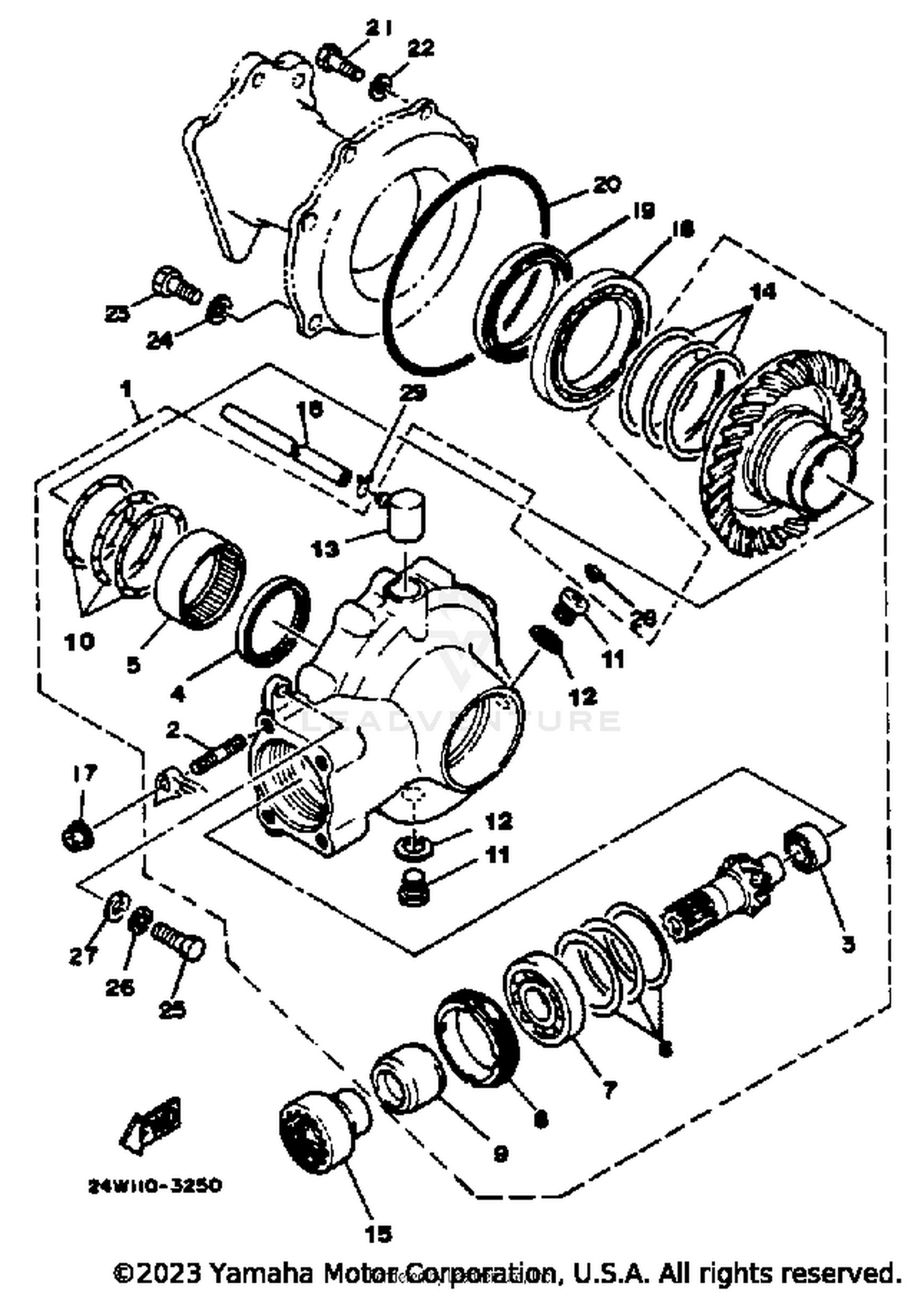

Drive Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR AXLE GEAR CASE
24W-46101-01-00
|
$801.99 | ||
|
Unavailable |
|||
|
#2
BOLT, STUD
90116-08360-00
Superseded by 95617-08620-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING ASSY
24W-46102-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93101-52116-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93317-85569-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM, THRUST (0.50T)
1J7-17537-Y0-50
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM, THRUST (0.30T)
1J7-17537-Y0-30
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM, THRUST (0.40T)
1J7-17537-Y0-40
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93306-30539-00
Superseded by 93306-30533-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RETAINER, BEARING
24W-46125-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#9
COLLAR
90387-255H9-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, THRUST (2.0T)
24W-46118-00-20
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, THRUST (1.8T)
24W-46118-00-18
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, THRUST (1.6T)
24W-46118-00-16
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, THRUST (1.4T)
24W-46118-00-14
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, THRUST (1.2T)
24W-46118-00-12
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG, STRAIGHT SCREW
90340-14046-00
Superseded by 90340-14002-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
214-11198-01-00
|
$3.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BREATHER
2H7-17591-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM, RING GEAR (0.25T)
24W-46117-00-25
|
$6.49 | ||
|
Unavailable |
|||
|
#14
SHIM, RING GEAR (0.50T)
24W-46117-00-50
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM, RING GEAR (0.40T)
24W-46117-00-40
|
$6.49 | ||
|
Unavailable |
|||
|
#14
SHIM, RING GEAR (0.30T)
24W-46117-00-30
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COUPLING,GEAR
24W-46123-00-00
|
$55.97 | ||
|
Unavailable |
|||
|
#16
HOSE (L1700)
90445-07745-00
Superseded by 90445-070G6-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING
93316-01301-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL
93102-65277-00
|
$18.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
O-RING
93211-44348-00
|
$20.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, KICK CRANK
97013-08025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
97011-10025-00
Superseded by 97017-10025-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER, PLATE
92990-10600-00
|
$3.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT,WITH WASHER
97023-10035-00
Superseded by 97070-10035-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92990-10100-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER, PLATE
92990-10600-00
|
$3.00 | ||
|
Unavailable |
|||
|
#28
CAP, BOLT
341-23469-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP
90467-07029-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
