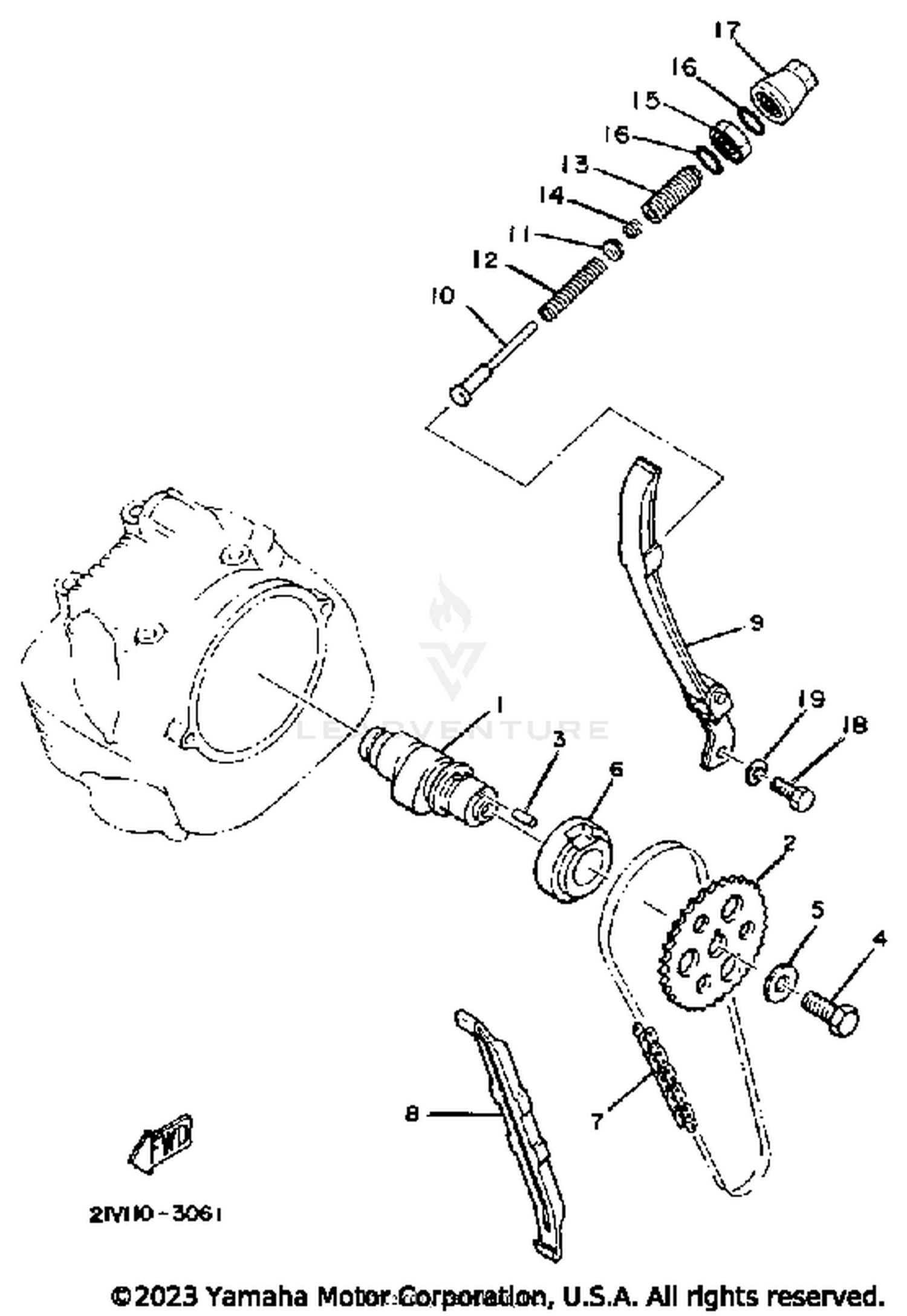

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT 1
5N0-12171-01-00
Superseded by 5N0-12171-11-00
|
$140.99 | ||
|
Unavailable |
|||
|
#2
SPROCKET, CAM CHAIN (40T)
5H0-12176-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
93604-10011-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BOLT
90101-10303-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-10774-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-255F3-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CHAIN (DID25SH 104L)
94580-41104-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE, STOPPER 1
5H0-12231-00-00
Superseded by 5H0-12231-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, STOPPER 2
5N0-12241-00-00
Superseded by 5N0-12241-01-00
|
$62.99 | ||
|
Unavailable |
|||
|
#10
ROD, CHAIN TENSIONER
25A-12217-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER
3Y1-12232-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, COMPRESSION
90501-10587-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
90149-14182-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, COMPRESSION
90501-22721-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
90179-14298-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
93210-16629-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CASE, CHAIN TENSIONER
3Y1-12212-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-061A5-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
