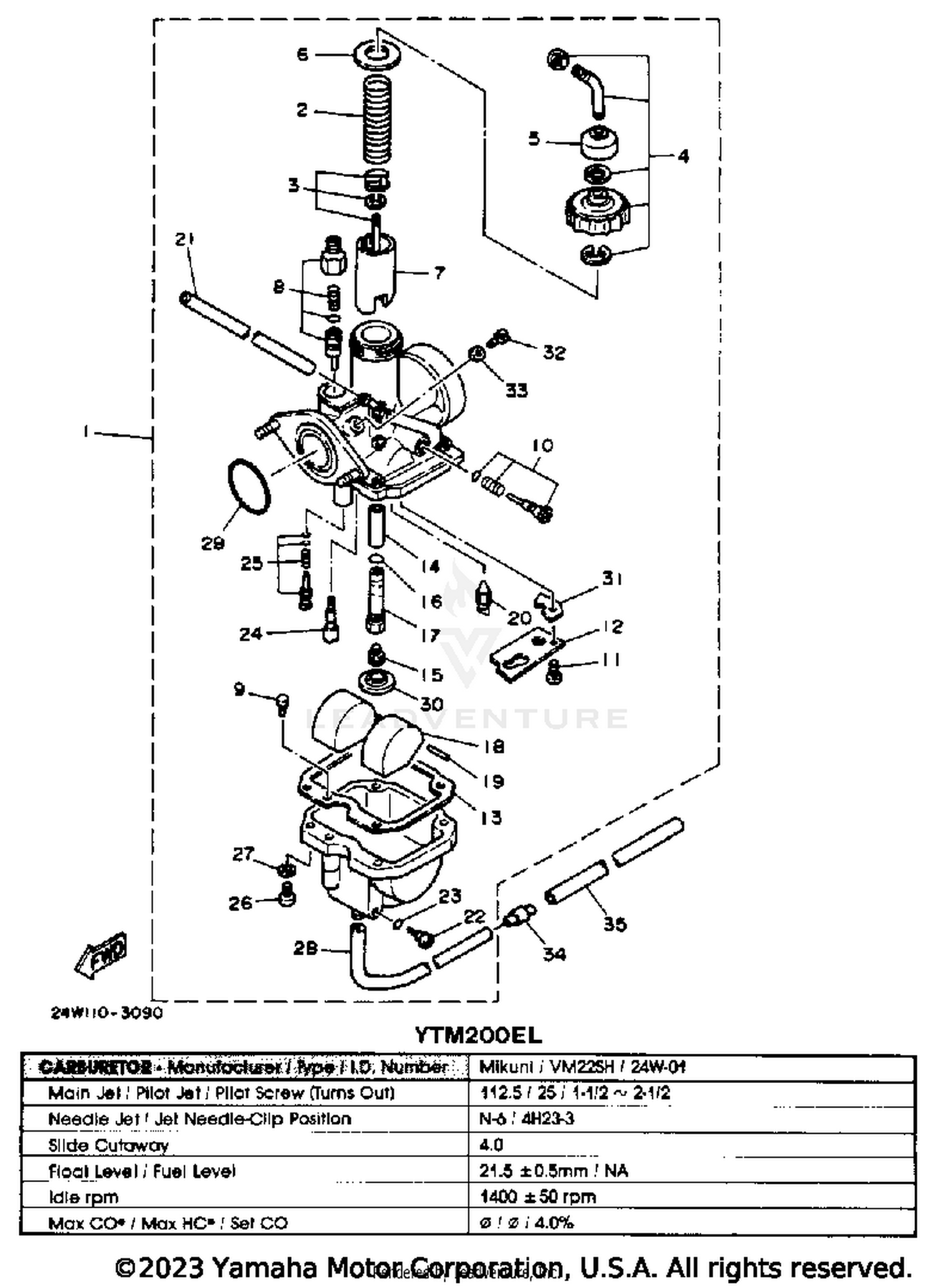

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY 1
24W-14101-01-00
Superseded by 24W-14101-02-00
|
$403.99 | ||
|
Unavailable |
|||
|
#2
SPRING, THROTTLE VALVE
21V-14131-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NEEDLE SET
24W-1490J-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#4
CABLE ADJUST SCREW SET
10X-14106-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP
1M1-14169-00-00
Superseded by 3X3-14169-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
4U5-14126-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
VALVE, THROTTLE 1
24W-14112-40-00
|
$37.13 | ||
|
Unavailable |
|||
|
#8
STARTER SET
21V-1410A-00-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
JET, STARTER
18M-14144-13-00
|
$19.49 | ||
|
Unavailable |
|||
|
#9
JET, STARTER
18M-14144-17-00
|
$3.36 | ||
|
Unavailable |
|||
|
#10
THROTTLE SCREW SET
23L-14103-00-00
Superseded by 4AC-14103-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD (98501-03008-00
98580-03008-00
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PLATE
21V-14146-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, FLOAT CHAMBER
24W-14184-00-00
|
$24.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
NOZZLE, MAIN
21V-14141-26-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
JET, MAIN (112.5)
620-1423A-73-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
583-14561-00-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
JET, HOLDER
21V-14148-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
FLOAT
21V-14185-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, FLOAT
127-14186-00-00
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
NEEDLE VALVE ASSY
21V-14190-18-00
Superseded by 5HH-14190-18-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE
90445-084A7-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLUG, DRAIN
12R-14191-00-00
|
$17.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
O-RING
214-14147-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
JET, PILOT #25
3H1-14142-25-00
|
$5.99 | ||
|
Unavailable |
|||
|
#25
PILOT SCREW SET
21V-14105-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$3.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIPE
90445-08619-00
Superseded by 90445-084J0-00
|
$20.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
O-RING
24W-14147-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, MAIN JET
5V7-14153-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLATE
24W-14146-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#32
PLUG, SCREW
341-14991-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLUG SCREW
584-14956-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#34
PIPE
24W-14193-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOSE
91A20-07010-00
Superseded by 91A21-07020-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
