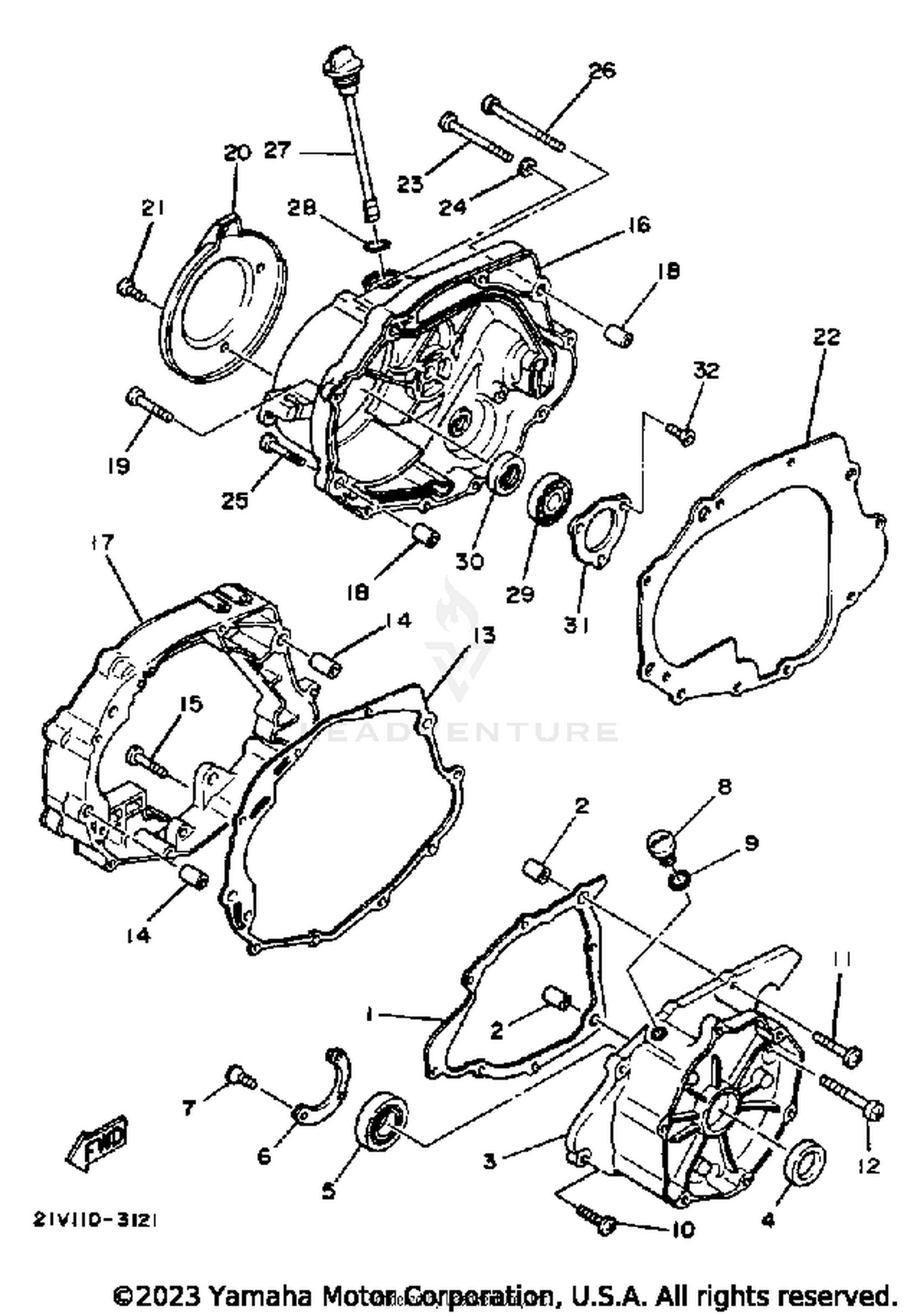

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, CRANKCASE COVER 1
4BD-15451-00-00
Superseded by 4BD-15451-01-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
ADAPTOR
24W-15787-00-00
Superseded by 29U-15787-00-00
|
$141.99 | ||
|
Unavailable |
|||
|
#4
OIL SEAL
93103-28141-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-20547-00
Superseded by 93306-07801-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, THRUST
21V-15719-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, COUNTERSUNK
90151-05031-00
Superseded by 90151-05023-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG, STRAIGHT SCREW
90340-14079-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-14369-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98506-06040-00
Superseded by 98507-06040-00
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98506-06060-00
Superseded by 98507-06060-00
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
GASKET, CRANKCASE COVER 3
4BD-15462-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.89 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD (90501-06040-00
98580-06040-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER,CRANKCASE 3
21V-15431-00-00
Superseded by 99999-02617-00
|
$221.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER, ENGINE
21V-15317-00-00
Superseded by 21V-15317-01-00
|
$97.99 | ||
|
Unavailable |
|||
|
#18
SPACER, ENGINE
21V-15317-00-00
Superseded by 21V-15317-01-00
|
$97.99 | ||
|
Unavailable |
|||
|
#18
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.89 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN HEAD
98506-06040-00
Superseded by 98507-06040-00
|
$3.22 | ||
|
Unavailable |
|||
|
#20
PROTECTOR, COVER
21V-15499-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, BIND
98906-06014-00
Superseded by 98907-06014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET, COVER PINION 2
4BD-15463-00-00
Superseded by 4BD-15463-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98506-06070-00
Superseded by 98507-06070-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SCREW, PAN HEAD
98506-06040-00
Superseded by 98507-06040-00
|
$3.22 | ||
|
Unavailable |
|||
|
#26
SCREW, PAN HEAD
98506-06080-00
Superseded by 98507-06080-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLUG, OIL LEVEL
1UY-15362-01-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING
93210-19123-00
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BEARING
93306-20326-00
Superseded by 93306-20335-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL SEAL
93101-17113-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLATE, BEARING COVER
21V-15381-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#32
SCREW, COUNTER SUNK
90151-06025-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
