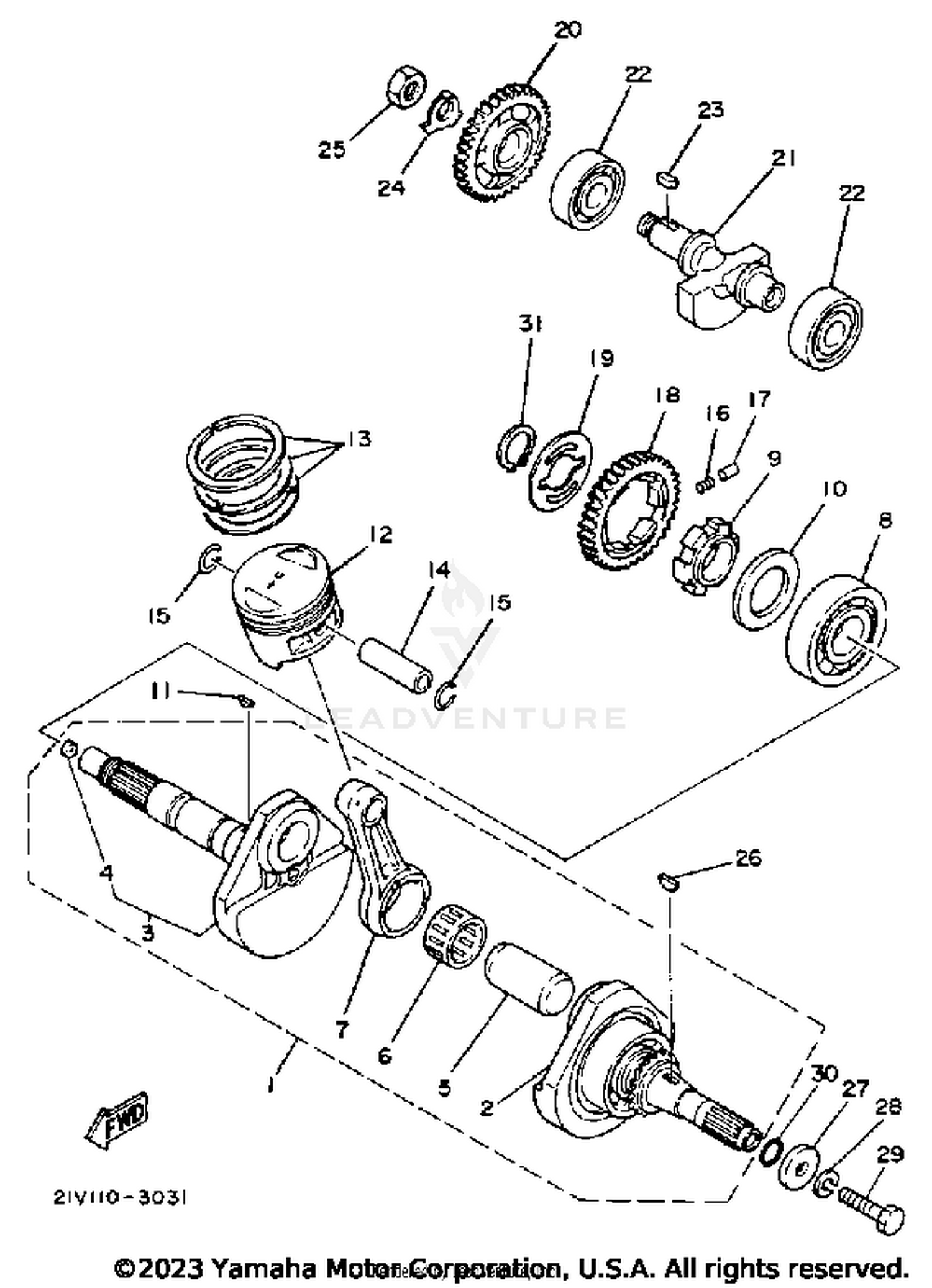

Crankshaft-piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
99999-01952-00
|
$447.99 | ||
|
Unavailable |
|||
|
#2
CRANK 1
24W-W1141-00-00
|
$387.99 | ||
|
Unavailable |
|||
|
#3
CRANK 2
21V-11422-00-00
Superseded by 99999-01950-00
|
$147.99 | ||
|
Unavailable |
|||
|
#4
PLUG
90331-09041-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, CRANK 1
5H0-11681-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93310-530J3-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROD, CONNECTING
15A-11651-00-00
|
$146.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING (B6306)
93306-30615-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOSS, BUFFER (21V-11496-00)
59V-11496-00-00
|
$55.99 | ||
|
Unavailable |
|||
|
#10
WASHER, PLATE
90201-406F4-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
KEY, WOODRUFF
90280-03017-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PISTON 2 O/S 0.50
21V-11636-00-00
|
$109.99 | ||
|
Unavailable |
|||
|
#12
PISTON (STD)
21V-11631-00-Y0
|
$109.99 | ||
|
Unavailable |
|||
|
#12
PISTON 4 O/S 1.00
21V-11638-00-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PISTON RING SET (STD)
21V-11610-01-00
Superseded by 15A-11603-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PISTON RING SET (0.50MM O/S)
21V-11610-20-00
Superseded by 15A-11605-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PISTON RING SET (1.00MM O/S)
21V-11610-40-00
Superseded by 15A-11607-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, PISTON
58L-11633-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
93450-17044-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SPRING, COMPRESSION
90501-21133-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, DOWEL
93605-10090-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
GEAR, DRIVE (38T)
5H0-11536-00-00
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-266F5-00
|
$5.49 | ||
|
Unavailable |
|||
|
#20
GEAR, BALANCE WEIGHT (38T)
5H0-11531-00-00
|
$183.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WEIGHT 1
15A-11454-00-00
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING (B6304A3)
93306-30427-00
Superseded by 93306-30443-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
KEY, STRAIGHT
90282-05013-00
Superseded by 90282-05065-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER, LOCK
90215-14185-00
Superseded by 90215-14205-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
NUT
90170-14284-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
KEY, WOODRUFF
90280-16053-00
Superseded by 90280-05001-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-107F8-00
Superseded by 90201-10058-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SPRING
92990-10100-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT
90101-10568-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING
93210-16290-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
CIRCLIP
99009-26400-00
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
