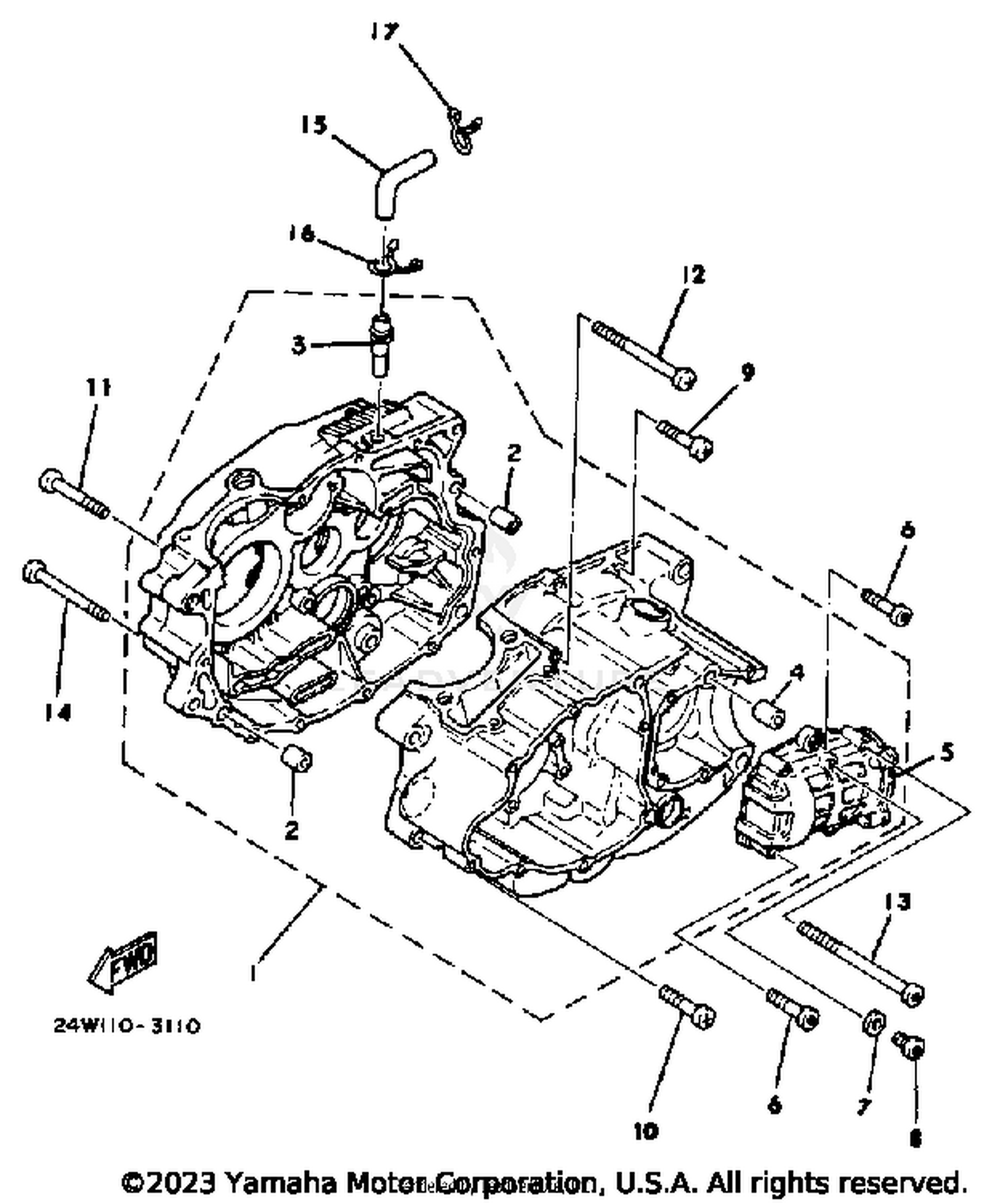

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASY
24W-15100-00-00
|
$332.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE, BREATHER 2
371-11167-01-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
COVER,GENERATOR
24W-15415-09-00
|
$85.99 | ||
|
Unavailable |
|||
|
#6
BOLT
91316-06035-00
Superseded by 91317-06035-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-063F3-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
91316-06012-00
Superseded by 91317-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98580-06030-00
Superseded by 97885-06030-00
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD (90501-06040-00
98580-06040-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD (92580-06560-00
92580-06560-00
Superseded by 98580-06560-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98511-06085-00
Superseded by 98507-06085-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
91316-06160-00
Superseded by 91317-06160-00
|
$20.99 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN HEAD
98501-06075-00
Superseded by 98580-06575-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE,BREATHER 1
21V-11166-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#16
CLIP
90467-15012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
90467-15054-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
