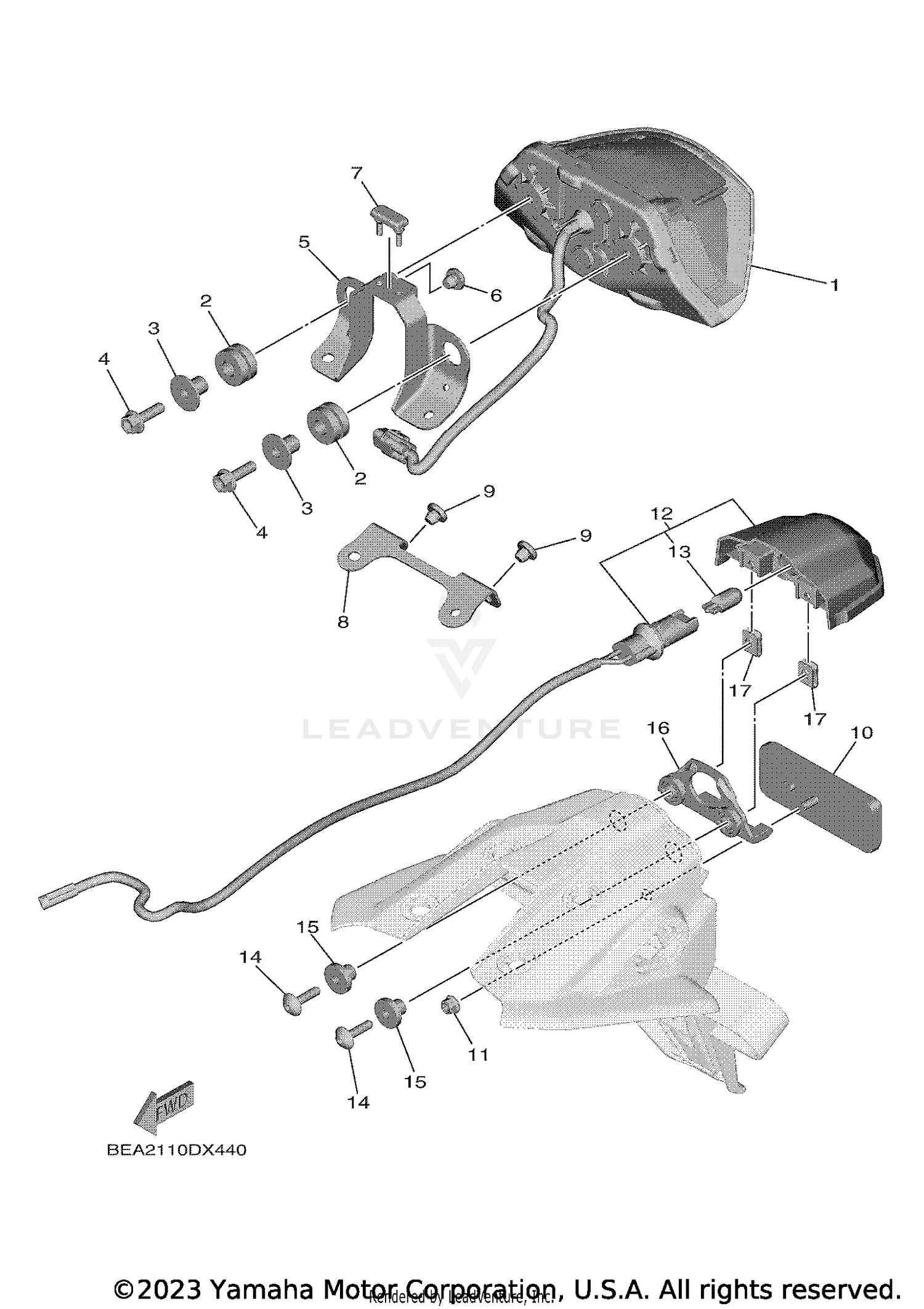

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT ASSY
BEA-84700-10-00
|
$253.99 | ||
|
Unavailable |
|||
|
#2
GROMMET
90480-14229-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
90387-06042-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE DEEP RECESS
95D32-06020-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, TAILLIGHT
BEA-2117E-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#6
PLUG
90338-07157-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
STOPPER, UPPER MOU
682-44532-01-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET 10
BEA-2116M-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#9
PLUG
90338-07157-00
|
$8.49 | ||
|
Unavailable |
|||
|
#10
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, U FLANGE
95602-05200-00
Superseded by 95607-05200-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
LICENCE LIGHT UNIT ASSY
2PN-84745-01-00
Superseded by 2PN-84745-02-00
|
$45.99 | ||
|
Unavailable |
|||
|
#13
BULB (12V-5W)
5DM-84347-00-00
Superseded by 4SV-84347-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEX. SOCKET BUTTON
90111-05026-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-05044-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER
B5U-21649-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
