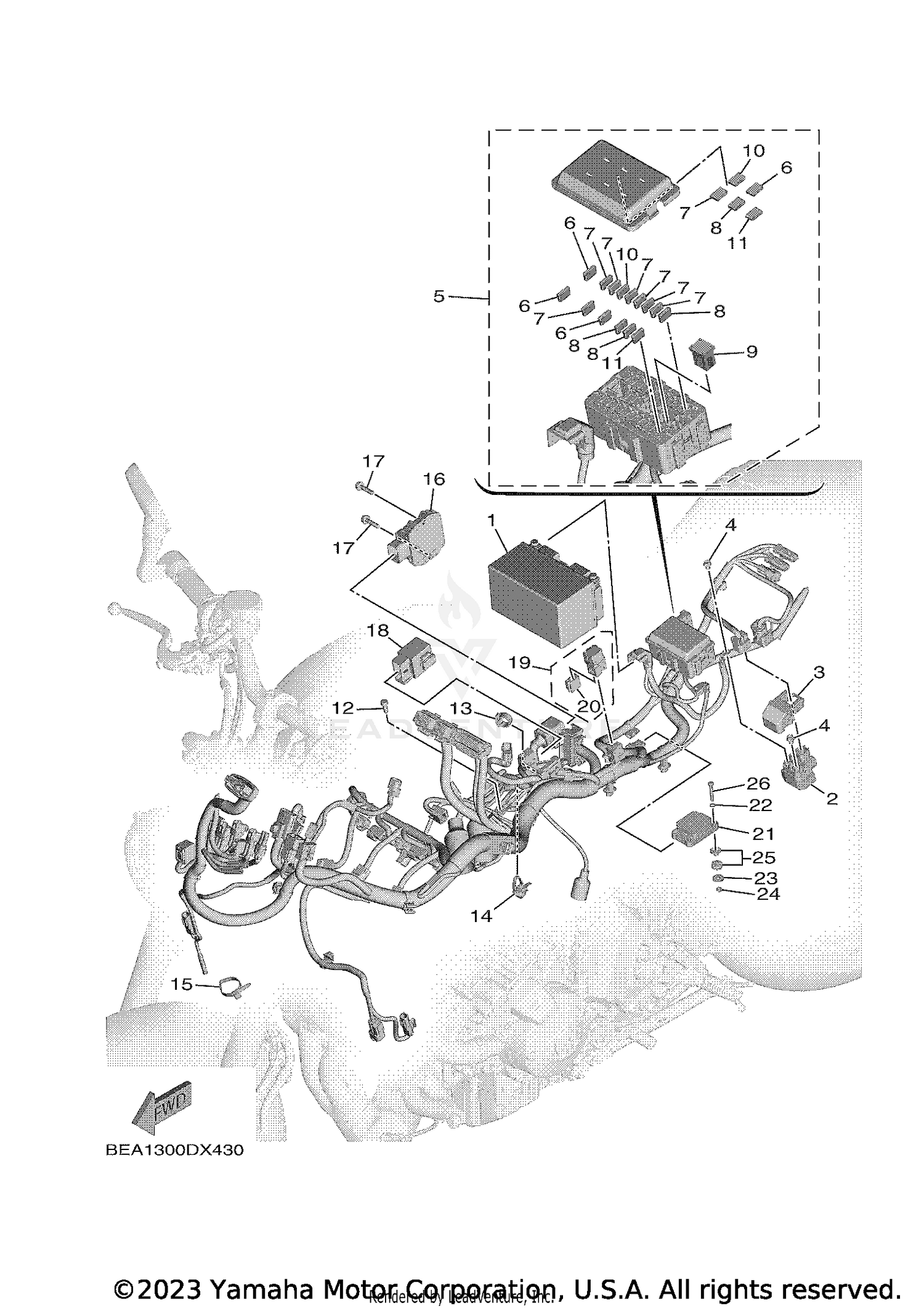

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BATTERY ASSY
5VY-82100-01-00
Superseded by 5VY-82100-02-00
|
$263.99 | ||
|
Unavailable |
|||
|
#2
STARTER RELAY ASSY
B7N-81940-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, LEAD WIRE
5SL-82119-30-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT FLANGE
90105-06230-00
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
WIRE HARNESS ASSY
BEA-82590-10-00
Superseded by BEA-82590-11-00
|
$1,265.99 | ||
|
Unavailable |
|||
|
#5
WIRE HARNESS ASSY
BEA-82590-60-00
Superseded by BEA-82590-61-00
|
$1,265.99 | ||
|
Unavailable |
|||
|
#6
FUSE (2A)
B7N-82151-80-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
FUSE (7.5A)
B7N-82151-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUSE (15A)
B7N-82151-10-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUSE
B7N-82151-B0-00
Superseded by B7N-82151-B1-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUSE (10A)
B7N-82151-30-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUSE (30A)
B7N-82151-60-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
91312-06016-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CLAMP
90464-16003-00
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90464-25009-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#16
RECTIFIER & REGULATOR ASSY
2CR-81960-00-00
Superseded by 2CR-81960-01-00
|
$183.99 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE DEEP RECESS
95D37-06025-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
RELAY ASSY (G8R-30Y-W4)
5VK-81950-41-00
Superseded by 5VK-81950-43-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
RELAY ASSY (1TP-00)
1TP-81950-00-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
HOLDER, RELAY
5EA-81952-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
INERTIAL MEASURE, UNIT ASSY
BEA-8593A-00-00
Superseded by BEA-8593A-01-00
|
$464.99 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
92902-04600-00
Superseded by 92990-04600-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER PLATE
90201-04034-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, U
95607-04100-00
Superseded by 95617-04100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
GROMMET AND COLLAR SET
B7N-W8A8D-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#26
BOLT
91317-04030-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
