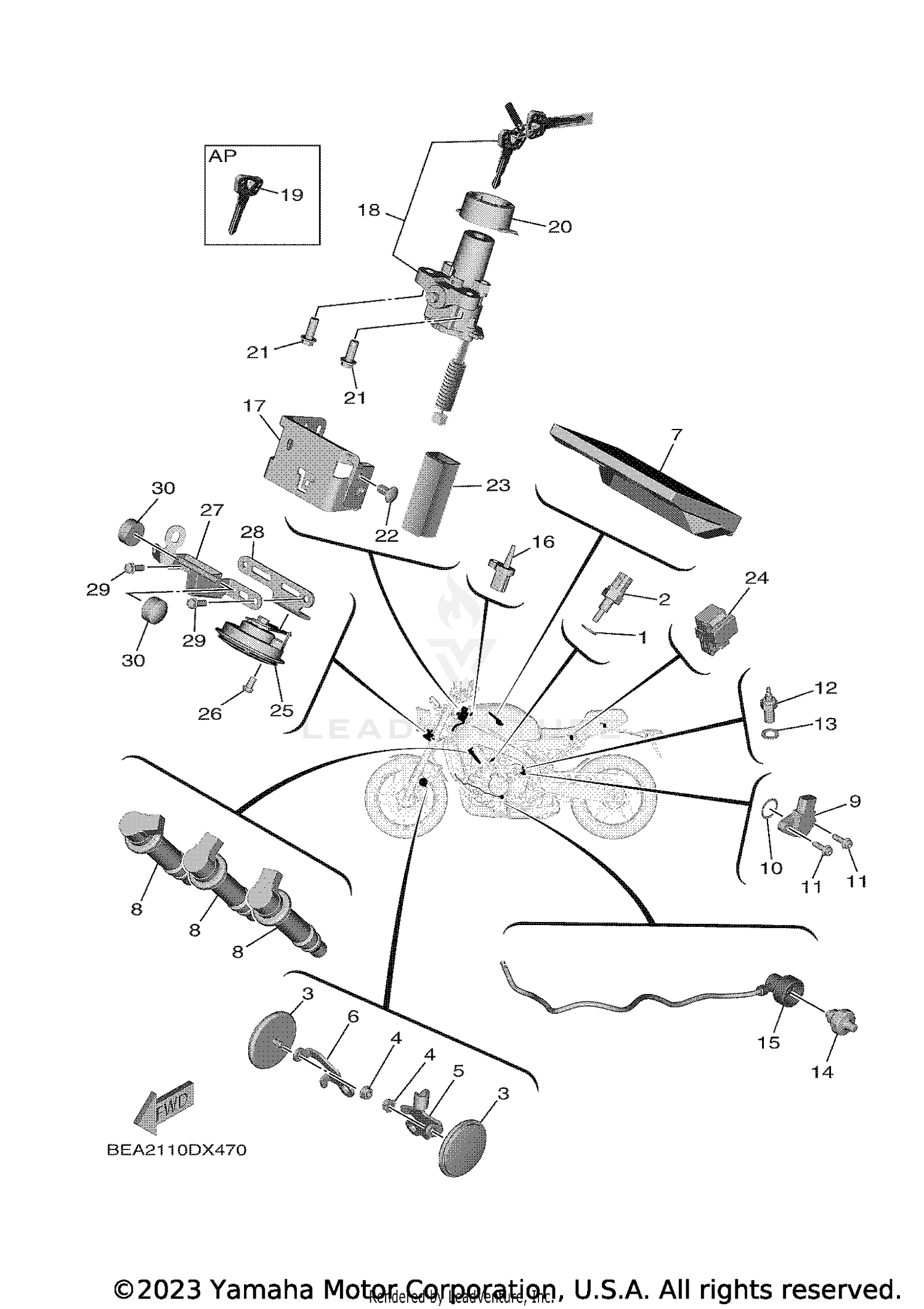

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET
90430-10004-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
THERMO UNIT
4P9-83591-00-00
Superseded by 52B-H3591-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
REFLECTOR, FRONT 1
4AG-85111-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BRACKET, REFLECTOR
B7N-85112-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, REFLECTOR
B7N-85122-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
ENGINE CONTROL UNIT ASSY
BEA-8591A-60-00
|
$1,162.99 | ||
|
Unavailable |
|||
|
#7
ENGINE CONTROL UNIT ASSY
BEA-8591A-10-00
Superseded by BEA-8591A-11-00
|
$1,294.99 | ||
|
Unavailable |
|||
|
#8
IGNITION COIL ASSY
1WS-82310-00-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SENSOR, GEAR POSITION
2CR-85899-10-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
93210-17008-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
90110-05067-00
Superseded by 90110-05038-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$63.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
GASKET
90430-10148-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
OIL PRESSURE SWITCH ASSY
1WS-82504-00-00
Superseded by 1WS-82504-01-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WIRE, SUB LEAD
B3L-82509-11-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SENSOR, AIR TEMPERATURE
5YU-85886-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, CONNECTOR
B7N-82599-01-00
|
$3.90 | ||
|
Unavailable |
|||
|
#18
MAIN SWITCH STEERI
BEA-82501-10-00
Superseded by BEA-82501-11-00
|
$177.99 | ||
|
Unavailable |
|||
|
#19
BLANK KEY
4BH-82511-09-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
COVER, MAIN SWITCH
3P6-82568-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
90105-081A1-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
RIVET
90269-07015-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
PROTECTER, WIRE HARNESS
B7N-82589-01-00
|
$48.99 | ||
|
Unavailable |
|||
|
#24
RELAY ASSY (G8HN-1C4T-DJ-Y52)
5DM-81950-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
HORN
BEA-83371-00-00
|
$54.99 | ||
|
Unavailable |
|||
|
#26
BOLT, BUTTON HEAD
92017-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
STAY, SETTING
B7N-8431R-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BRACKET, HORN
BEA-23377-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE DEEP RE
90105-06225-00
Superseded by 95E32-06020-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#30
DAMPER
B7N-84527-00-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
