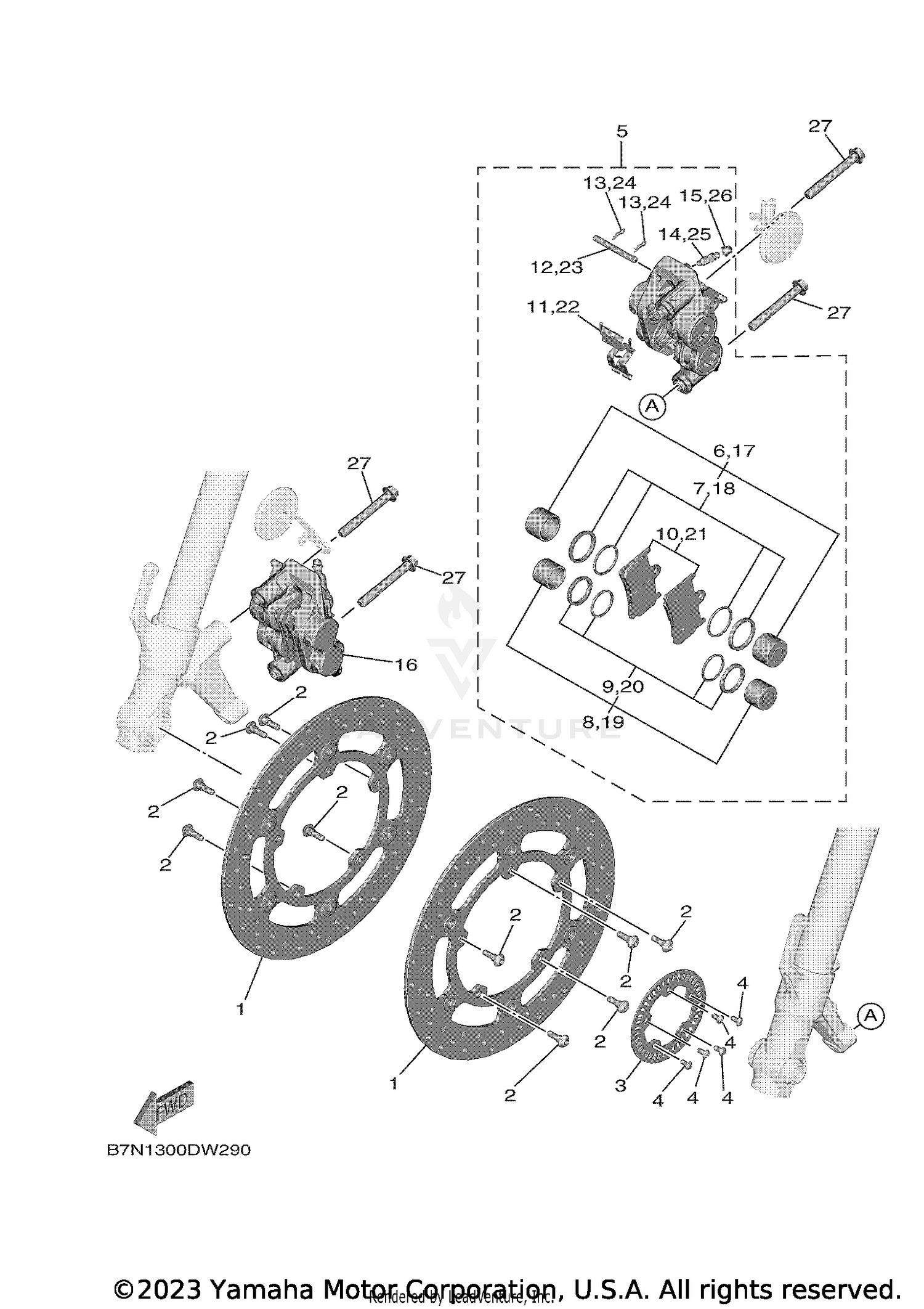

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC BRAKE ASSY
1RC-2581T-00-00
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90109-064G6-00
Superseded by 90109-06254-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
ROTOR, SENSOR
1SD-2517G-00-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
90149-05029-00
Superseded by 90149-05030-00
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CALIPER ASSY (LEFT)
1RC-2580T-00-00
|
$524.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PISTON ASSY, CALIPER
4SV-25802-10-00
|
$212.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CALIPER SEAL KIT
3GM-25803-10-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON ASSY, CALIPER
4SV-25802-00-00
|
$168.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CALIPER SEAL KIT
3MA-25803-10-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRAKE PAD KIT
5SL-25805-00-00
|
$69.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SUPPORT, PAD
13S-25919-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, PAD
4SV-25924-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
3GM-25925-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, BLEED
1J3-25824-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP
306-25825-01-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CALIPER ASSY (RIGHT)
1RC-2580U-00-00
|
$536.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PISTON ASSY, CALIPER
4SV-25802-10-00
|
$212.99 | ||
|
Unavailable |
|||
|
#18
CALIPER SEAL KIT
3GM-25803-10-00
|
$58.99 | ||
|
Unavailable |
|||
|
#19
PISTON ASSY, CALIPER
4SV-25802-00-00
|
$168.99 | ||
|
Unavailable |
|||
|
#20
CALIPER SEAL KIT
3MA-25803-10-00
|
$60.99 | ||
|
Unavailable |
|||
|
#21
BRAKE PAD KIT
5SL-25805-00-00
|
$69.99 | ||
|
Unavailable |
|||
|
#22
SUPPORT, PAD
13S-25919-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#23
PIN, PAD
4SV-25924-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#24
CLIP
3GM-25925-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#25
SCREW, BLEED
1J3-25824-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#26
CAP
306-25825-01-00
|
$10.99 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE
90105-10440-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
