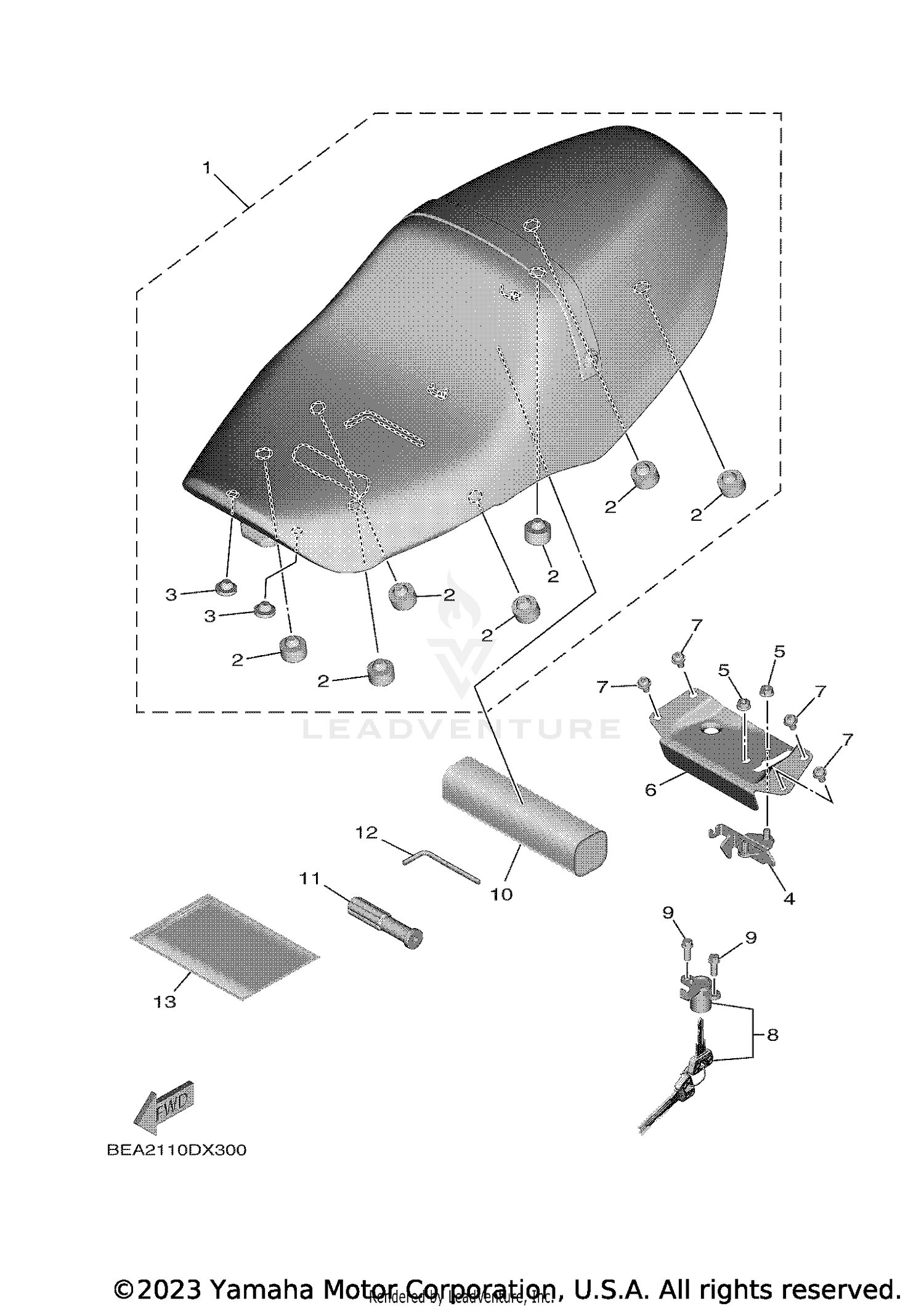

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOUBLE SEAT ASSY
BEA-24730-00-00
|
$415.99 | ||
|
Unavailable |
|||
|
#1
DOUBLE SEAT ASSY
BEA-24730-10-00
|
$385.99 | ||
|
Unavailable |
|||
|
#2
PAD, SEAT
5JW-24741-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, SEAT
3L7-24724-00-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAT LOCK ASSY
B90-24780-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BRACKET, SEAT LOCK
BEA-2478X-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
90110-06172-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROTOR SET
1RC-W2470-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE DEEP RECESS
95E32-06016-00
|
$0.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
TOOL KIT
BEA-28100-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#11
GRIP, DRIVER
2H7-28151-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WRENCH, HEXAGON 8
14B-28164-00-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
POUCH
4KG-28186-11-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
