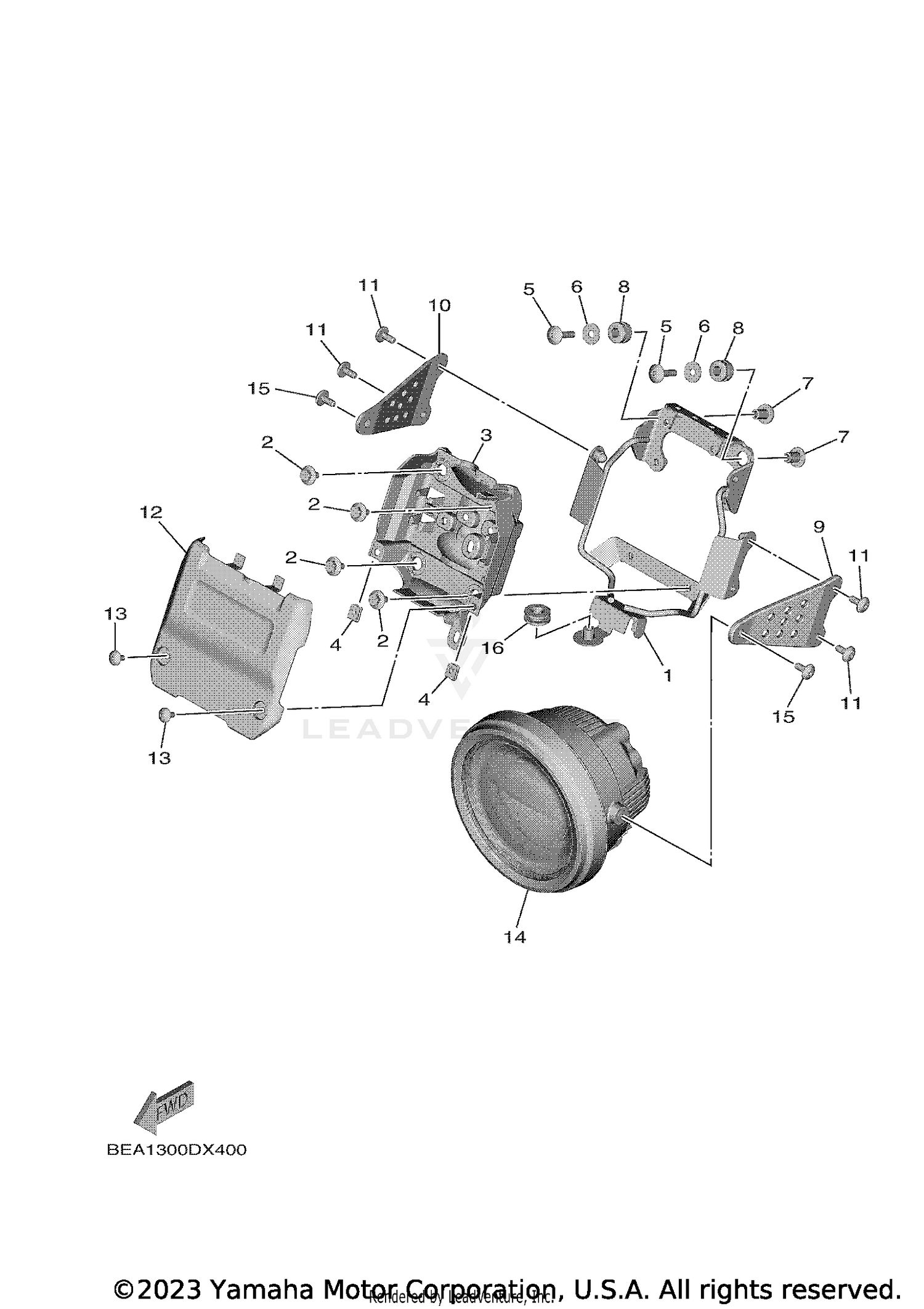

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAY, HEADLIGHT
BEA-23174-00-00
|
$177.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90109-06202-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER
BEA-8431U-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#4
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BOLTHEX. SOCKET BUTTON
90111-06189-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-06063-00
Superseded by 90201-06095-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-06365-00
|
$6.49 | ||
|
Unavailable |
|||
|
#8
GROMMET
90480-14036-00
|
$5.49 | ||
|
Unavailable |
|||
|
#9
COVER, UPPER 1
BEA-23121-10-00
Superseded by BEA-23121-11-00
|
$42.99 | ||
|
Unavailable |
|||
|
#9
COVER, UPPER 1
BEA-23121-00-00
Superseded by BEA-23121-01-00
|
$43.99 | ||
|
Unavailable |
|||
|
#10
COVER, UPPER 2
BEA-23131-10-00
Superseded by BEA-23131-11-00
|
$43.99 | ||
|
Unavailable |
|||
|
#10
COVER, UPPER 2
BEA-23131-00-00
Superseded by BEA-23131-01-00
|
$43.99 | ||
|
Unavailable |
|||
|
#11
BOLT, HEX. SOCKET BUTTON
90111-06095-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PANEL, INNER 1
BEA-2836K-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#13
BOLT, HEX. SOCKET BUTTON
90111-05002-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
HEADLIGHT ASSY
BEA-84300-00-00
Superseded by BEA-84300-01-00
|
$600.99 | ||
|
Unavailable |
|||
|
#15
BOLT, HEX. SOCKET BUTTON
90111-06095-00
|
$9.49 | ||
|
Unavailable |
|||
|
#16
GROMMET
90480-16014-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
