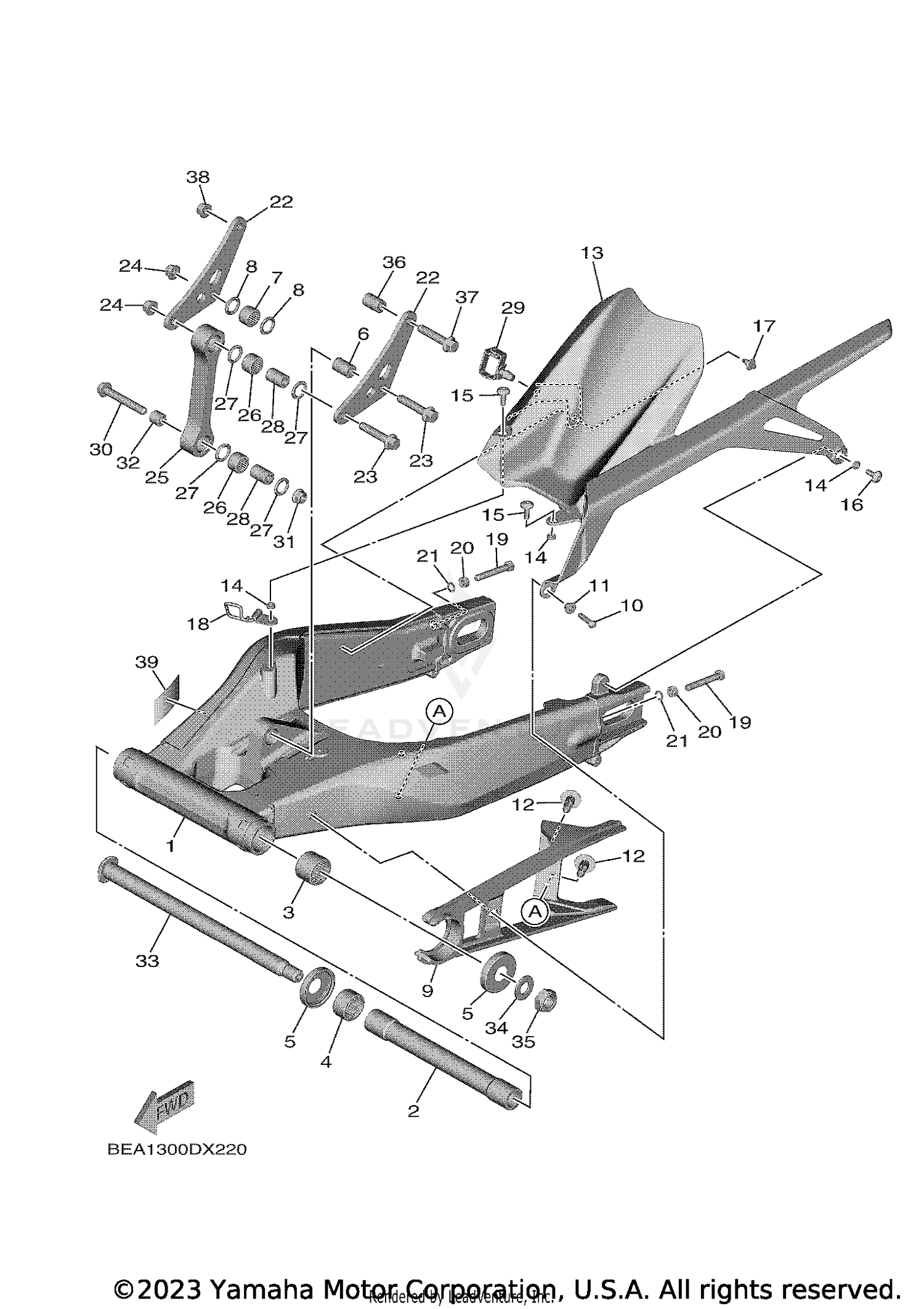

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
B5U-22110-00-00
|
$2,087.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-22039-00
|
$82.99 | ||
|
Unavailable |
|||
|
#3
BEARING
93317-330A0-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93317-330A1-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, THRUST 1
5VY-22128-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-1012A-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93315-31758-00
|
$44.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
OIL SEAL
93109-17071-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, GUARD
B5U-22151-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, BUTTON HEAD
92012-06025-00
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
COLLAR
90387-062X0-00
|
$22.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
RIVET
90269-07007-00
|
$4.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
REAR FENDER COMP.
B5U-21650-01-00
|
$60.99 | ||
|
Unavailable |
|||
|
#14
COLLAR
90387-06372-00
Superseded by 90387-06106-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
90149-06104-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
90111-06151-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
RIVET
90269-07007-00
|
$4.40 | ||
|
Unavailable |
|||
|
#18
STAY
B5U-22538-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90101-08013-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, HEXAGON
95302-08600-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-08052-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
ARM, RELAY
B7N-2217A-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
90105-10030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, U FLANGE
95607-10200-00
|
$4.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
ARM 1
B7N-2217M-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING
93315-31758-00
|
$44.99 | ||
|
Unavailable |
|||
|
#27
OIL SEAL
93109-17071-00
|
$8.49 | ||
|
Unavailable |
|||
|
#28
COLLAR
90387-1012A-00
|
$23.99 | ||
|
Unavailable |
|||
|
#29
CLAMP
90464-20023-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE
90105-10211-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, S/L FLANGE
95602-10200-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
COLLAR
90387-10043-00
|
$31.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
SHAFT, PIVOT
B7N-22141-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
90201-18013-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, SELF-LOCKING
90185-18009-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
COLLAR
90387-10125-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE
90105-10030-00
|
$9.49 | ||
|
Unavailable |
|||
|
#38
NUT, U FLANGE
95607-10200-00
|
$4.15 | ||
|
Unavailable |
|||
|
#39
LABEL, TIRE
14B-21668-01-00
|
$3.65 | ||
|
Unavailable |
|||
