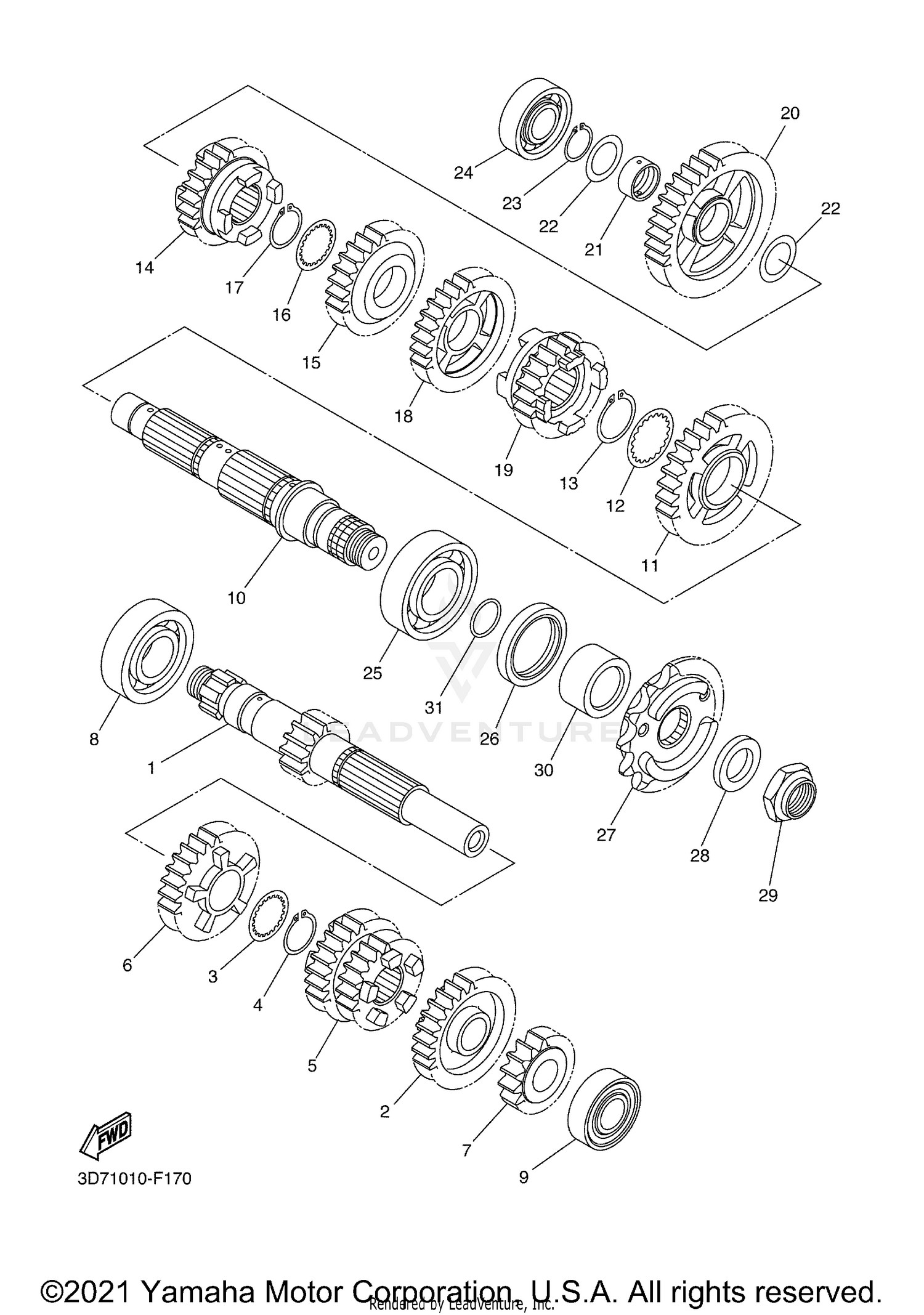

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN (14T)
3D7-17411-00-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 6TH PINION (28T)
3D7-17161-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER
90209-20008-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
CIRCLIP
93410-22039-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GEAR, 3RD PINION (22T/25T)
3D7-17131-00-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 5TH PINION (27T)
3D7-17151-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, 2ND PINION (16T)
3D7-17121-00-00
Superseded by 3D7-17121-00-YX
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93306-20447-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-20332-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
DRIVE AXLE ASSY
3D7-17402-00-00
|
$181.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, 2ND WHEEL (29T)
3D7-17221-00-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
90209-23012-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
93410-26067-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, 5TH WHEEL (24T)
3D7-17251-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, 4TH WHEEL (26T)
3D7-17241-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
90209-20008-00
|
$12.49 | ||
|
Unavailable |
|||
|
#17
CIRCLIP
93410-22039-00
|
$9.49 | ||
|
Unavailable |
|||
|
#18
GEAR, 3RD WHEEL (29T)
3D7-17231-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, 6TH WHEEL (22T)
3D7-17261-00-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 1ST WHEEL (37T)
3D7-17211-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-17012-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-177G4-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
CIRCLIP
93410-17037-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93306-20332-00
|
$42.99 | ||
|
Unavailable |
|||
|
#25
BEARING
93306-20532-00
|
$72.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
OIL SEAL
93102-32480-00
|
$21.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
SPROCKET, DRIVE (13T)
3D7-17460-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-18026-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT
90179-18010-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-22013-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING
93210-196A4-00
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
