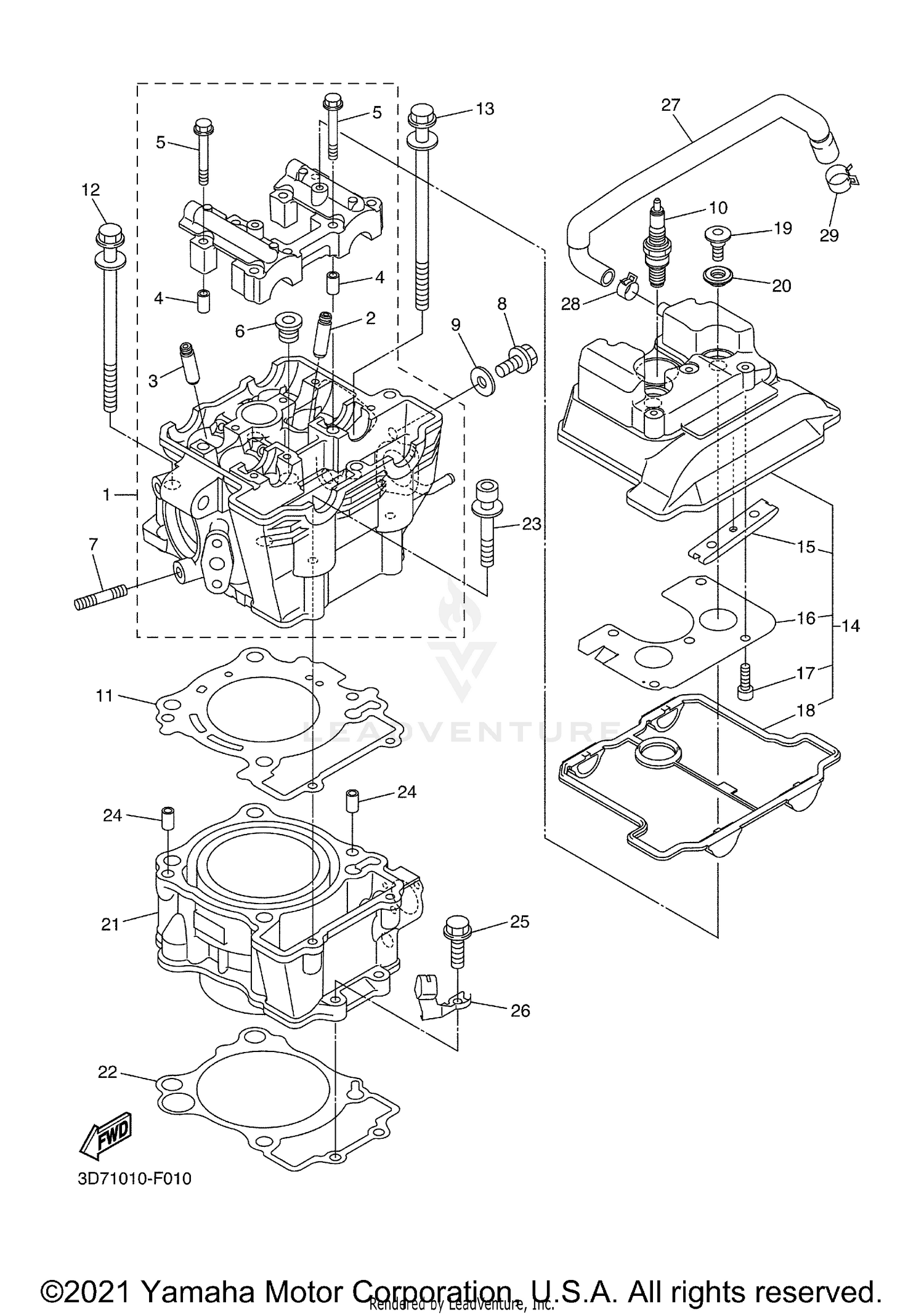

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
3D7-11101-00-00
Superseded by 3D7-11101-09-00
|
$1,360.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE 1
3D7-11133-10-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, VALVE 1
2C0-11133-11-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
91808-16023-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
90105-06027-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG, STRAIGHT SCREW
90340-12007-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, STUD
95612-08620-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT, FLANGE
95022-08012-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
GASKET
90430-08119-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CR9EK NGK SPLUG 10
NGK-CR9EK-00-00
Superseded by CR9-EK000-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, CYLINDER HEAD 1
3D7-11181-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, WITH WASHER
90119-10025-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, WITH WASHER
90119-10026-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, CYLINDER HEAD 1
3D7-11190-00-00
|
$318.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUIDE, STOPPER 2
5BE-12241-00-00
Superseded by 5BE-12241-01-00
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PLATE, BREATHER
3D7-11165-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
90110-06175-00
Superseded by 91314-06020-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, HEAD COVER 1
3D7-11193-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90109-066F0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
RUBBER, MOUNT 1
5VY-1111G-00-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CYLINDER 1
3D7-11311-01-00
Superseded by 3D7-11311-02-00
|
$890.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET, CYLINDER
3D7-11351-01-00
Superseded by 3D7-11351-02-00
|
$17.99 | ||
|
Unavailable |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
90110-06298-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, DOWEL
99530-08016-00
Superseded by 91808-16023-00
|
$7.99 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE
95022-06025-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP 1
3D7-12491-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIPE, BREATHER 1
3D7-11166-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP
90467-120A5-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP
90467-15141-00
|
$1.38 | ||
|
Unavailable |
|||
