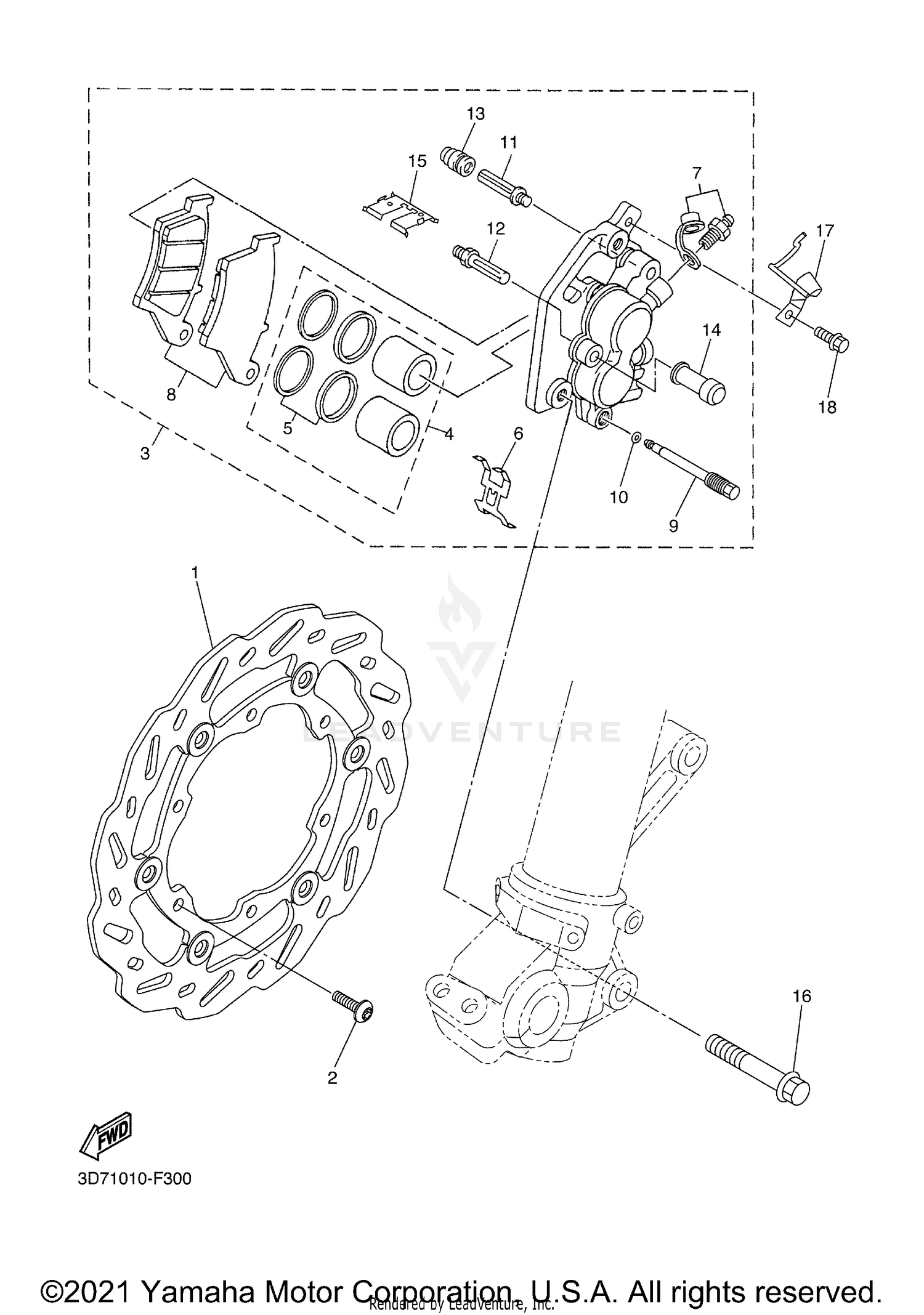

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISK BRAKE ASSY
3D7-2581T-00-00
Superseded by 3D7-2581T-02-00
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW
90149-06001-00
Superseded by 90149-06228-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSY (LEFT)
32D-2580T-00-00
Superseded by 32D-2580T-01-00
|
$305.99 | ||
|
Unavailable |
|||
|
#4
PISTON ASSY, CALIPER
5UN-W0057-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
3JD-W0047-00-00
Superseded by 3JD-25803-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SUPPORT, PAD
5DH-25919-00-00
|
$22.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BLEED SCREW KIT
1UY-W0048-50-00
Superseded by 36Y-W0048-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRAKE PAD KIT
32D-W0045-00-00
Superseded by 32D-W0045-01-00
|
$56.99 | ||
|
Unavailable |
|||
|
#9
WASHER, PAD PIN
3D7-25933-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#10
STOPPER
3P6-25925-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
3SP-25926-51-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, SLIDE
3SP-25914-51-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOOT, CALIPER
3JD-25917-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOOT 2
1UY-25937-51-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
RETAINER, CALIPER
5DH-25849-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-08158-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER, BRAKE HOSE 1
3D7-25875-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95027-06010-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
