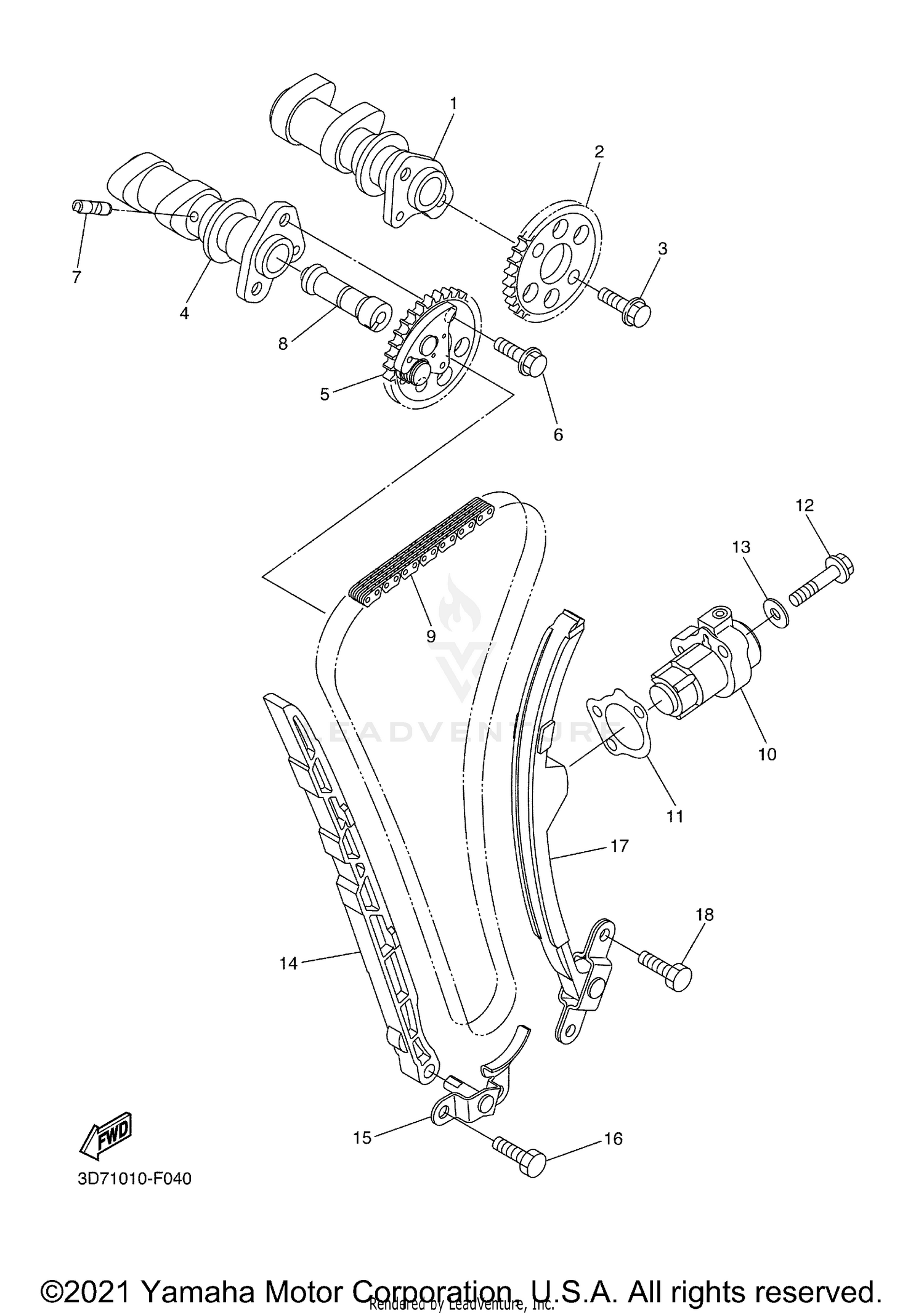

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT 1
3D7-12171-00-00
|
$263.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, CAM CHAIN
3D7-12176-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-07004-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
CAMSHAFT 2
3D7-12181-00-00
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DECOMPRESSION ASSY
3D7-12280-00-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-07004-00
|
$6.49 | ||
|
Unavailable |
|||
|
#7
PIN, DECOMPRESSION LEVER
3D7-12284-00-00
Superseded by 3D7-12284-01-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER, DECOMPRESSION SPRING
3D7-12290-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CHAIN (98XRH2010-118M)
94591-57118-00
|
$39.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
TENSIONER ASSY, CAM CHAIN
3D7-12210-00-00
Superseded by 3D7-12210-12-00
|
$221.99 | ||
|
Unavailable |
|||
|
#11
GASKET, TENSIONER CASE
15B-12213-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95022-06025-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
GUIDE, STOPPER 1
3D7-12231-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, GUIDE STOPPER 1
3D7-12233-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
90101-06033-00
Superseded by 97017-06014-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
GUIDE, STOPPER 2
3D7-12241-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90101-06033-00
Superseded by 97017-06014-00
|
$9.49 | ||
|
Unavailable |
|||
