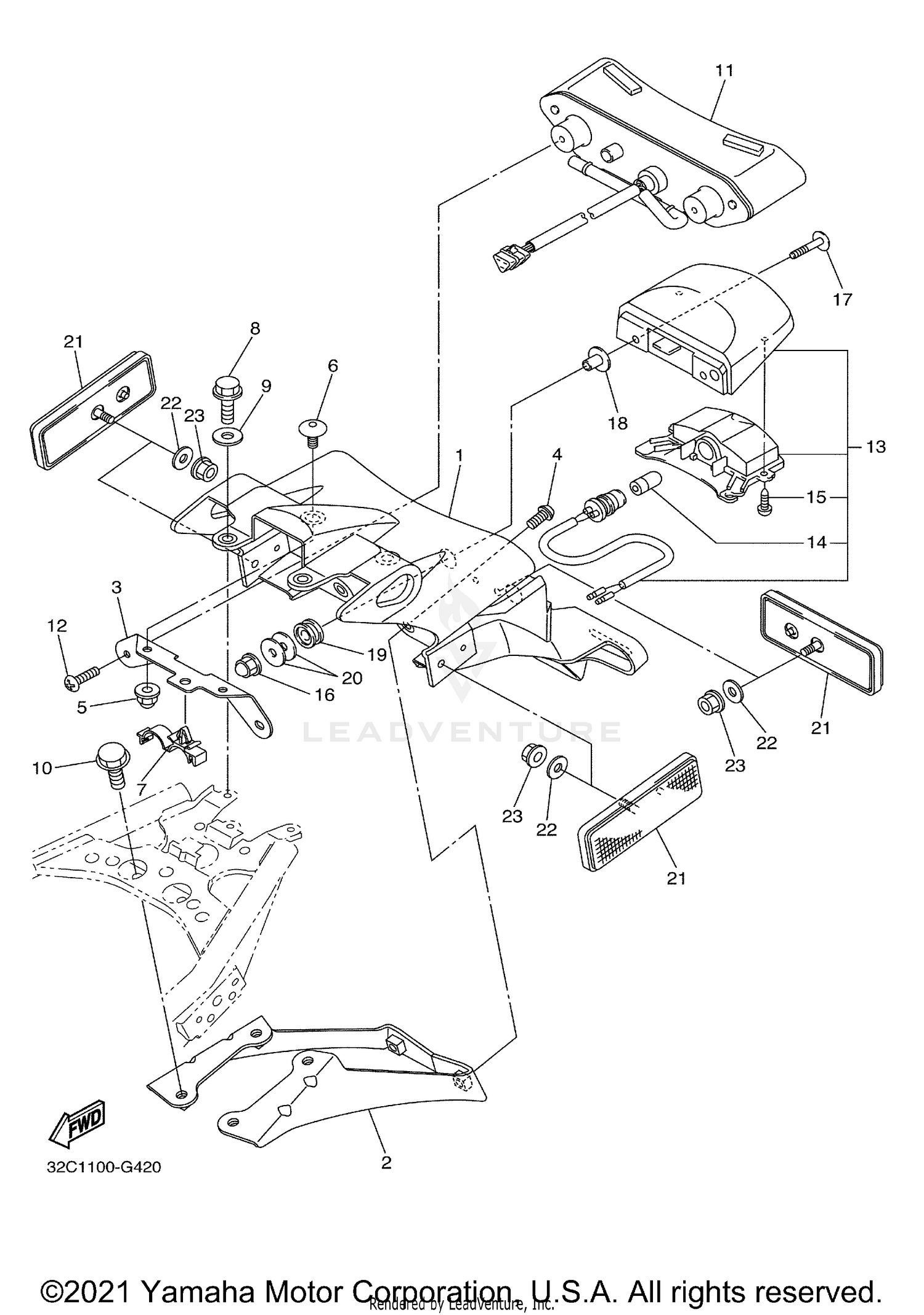

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUARD, MUD
32C-21629-01-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, REAR STAY
32C-21688-00-00
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY 2
32C-2164G-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HEX. SOCKET BUTTON
90111-06090-00
Superseded by 90111-06095-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, CROWN
90176-05003-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEX. SOCKET BUTTON
90111-05011-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
90464-16006-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-05024-00
Superseded by 90105-05025-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-054K4-00
Superseded by 90201-05556-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95812-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
TAILLIGHT UNIT ASSY
32C-84710-00-00
Superseded by 32C-84710-01-00
|
$163.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, TRUSS HEAD TAPPING
97702-50014-00
Superseded by 97707-50014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
LICENSE LIGHT UNIT ASSY
32C-84745-00-00
Superseded by 32C-84745-01-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BULB (12V-5W)
4HC-84744-00-00
Superseded by 4SV-84347-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, TRUSS
97707-40612-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, CROWN
90176-05054-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
90111-05030-00
Superseded by 90111-05010-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-06159-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
DAMPER
4WM-83513-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-05036-00
Superseded by 90201-061A5-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-05725-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, WITH WASHER
95702-05500-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
