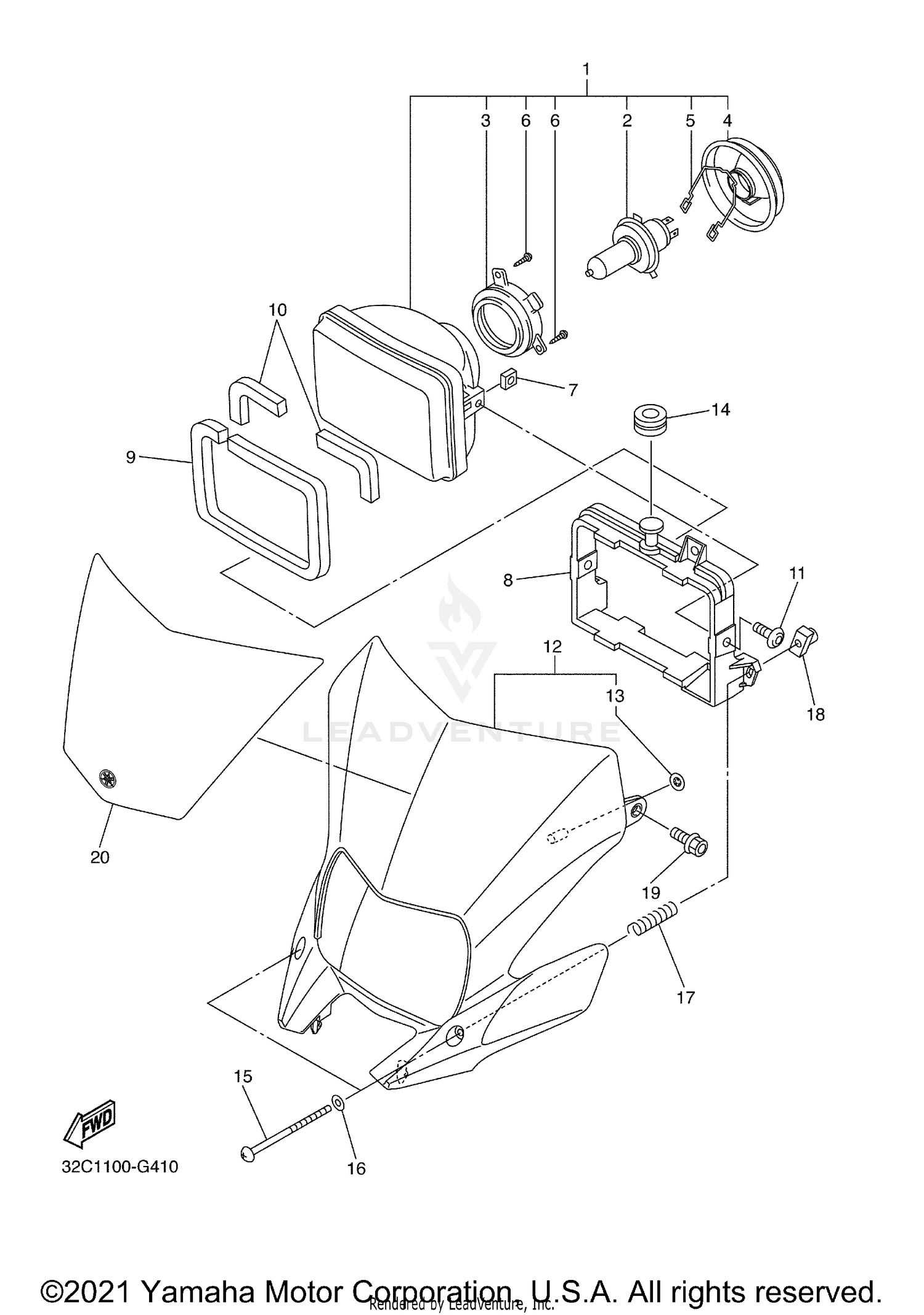

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT UNIT ASSY
32C-84310-00-00
|
$401.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB, HEADLIGHT (12V-60/55W)
32D-84314-00-00
Superseded by 8V0-84314-10-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING LAMP SET
1D0-H4363-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#4
COVER, SOCKET
1D0-H4397-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#5
SPRING
1D0-H4335-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, TAPPING
97707-30610-00
Superseded by 97707-30510-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
32D-84117-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, HEADLIGHT 1
32D-84118-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER
32D-84527-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER
32D-84553-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
90110-06090-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BODY ASSY
32D-84330-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, SPRING
90183-05068-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
90480-16008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, ADJUSTING
341-84331-60-00
Superseded by 90157-04001-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER, PLATE
92902-04600-00
Superseded by 92990-04600-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, SCREW
341-84332-60-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, ADJUSTING
198-84334-60-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-06064-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
GRAPHIC
32D-8411B-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
