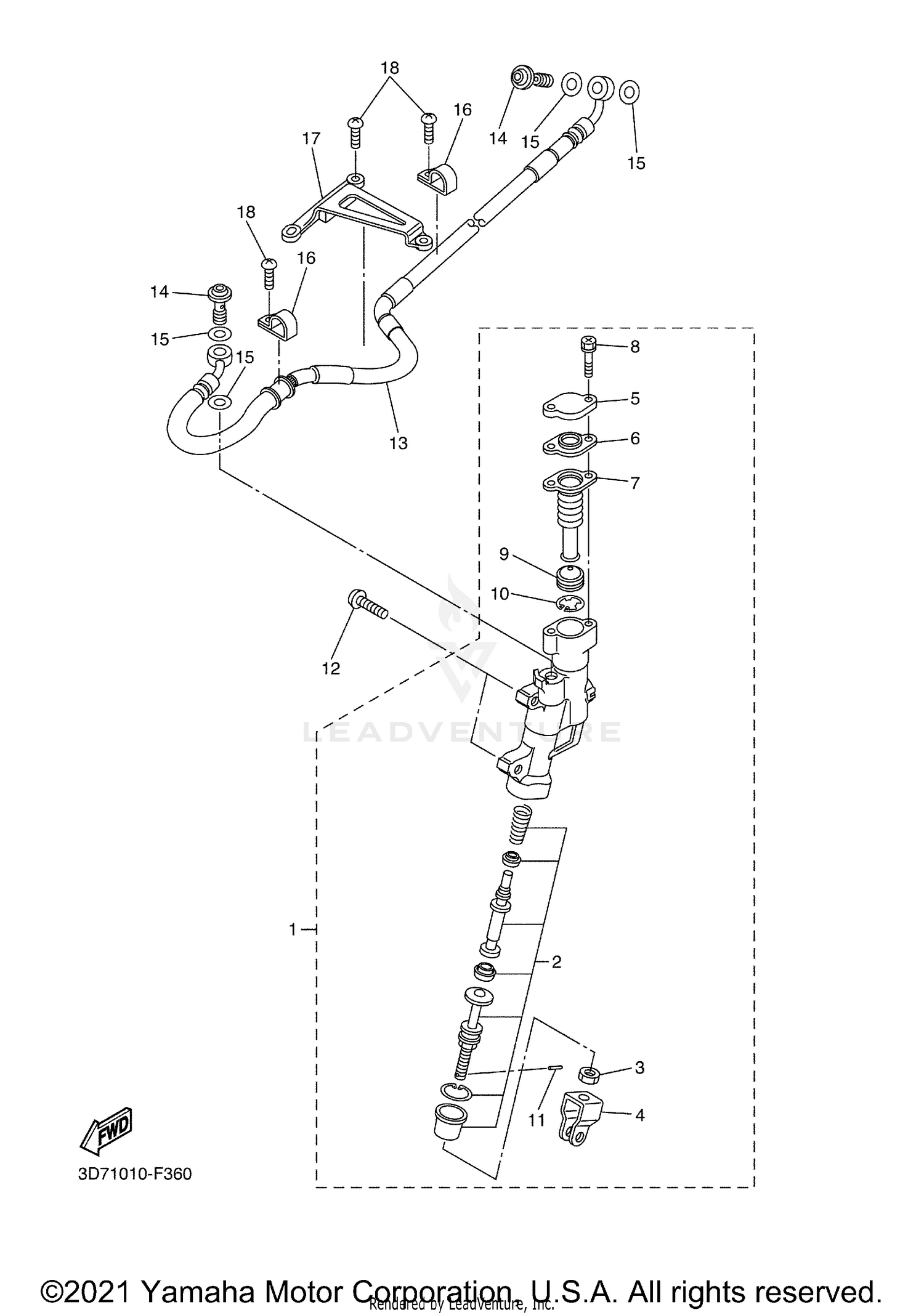

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR MASTER CYLINDER ASSY.
3D7-2583V-00-00
|
$210.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
3D7-W0042-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
3D7-27218-00-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
JOINT
5UN-27222-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, RESERVOIR
5UN-25852-50-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, DIAPHRAGM
5UN-2585B-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
DIAPHRAGM, RESERVOIR
5UN-25854-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
5UN-27217-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEPARATOR ASSY
5CG-25715-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
5CG-2585G-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, BRAKE ROD
3KW-27234-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEX. SOCKET BUTTON
90111-06092-00
Superseded by 90111-06059-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE, BRAKE 2
3D7-25873-00-00
Superseded by 3D7-25873-01-00
|
$69.99 | ||
|
Unavailable |
|||
|
#14
BOLT, UNION
90401-10172-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
90430-10005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER, BRAKE HOSE 2
3D7-25876-00-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER, BRAKE HOSE
3D7-25886-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, WITH WASHER
90159-05052-00
Superseded by 90159-05053-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
