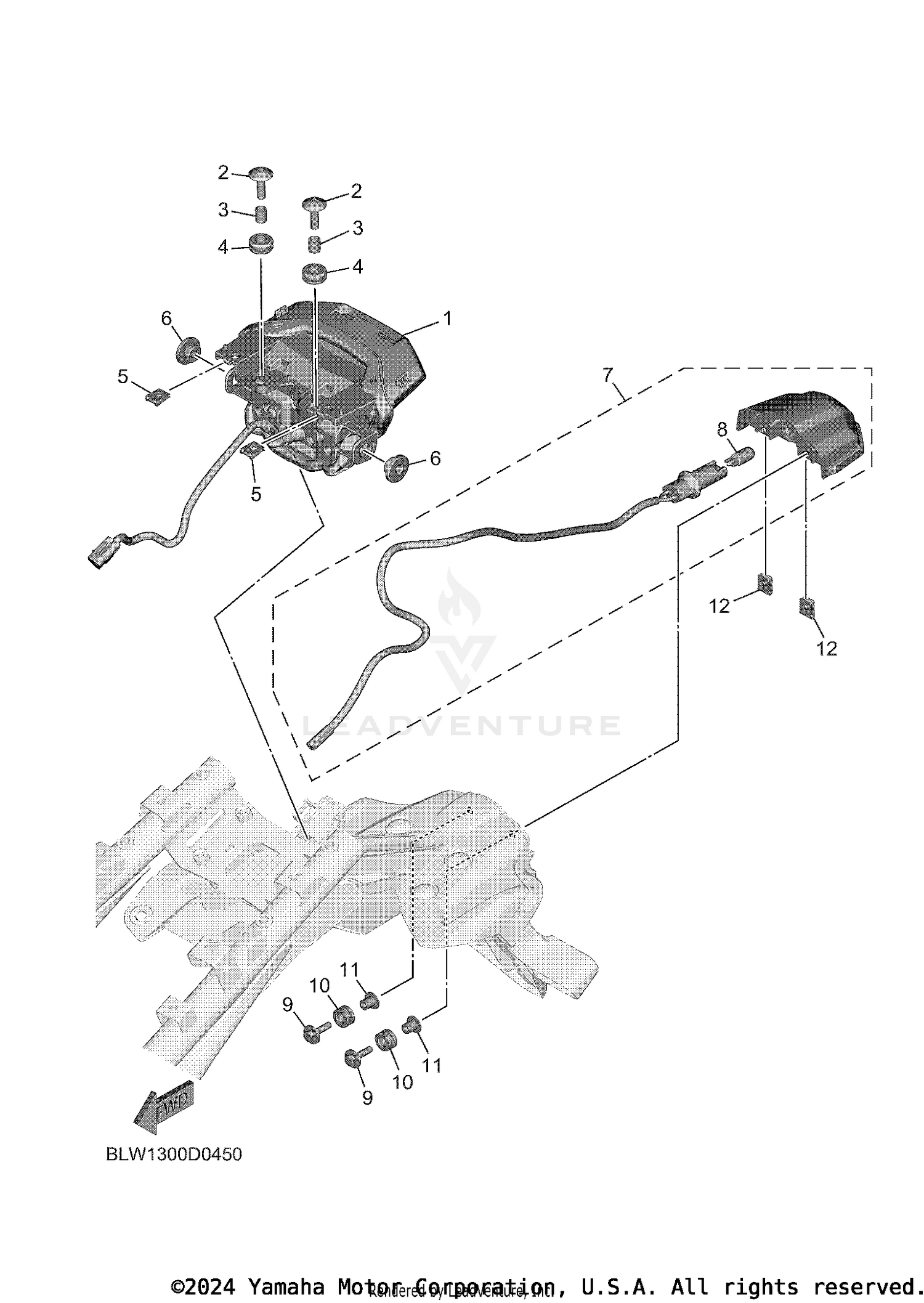

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT ASSY
BLW-84700-00-00
|
$69.99 | ||
|
Unavailable |
|||
|
#2
BOLT, HEX. SOCKET BUTTON
90111-06137-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
90387-067V1-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
90480-13001-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, SPRING
90183-05042-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
GROMMET
90480-10016-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
LICENCE LIGHT UNIT ASSY
2PN-84745-02-00
|
$45.99 | ||
|
Unavailable |
|||
|
#8
BULB (12V-5W)
2DP-H4347-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, WITH WASHER
90119-05020-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-05042-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
GROMMET
90480-11009-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
