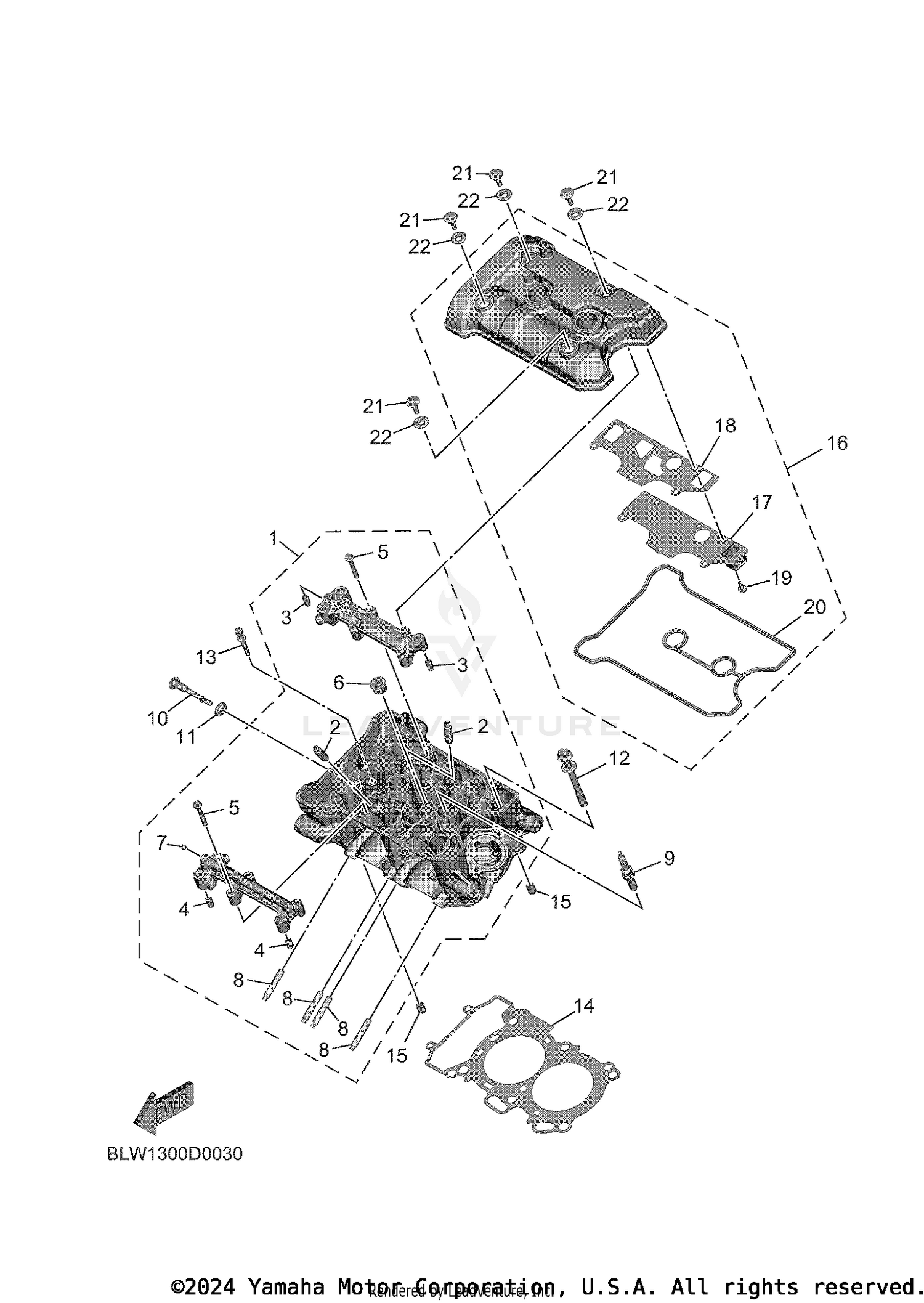

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
BAT-11101-09-00
|
$1,252.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE 1
4D9-11133-10-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
91808-16023-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
91808-16023-00
|
$7.99 | ||
|
Unavailable |
|||
|
#5
BOLT, FLANGE
90105-06027-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG, STRAIGHT SCREW
90340-18002-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BALL
93501-04011-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT, STUD
90116-08087-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG, SPARK (NGK LMAR8A-9)
LMA-R8A9S-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#10
BOLT
90109-06293-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, MOUNT 1
5VY-1111G-00-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, WITH WASHER
90119-10056-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
90110-06081-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, CYLINDER H
BLW-11181-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#15
PIN, DOWEL
99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
COVER, CYLINDER HE
1WS-11190-10-00
|
$167.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, BREATHER
1WS-11165-01-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, BREATHER COVER
1WS-11169-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-05024-00
Superseded by 90105-05025-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET, HEAD COVER 1
1WS-11193-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
90109-066F0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
RUBBER, MOUNT 1
5VY-1111G-00-00
|
$13.49 | ||
|
Unavailable |
|||
