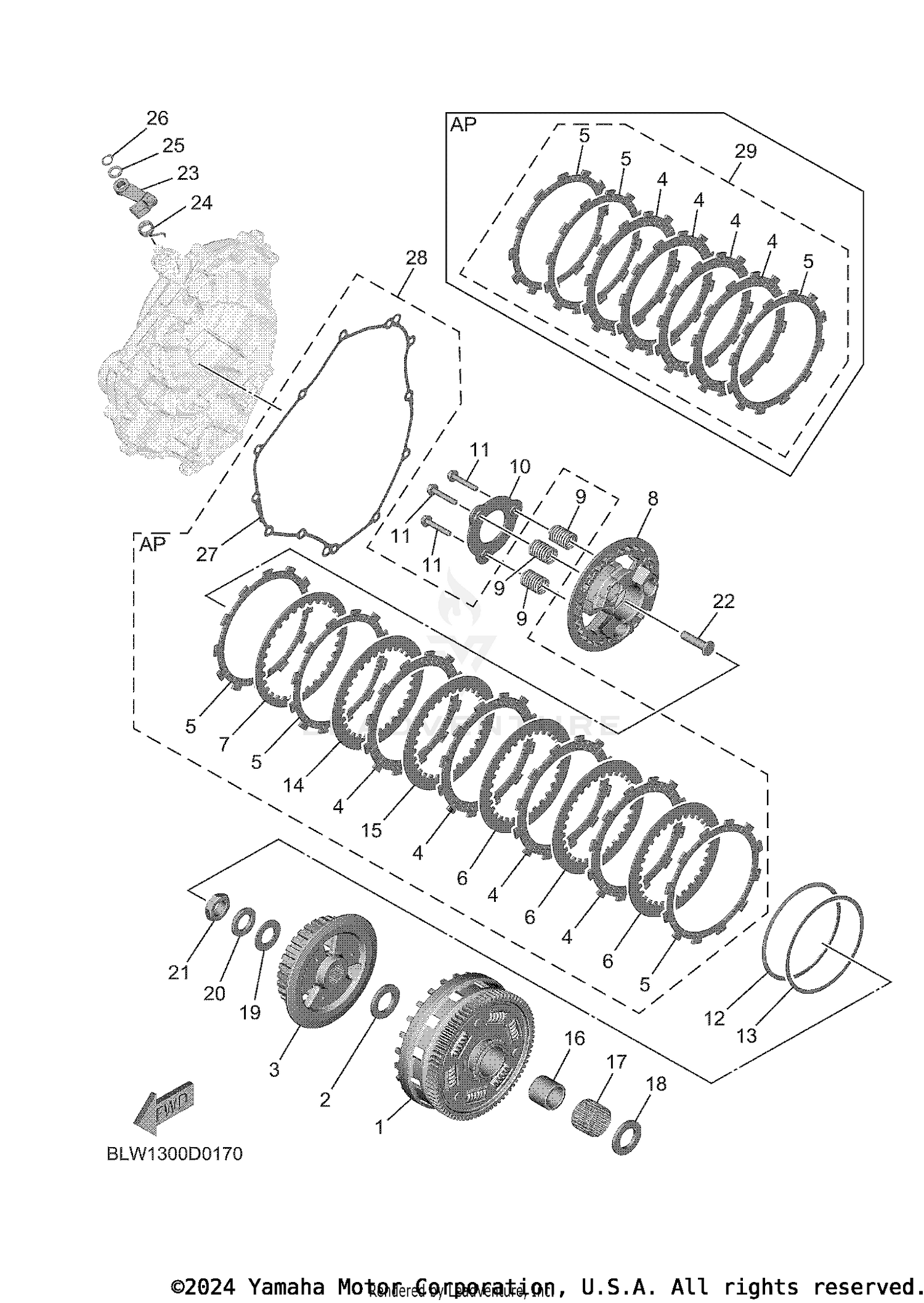

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PRIMARY DRIVEN GEAR COMP.
1WS-16150-00-00
|
$423.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, THRUST 1
363-16154-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOSS, CLUTCH
BEB-16371-00-00
|
$107.99 | ||
|
Unavailable |
|||
|
#4
PLATE, FRICTION
B7N-16321-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, FRICTION 2
B90-16331-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, CLUTCH 2
5VY-16325-10-00
Superseded by 5VY-16325-20-00
|
$12.49 | ||
|
Unavailable |
|||
|
#7
PLATE, CLUTCH 1
1TD-16324-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PRESSURE PLATE ASS
BEB-16350-00-00
|
$100.99 | ||
|
Unavailable |
|||
|
#9
SPRING, COMPRESSIO
BEB-16173-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#10
PLATE, PRESSURE 2
B90-16352-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, SPRING
2CR-16337-00-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING.,CUSHION
1TD-16383-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, SEAT
1TD-16384-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, CLUTCH 2
4B1-16325-00-00
|
$25.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PLATE, CLUTCH 2
5VY-16325-10-00
Superseded by 5VY-16325-20-00
|
$12.49 | ||
|
Unavailable |
|||
|
#14
PLATE, CLUTCH 1
BR9-16324-10-00
|
$11.49 | ||
|
Unavailable |
|||
|
#15
PLATE, CLUTCH 1
BR9-16324-10-00
|
$11.49 | ||
|
Unavailable |
|||
|
#15
PLATE, CLUTCH 2
5VY-16325-10-00
Superseded by 5VY-16325-20-00
|
$12.49 | ||
|
Unavailable |
|||
|
#15
PLATE, CLUTCH 2
4B1-16325-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#16
SPACER 1
1WS-16181-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING
93310-332C2-00
|
$19.49 | ||
|
Unavailable |
|||
|
#18
PLATE, THRUST 1
363-16154-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#19
WASHER, PLATE
90201-20030-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER, CONICAL SPRING
90208-20001-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
90179-20007-00
Superseded by 90179-20022-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
ROD, PUSH 1
1WS-16356-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PUSH LEVER ASSY
1WS-16340-01-00
|
$31.99 | ||
|
Unavailable |
|||
|
#24
SPRING, TORSION
90508-18132-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-10029-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
CIRCLIP
99009-10400-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
GASKET, CRANKCASE
BLW-15461-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#28
CLUTCH PLATE KIT
BLW-W001G-00-00
|
$264.99 | ||
|
Unavailable |
|||
|
#29
FRICTION PLATE KIT
BEB-W001M-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
