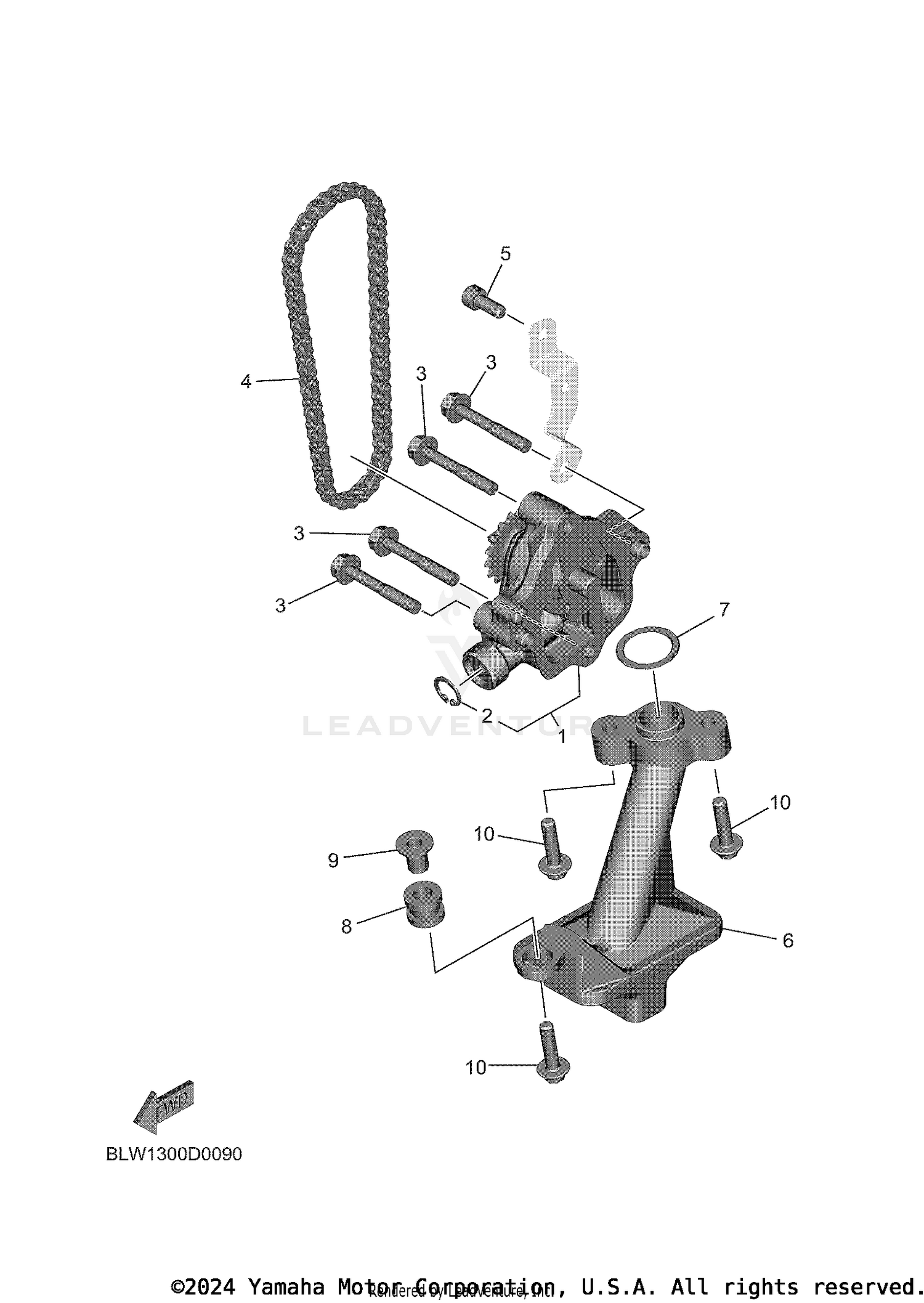

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP ASSY
BLW-13300-00-00
|
$141.99 | ||
|
Unavailable |
|||
|
#2
CIRCLIP
99009-15500-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
95812-06040-00
Superseded by 95817-06040-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CHAIN (DID25H-66L)
94581-79060-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
90110-06168-00
Superseded by 91312-06014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
STRAINER HOUSING ASSY
1WS-13410-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-207A0-00
Superseded by 93210-20802-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
GROMMET
90480-13010-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, DISTANCE
5VY-13117-10-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
90110-06173-00
Superseded by 90110-06172-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
