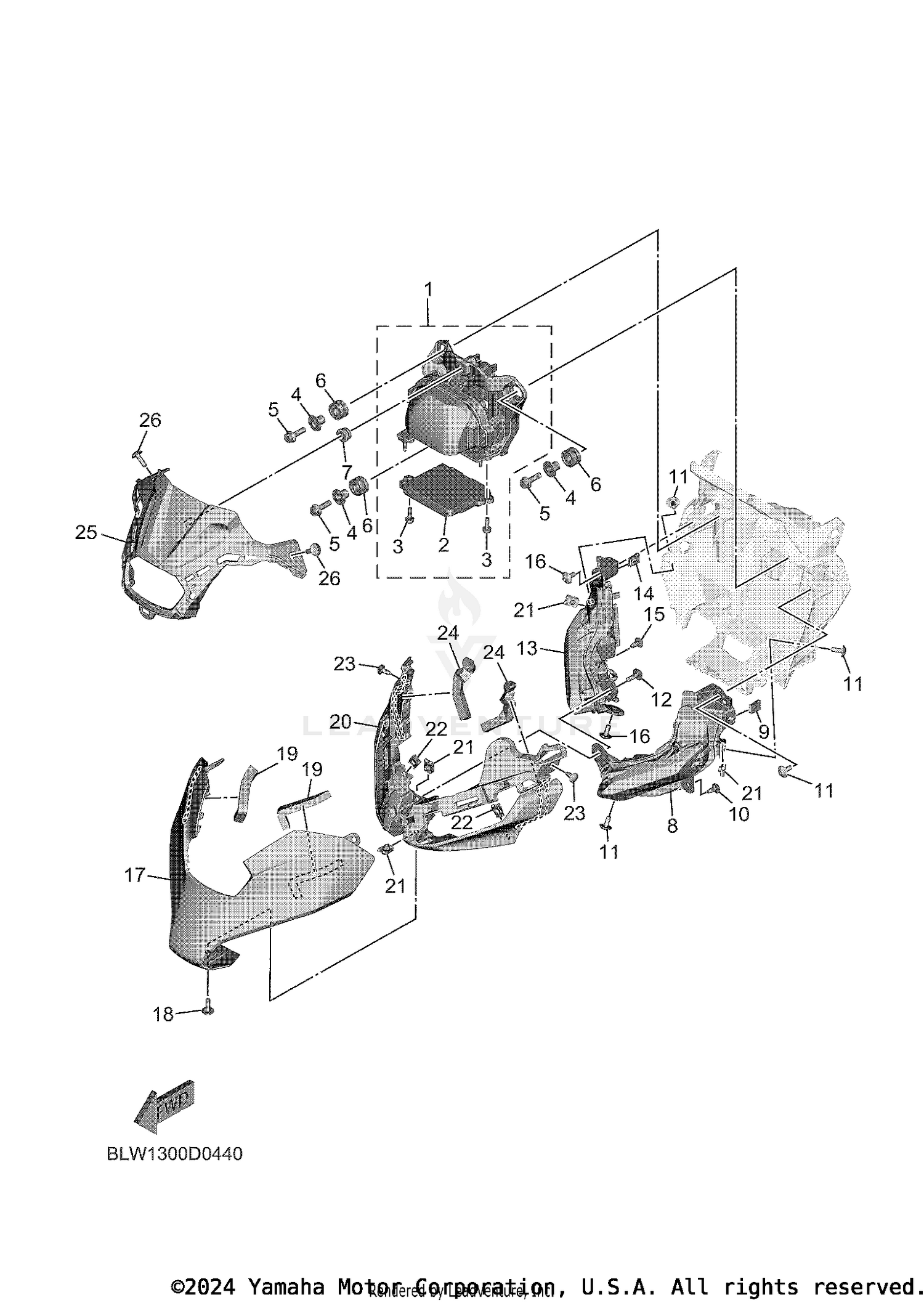

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT ASSY
BME-84300-00-00
|
$448.99 | ||
|
Unavailable |
|||
|
#2
. .LIGHT CONTROL UNIT
BME-85490-00-00
|
$346.99 | ||
|
Unavailable |
|||
|
#3
SCREW, SPECIAL
2PW-84192-00-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-06161-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95822-06020-00
Superseded by 95817-06020-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
DAMPER
4XV-83513-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
90480-10003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PILOT LIGHT ASSY 1
BLW-84301-00-00
|
$198.99 | ||
|
Unavailable |
|||
|
#9
NUT, SPRING
90183-05042-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SCREW, TRUSS HEAD TAPPING
97707-50012-00
|
$4.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, HEX. SOCKET BUTTON
90111-05002-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEX. SOCKET BUTTON
90111-05034-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
PILOT LIGHT ASSY 2
BLW-84302-00-00
|
$198.99 | ||
|
Unavailable |
|||
|
#14
NUT, SPRING
90183-05042-00
|
$1.00 | ||
|
Unavailable |
|||
|
#15
SCREW, TRUSS HEAD TAPPING
97707-50012-00
|
$4.63 | ||
|
Unavailable |
|||
|
#16
BOLT, HEX. SOCKET BUTTON
90111-05002-00
|
$8.49 | ||
|
Unavailable |
|||
|
#17
COVER, HEADLIGHT
BLW-2838E-00-P2
|
$89.99 | ||
|
Unavailable |
|||
|
#17
COVER, HEADLIGHT
BLW-2838E-00-P1
|
$89.99 | ||
|
Unavailable |
|||
|
#17
COVER, HEADLIGHT
BLW-2838E-00-P0
|
$92.99 | ||
|
Unavailable |
|||
|
#18
BOLT, HEX. SOCKET BUTTON
90111-05021-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
DAMPER, PLATE
90520-10023-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, OUTER 1
BLW-23122-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#21
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, SPRING
90183-05042-00
|
$1.00 | ||
|
Unavailable |
|||
|
#23
SCREW, TRUSS HEAD TAPPING
97707-50012-00
|
$4.63 | ||
|
Unavailable |
|||
|
#24
DAMPER, PLATE
90520-10023-00
|
$1.65 | ||
|
Unavailable |
|||
|
#25
COVER 1
BLW-84369-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#26
BOLT, HEX. SOCKET BUTTON
90111-05021-00
|
$6.49 | ||
|
Unavailable |
|||
