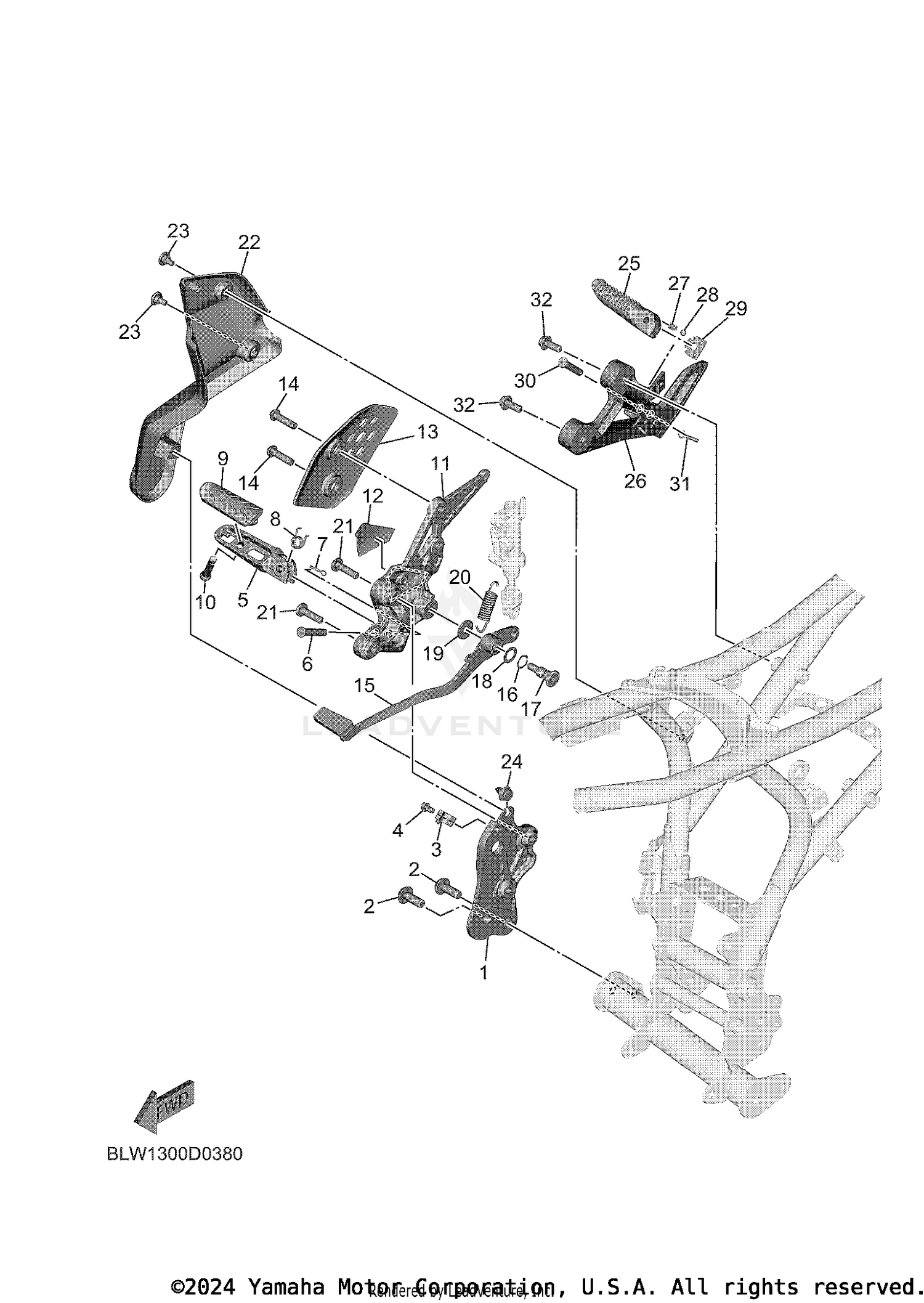

Stand & Footrest 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, ADAPTER 2
B34-274A4-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, HEX. SOCKET BUTTON
90111-10060-00
Superseded by 90111-10006-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP 2
BLW-15484-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#4
BOLT, FLANGE
95022-06010-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
FOOTREST 4
BMG-27461-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#6
PIN, CLEVIS
91701-08040-00
Superseded by 91702-08040-00
|
$4.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PIN. COTTER
91402-25015-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SPRING, TORSION
90508-18135-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, FOOTREST
BLW-27413-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#10
BOLT
90109-08233-00
Superseded by 90109-08235-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET 3
BLW-27443-00-00
|
$95.99 | ||
|
Unavailable |
|||
|
#12
SEAT 2
BLW-27499-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#13
PLATE 2
BLW-27446-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#14
BOLT, BUTTON HEAD
92017-08030-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PEDAL, BRAKE
BLW-27211-00-00
|
$68.99 | ||
|
Unavailable |
|||
|
#16
WASHER, WAVE
90206-12074-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT
4BP-27434-01-00
Superseded by 4BP-27434-11-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-12051-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-08053-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SPRING, TENSION
90506-23008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEXAGON SOCKET HEAD
90110-08220-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER 2
BLW-27463-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#23
BOLT
90109-06346-00
|
$3.85 | ||
|
Unavailable |
|||
|
#24
RIVET
90269-08008-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
FOOTREST, REAR 2
B7N-27441-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRACKET 5
BLW-2742L-00-00
|
$93.99 | ||
|
Unavailable |
|||
|
#27
SPRING, COMPRESSION
90501-12743-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BALL
93501-04011-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
WASHER, SPECIAL
5VX-27437-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, CLEVIS
90240-08063-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN. COTTER
91402-25015-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
Unavailable |
|||
|
#32
BOLT, HEXAGON SOCKET HEAD
90110-08111-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
