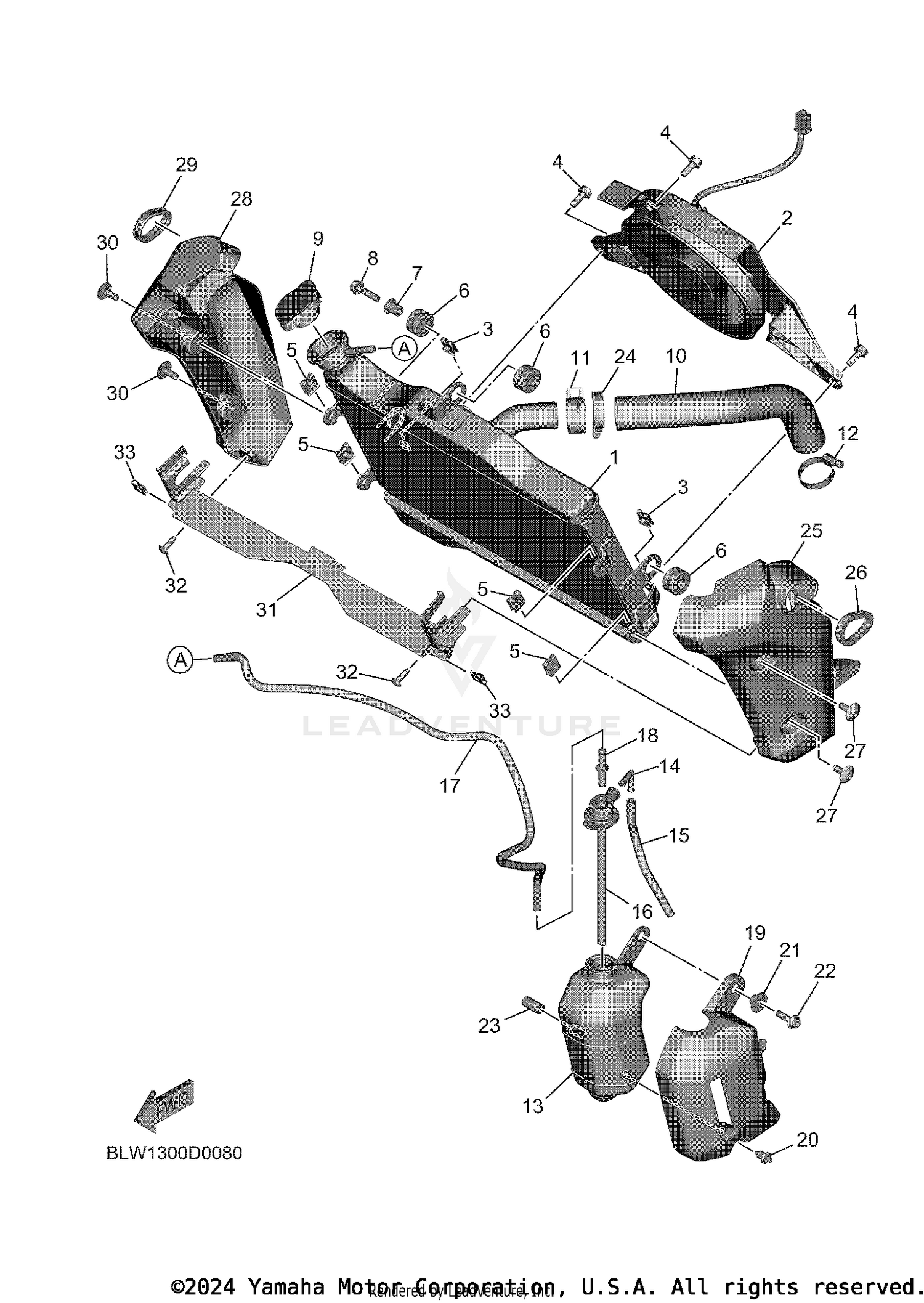

Radiator & Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR COMP
BLW-12461-00-00
|
$260.99 | ||
|
Unavailable |
|||
|
#2
BLOWER ASSY
BEB-12405-00-00
|
$234.99 | ||
|
Unavailable |
|||
|
#3
NUT 1
1WS-12671-00-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, BLOWER HOLDING
2S3-12675-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT 1
1WS-12671-00-00
|
$3.75 | ||
|
Unavailable |
|||
|
#6
GROMMET
90480-15363-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
COLLAR
90387-06263-00
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE DEEP RECESS
95D32-06025-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, RADIATOR
5SL-12462-00-00
Superseded by 5SL-12462-01-00
|
$35.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
HOSE 3
1WS-12578-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
90467-290A0-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE CLAMP ASSY
90450-35001-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
TANK, RECOVERY
BLW-21871-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#14
ELBOW
26H-21828-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE 2
BEB-21817-00-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP
3P6-21875-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIPE 1
BEB-21816-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
JOINT
4XY-14568-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER
BLW-2172W-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#20
RIVET
90269-06008-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
COLLAR
90387-06024-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
90110-06163-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE
90445-10064-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP
90464-07M40-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, SIDE 3
BLW-21731-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#26
DAMPER, FLASHER 1
B7N-83321-00-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLTHEX. SOCKET BUTTON
90111-06191-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#28
COVER, SIDE 4
BLW-21741-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#29
DAMPER, FLASHER 1
B7N-83321-00-00
|
$4.65 | ||
|
Unavailable |
|||
|
#30
BOLTHEX. SOCKET BUTTON
90111-06191-00
|
$1.35 | ||
|
Unavailable |
|||
|
#31
PANEL 1
BLW-2172A-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#32
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
NUT, SPRING
90183-05042-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
