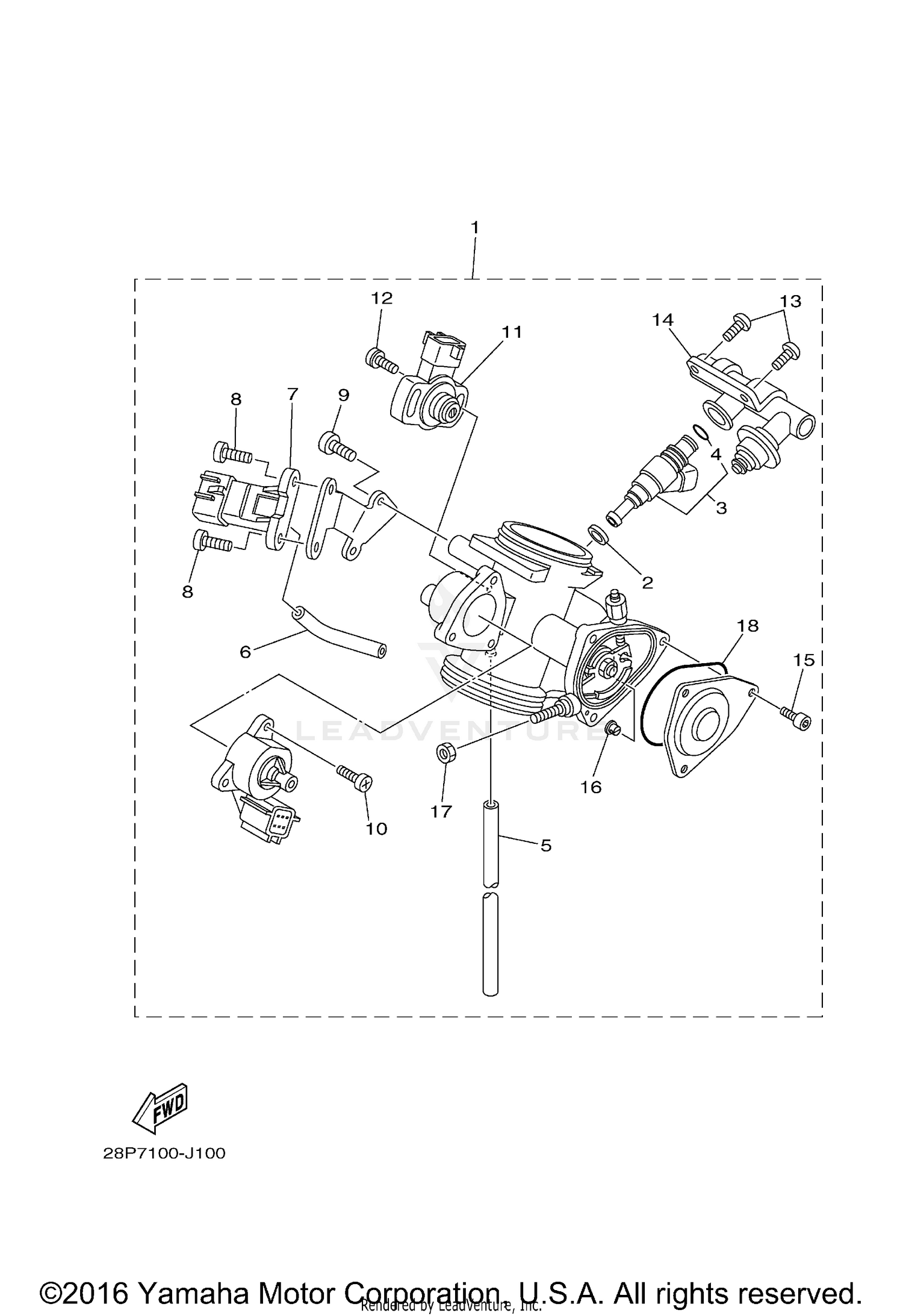

Throttle Body Assy 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
THROTTLE BODY ASSY
43P-13750-10-00
Superseded by 43P-13750-12-00
|
$1,118.99 | ||
|
Unavailable |
|||
|
#2
RUBBER, INJECTOR
8FP-13556-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
INJECTOR
3B4-13761-00-00
|
$250.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
O-RING
5PS-14147-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE, AIR
28P-13543-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE 1
5JW-14348-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SENSOR, PRESSURE
1C7-82380-00-00
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
92502-06010-00
Superseded by 98580-06010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98507-05010-00
Superseded by 98517-05010-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
1S4-14216-00-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
THROTTLE SENSOR AS
3B4-85885-00-00
Superseded by 3B4-85885-01-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
8CC-14216-10-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW,PAN
98502-06012-00
Superseded by 98517-06012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
DELIVERY PIPE ASSY 1
3B4-13160-00-00
|
$279.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
91312-04006-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
GUIDE, CABLE
1UY-14155-00-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, CABLE ADJUSTING
1S3-14161-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
5LP-14147-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
