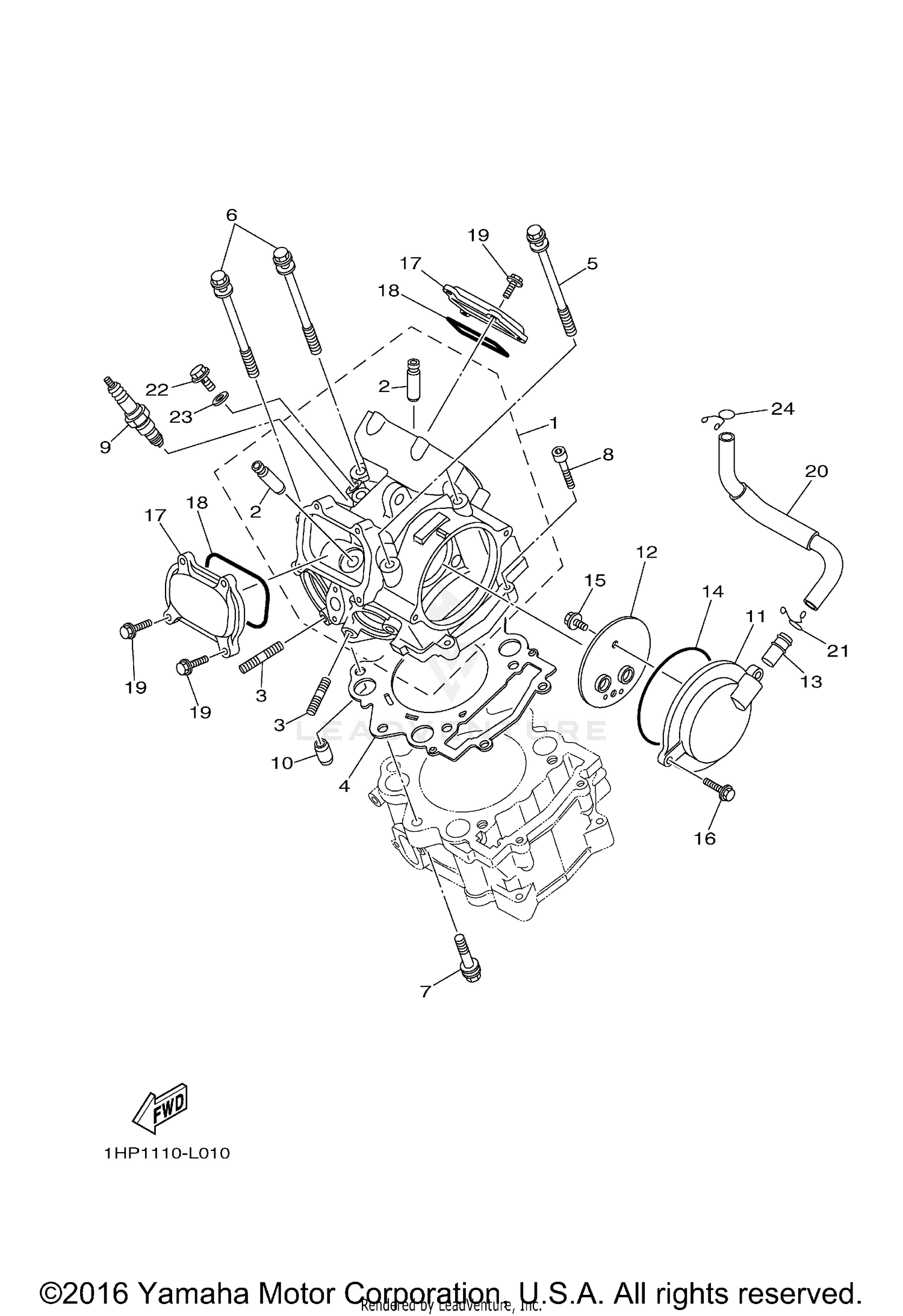

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
16B-11102-00-00
|
$935.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE 1
4G0-11133-11-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, STUD
95612-08625-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CYLINDER HEAD 1
3B4-11181-00-00
|
$58.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BOLT
90109-09003-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
90109-09002-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
90109-09005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
91312-06030-00
Superseded by 90110-06138-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG, SPARK (NGK LMAR6A-9)
LMA-R6A90-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#10
PIN, DOWEL
93612-16254-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
COVER, CYLINDER HEAD SIDE 3
3B4-11185-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, BREATHER
3B4-11165-10-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE, BREATHER 2
371-11167-01-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
93210-96601-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95022-06012-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE
95022-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, CYLINDER HEAD SIDE 2
1S3-11186-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
93210-78544-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95022-06020-00
|
$3.90 | ||
|
Unavailable |
|||
|
#20
PIPE, BREATHER 1
3B4-11166-01-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
90467-140A4-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, UNION
90401-08004-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET
90430-08119-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP
90467-150A2-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
