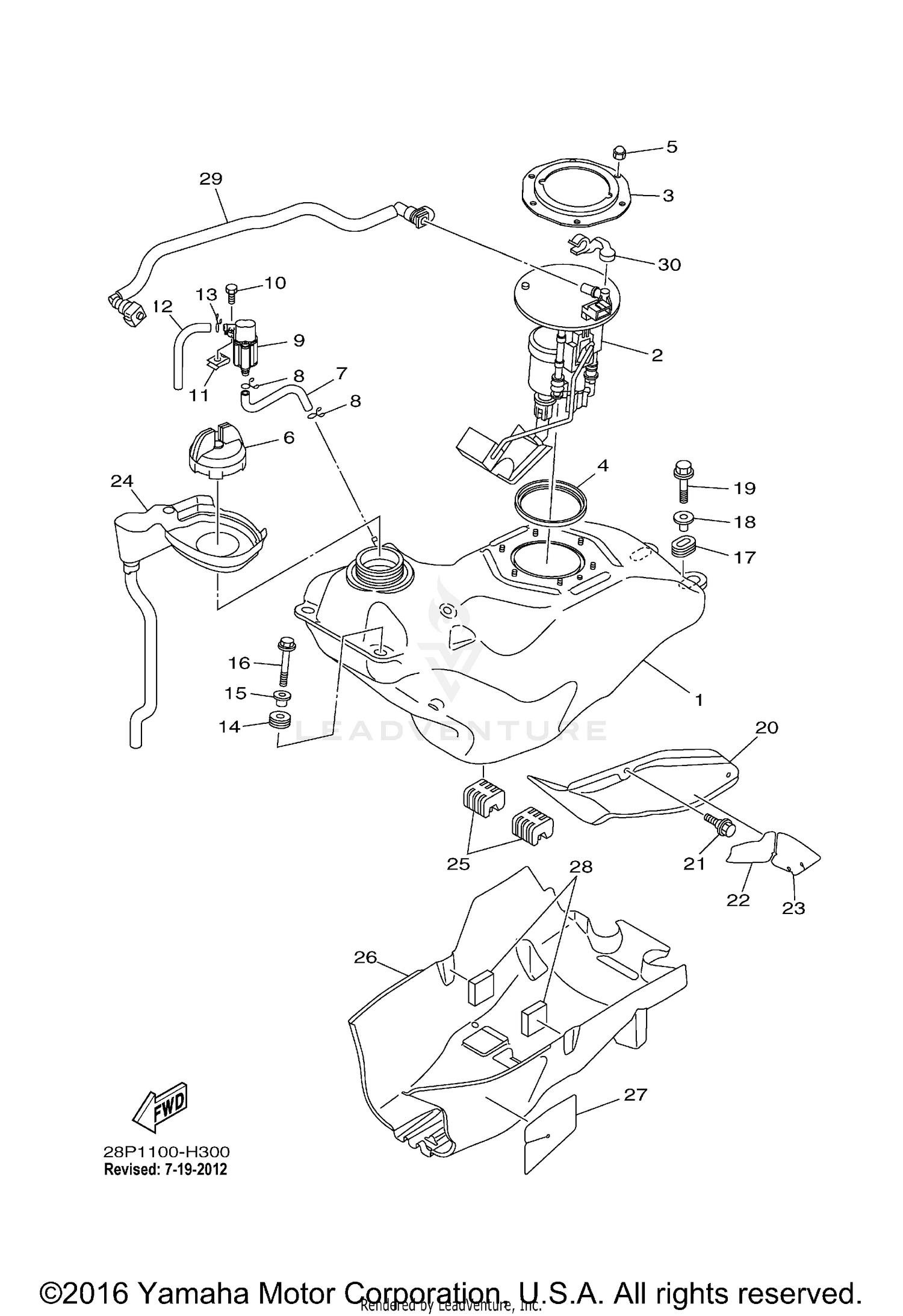

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
1HP-F4110-00-00
|
$231.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Fuel Pump Comp
3B4-13907-10-00
Superseded by 3B4-13907-13-00
|
$346.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, FUEL PUMP
3B4-24491-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
1S3-24486-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, CROWN
95302-06800-00
Superseded by 95380-06800-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP ASSY
3B4-24610-10-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE 2
1HP-F4312-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
PIPE JOINT ASSY
28P-24380-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON DEEP R
97002-06016-00
Superseded by 97D95-06016-00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
HOSE (L110)
90445-09825-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#14
GROMMET
90480-18290-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-066J1-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT,FLANGE
95802-06030-00
Superseded by 95817-06030-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET
90480-01400-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-07021-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT,FLANGE
95802-06030-00
Superseded by 95817-06030-00
|
$4.65 | ||
|
Unavailable |
|||
|
#20
COVER, SIDE 1
1HP-F4129-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
90109-06172-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
DAMPER, PLATE 2
1HP-F414J-00-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER, PLATE 3
1HP-F414K-00-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, FILLER COMP.
3B4-2414F-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
DAMPER, LOCATING 1
1HP-F4181-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PROTECTOR, FUEL TANK
1HP-F4141-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
INSULATOR, FUEL TANK 2
1HP-F416G-00-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER, LOCATING 2
3B4-24182-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIPE, FUEL 1
3B4-13971-10-00
Superseded by 3B4-13971-11-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP
90464-14004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
