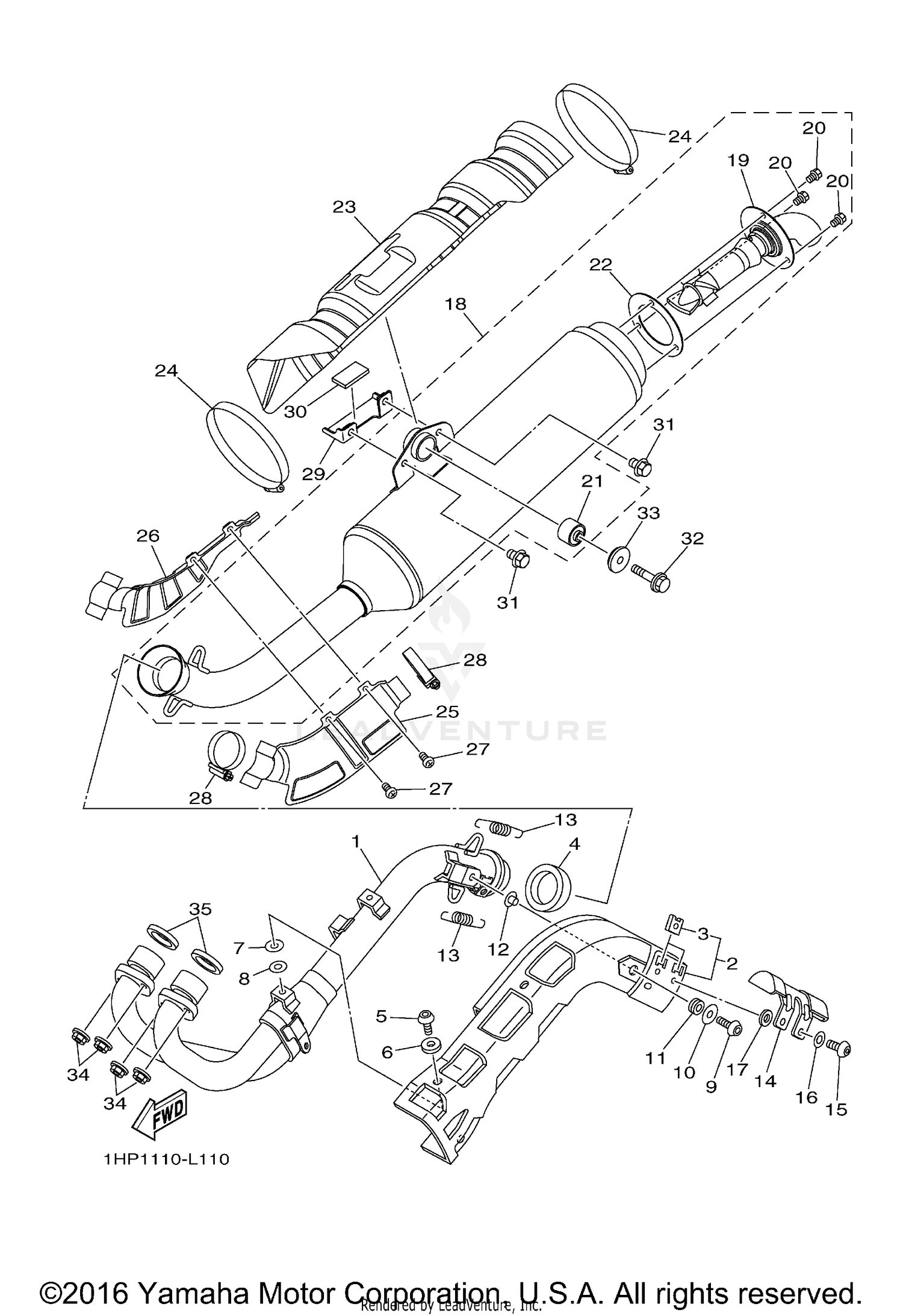

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST 1
1HP-E4611-00-00
|
$233.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, EXHAUST
1HP-E4627-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SPRING
90183-06819-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, MUFFLER
1HP-E4714-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, BUTTON HEAD
92012-06014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER PLAIN
90201-06076-00
Superseded by 90201-06380-00
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-06019-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-05825-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, BUTTON HEAD
92012-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-06081-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET
90480-17001-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-08083-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, TENSION
90506-30006-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PROTECTOR, SILENCER
1HP-E4758-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, BUTTON HEAD
92012-06012-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLAIN
92902-06200-00
Superseded by 92990-06200-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-05015-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
MUFFLER COMP. 1
1HP-E4703-00-00
|
$465.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIPE, OUTLET
1HP-E4752-00-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95022-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER, FOOTREST
1HP-F7414-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET, SILENCER
1HP-E4755-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PROTECTOR, MUFFLER 1
1HP-E4718-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE CLAMP ASSY
90450-99805-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PROTECTOR ASSY 1
1HP-E471C-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PROTECTOR ASSY., 2
1HP-E472C-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW,PAN
98502-06012-00
Superseded by 98517-06012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE CLAMP ASSY
90450-45806-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
STOPPER 1
1HP-E477U-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
MAT 1
1HP-E4733-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
95822-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE
95812-08040-00
Superseded by 95817-08040-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
WASHER
3B4-14759-01-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, FLANGE
95702-08500-00
|
$1.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
GASKET, EXHAUST PIPE
3YF-14613-01-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
