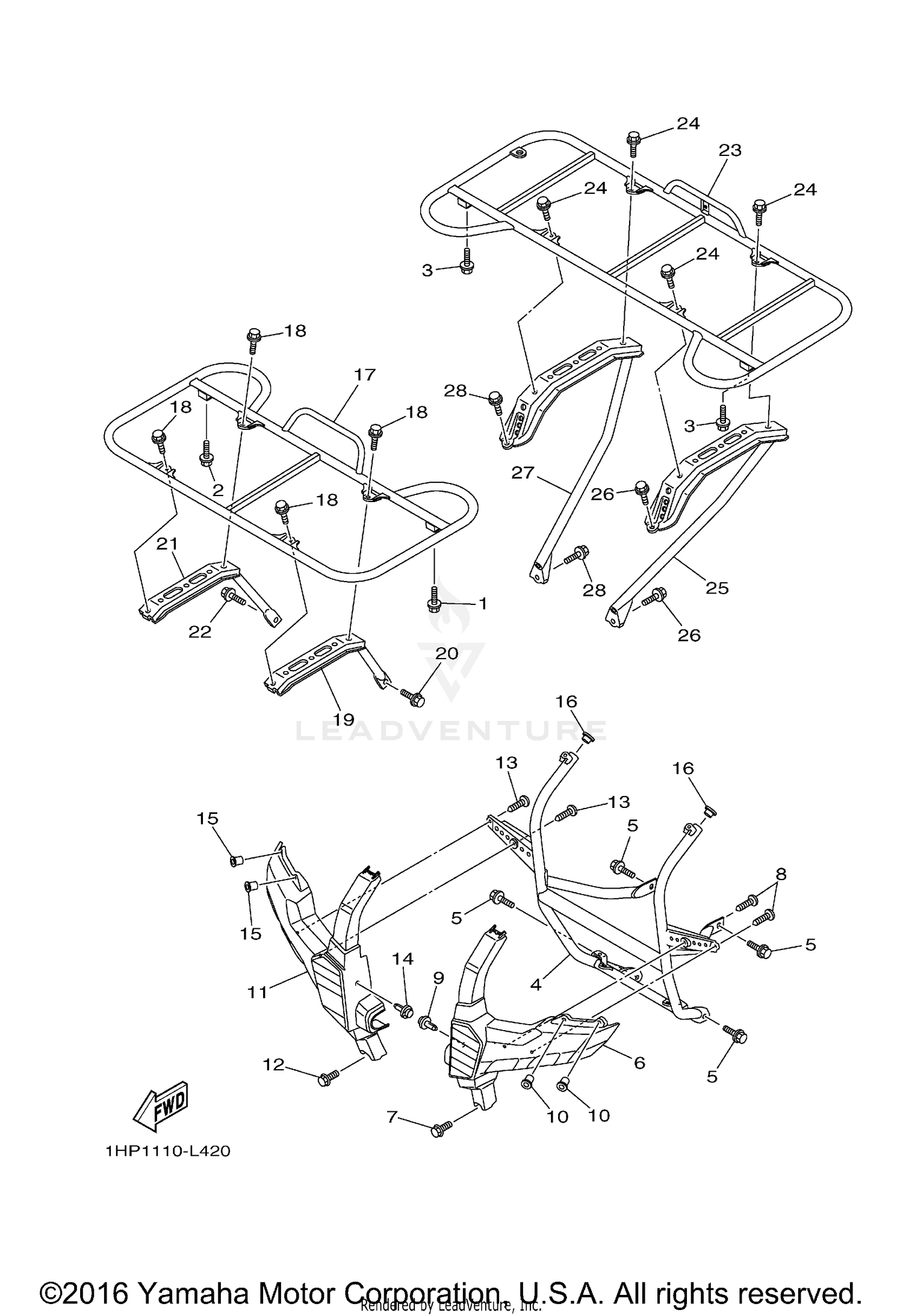

Guard Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
Unavailable |
|||
|
#3
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
Unavailable |
|||
|
#4
BAR, CARRY FRONT
1HP-F845N-00-00
Superseded by 1HP-F845N-01-00
|
$587.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95812-08014-00
Superseded by 95817-08014-00
|
$2.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
COVER, 1
1HP-F842M-00-00
Superseded by 1HP-F842M-01-00
|
$184.99 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE
90105-06832-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SCREW, TAPPING
90167-06800-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
RIVET
90269-07012-00
|
$3.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
NUT
90179-05523-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
COVER, 2
1HP-F842N-00-00
Superseded by 1HP-F842N-01-00
|
$170.99 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE
90105-06832-00
|
$1.30 | ||
|
Unavailable |
|||
|
#13
SCREW, TAPPING
90167-06800-00
|
$0.95 | ||
|
Unavailable |
|||
|
#14
RIVET
90269-07012-00
|
$3.20 | ||
|
Unavailable |
|||
|
#15
NUT
90179-05523-00
|
$7.49 | ||
|
Unavailable |
|||
|
#16
PLUG
90338-18122-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CARRIER, FRONT
1HP-F4841-00-00
|
$246.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95812-08014-00
Superseded by 95817-08014-00
|
$2.50 | ||
|
Unavailable |
|||
|
#19
STAY, FRONT CARRIER 1
1HP-F4821-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, WITH WASHER
90119-08118-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
STAY, FRONT CARRIER 2
1HP-F4822-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, WITH WASHER
90119-08118-00
|
$8.49 | ||
|
Unavailable |
|||
|
#23
CARRIER, REAR
1HP-F4842-00-00
|
$254.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
95812-08014-00
Superseded by 95817-08014-00
|
$2.50 | ||
|
Unavailable |
|||
|
#25
FRAME, CARRIER 1
1HP-F482J-00-00
|
$614.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, WITH WASHER
90119-10044-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
FRAME, CARRIER 2
1HP-F482K-00-00
|
$398.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, WITH WASHER
90119-10044-00
|
$8.49 | ||
|
Unavailable |
|||
