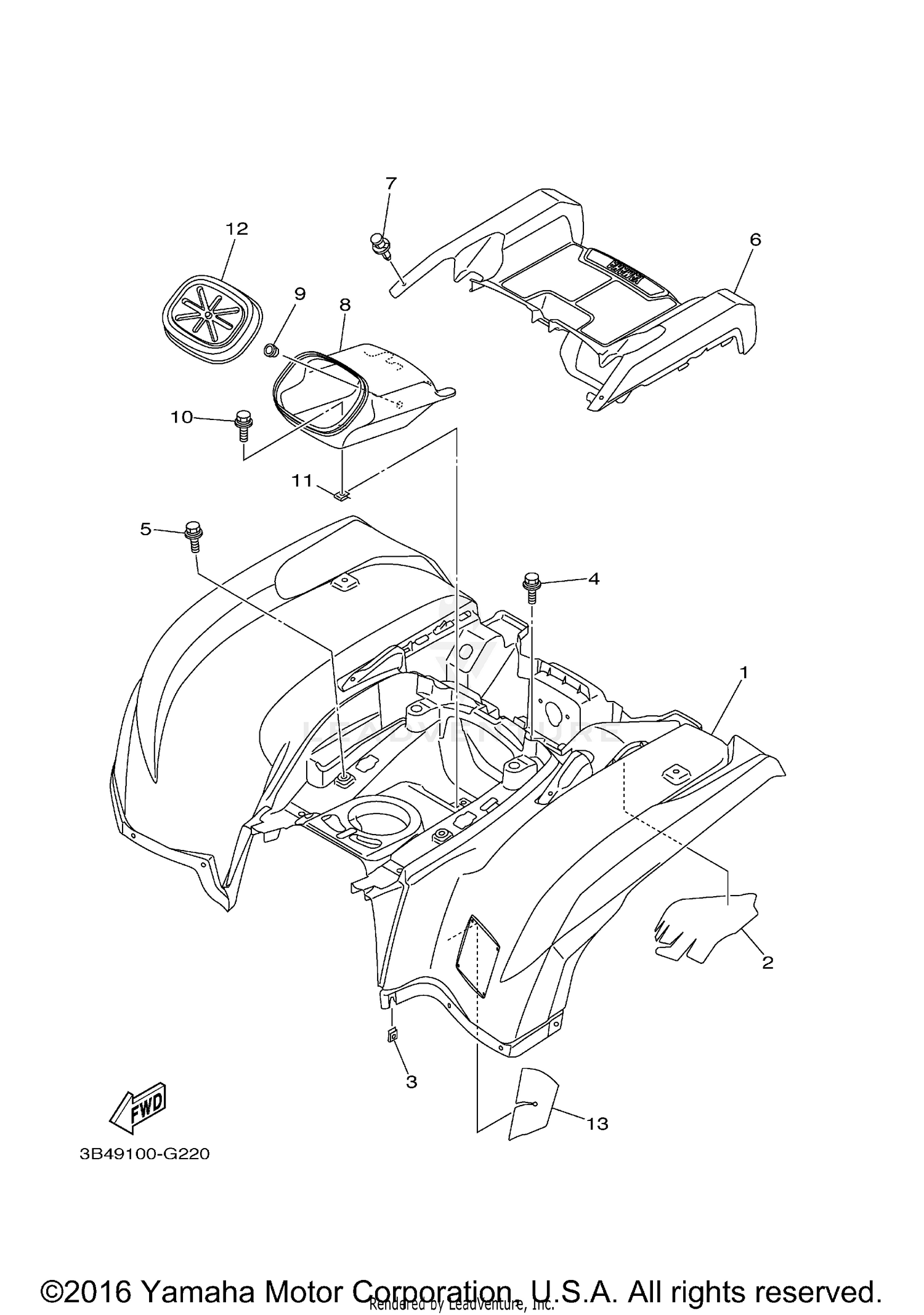

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR FENDER ASSY.
1HP-F1600-00-00
|
$195.99 | ||
|
Available to order. Add to View Price |
|||
|
#
REAR FENDER ASSY.
1HP-F1600-L0-00
|
$182.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PROTECTOR
3B4-21652-00-00
Superseded by 3B4-21652-01-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
Unavailable |
|||
|
#6
COVER, REAR FENDER
1HP-F1651-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RIVET
90269-07010-00
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOX
1HP-F160E-00-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG
90338-09130-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
Unavailable |
|||
|
#11
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
Unavailable |
|||
|
#12
LID
1HP-F160F-00-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL
1HP-F1669-00-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
