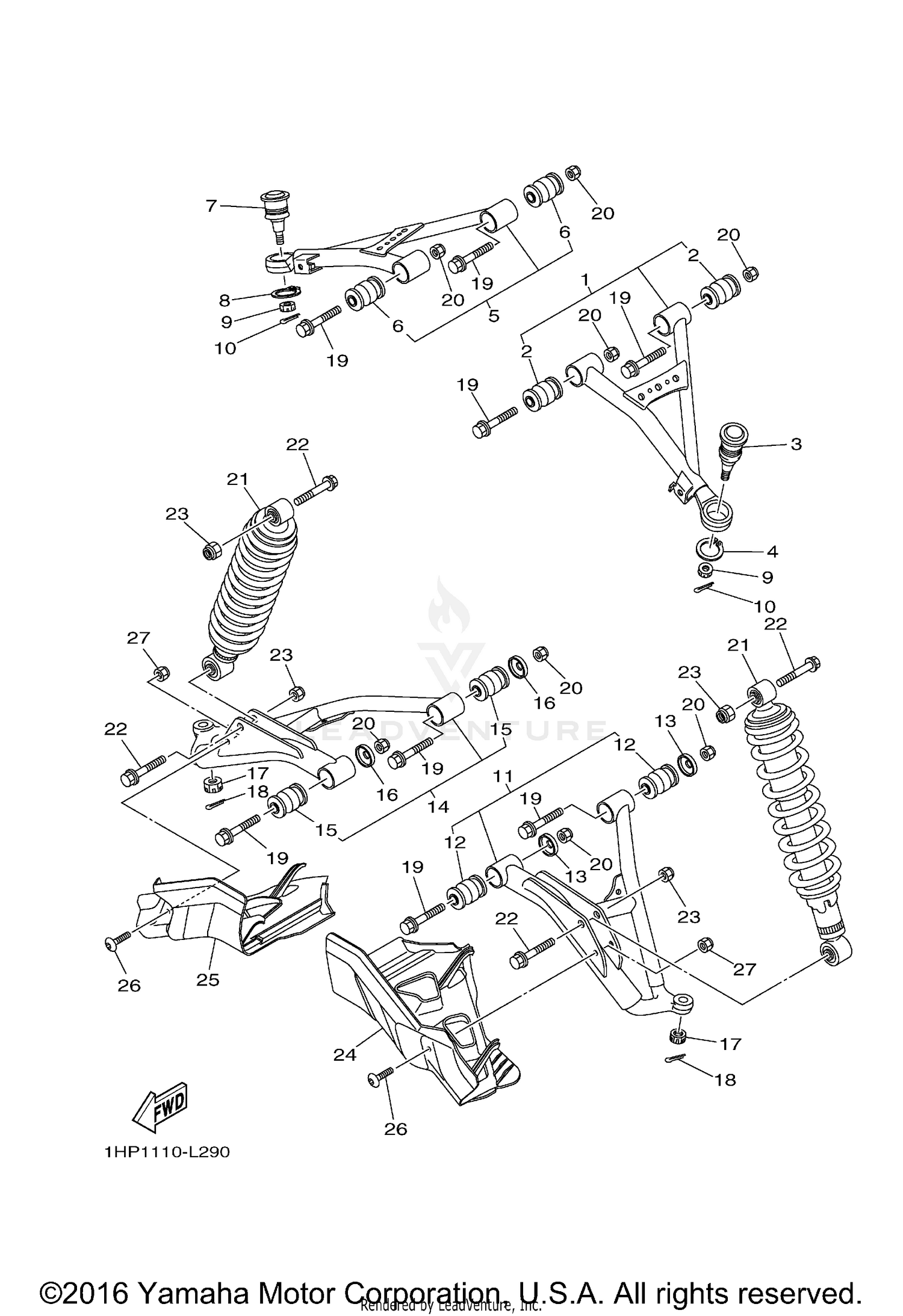

Front Suspension Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT UPPER ARM CO
1HP-F3540-00-00
Superseded by 1HP-F3540-01-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSH
1HP-F3526-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BALL JOINT 2
3B4-23579-01-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
99009-30400-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
FRONT UPPER ARM CO
1HP-F3550-00-00
Superseded by 1HP-F3550-01-00
|
$66.99 | ||
|
Unavailable |
|||
|
#6
BUSH
1HP-F3526-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#7
BALL JOINT 2
3B4-23579-01-00
|
$90.99 | ||
|
Unavailable |
|||
|
#8
CIRCLIP
99009-30400-00
|
$9.49 | ||
|
Unavailable |
|||
|
#9
NUT, CASTLE
90171-12001-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN. COTTER
91490-25020-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
FRONT LOWER ARM CO
1HP-F3570-00-00
Superseded by 1HP-F3570-11-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSH
1HP-F3526-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#13
WASHER
5KM-22149-10-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
FRONT LOWER ARM CO
1HP-F3580-00-00
Superseded by 1HP-F3580-11-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSH
1HP-F3526-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#16
WASHER
5KM-22149-10-00
|
$8.49 | ||
|
Unavailable |
|||
|
#17
NUT, CASTLE
90171-12001-00
|
$3.55 | ||
|
Unavailable |
|||
|
#18
PIN. COTTER
91490-25020-00
|
$3.45 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE
90105-10222-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, SELF-LOCKING
90185-10012-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHOCK ABSORBER ASSY
1HP-F3350-00-00
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
90105-10131-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, SELF-LOCKING
90185-10012-00
|
$3.60 | ||
|
Unavailable |
|||
|
#24
COVER, UNDER 1
1HP-F3123-00-00
Superseded by 1HP-F3123-01-00
|
$43.99 | ||
|
Unavailable |
|||
|
#25
COVER, UNDER 2
1HP-F3133-00-00
Superseded by 1HP-F3133-01-00
|
$43.99 | ||
|
Unavailable |
|||
|
#26
BOLT,HEX. SOCKET BUTTON
90111-06814-00
|
$2.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
NUT, NYLON
95702-06300-00
Superseded by 95707-06300-00
|
$3.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
