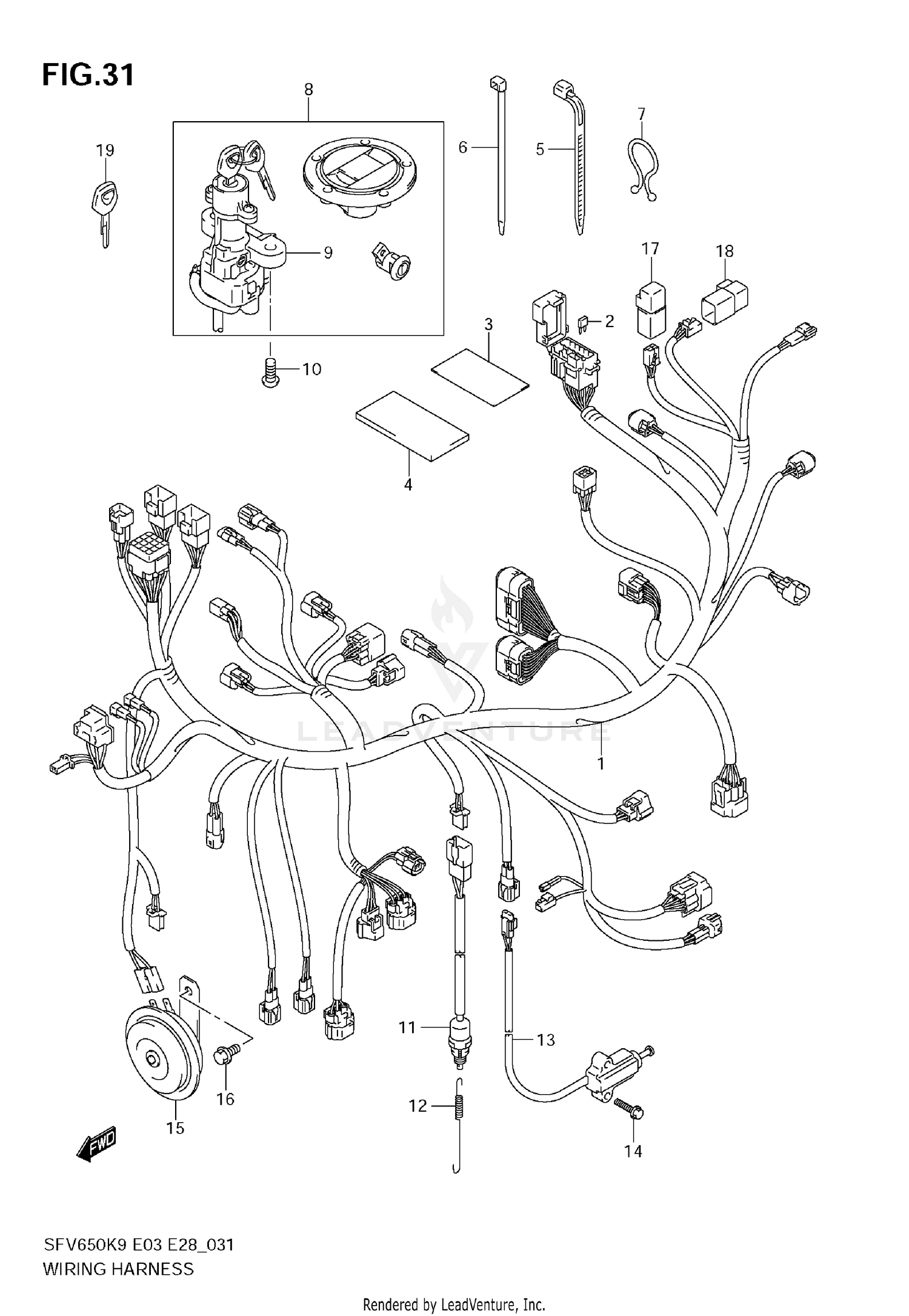

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, WIRING
36610-44H30
|
$1,062.68 | ||
|
Available to order. Add to View Price |
|||
|
#1
HARNESS, WIRING
36610-44H40
|
|||
|
Unavailable |
|||
|
#2
FUSE (10A)
09481-10501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUSE (15A)
09481-15501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
TAPE, FENDER
36611-16G00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#4
PROTECTOR (30X60X3)
36920-08D00
|
$2.03 | ||
|
Unavailable |
|||
|
#5
CLAMP (L:95)
09407-11401
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP (L:190)
09407-19401
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP (L:145)
09407-14407
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, WIRING HARNESS
09408-00012
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
LOCK SET
37000-16840
Superseded by 37000-16844
|
$425.43 | ||
|
Unavailable |
|||
|
#8
LOCK SET
37000-16890
|
|||
|
Unavailable |
|||
|
#9
LOCK ASSY,STEER
37100-16G00
Superseded by 37100-16G02
|
$210.23 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, STEERING LOCK
09139-08016
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
SWITCH ASSY,STOP LAMP
37740-44H00
Superseded by 37740-44H01
|
$22.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, BRAKE LAMP SWITCH
09443-06016
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SWITCH ASSY,SIDE STAND
37840-25D00
Superseded by 37840-25D02
|
$68.14 | ||
|
Unavailable |
|||
|
#14
BOLT, SIDE STAND SWITCH
01547-0625A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
HORN ASSY
38500-16G01
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (8X12)
01550-0812A
|
$2.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
RELAY ASSY, FUEL PUMP
38740-24X50
|
$58.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
RELAY ASSY, FAN MOTOR
38740-24X50
|
$58.35 | ||
|
Unavailable |
|||
|
#19
KEY, BLANK
37146-33E00
|
$27.38 | ||
|
Available to order. Add to View Price |
|||
