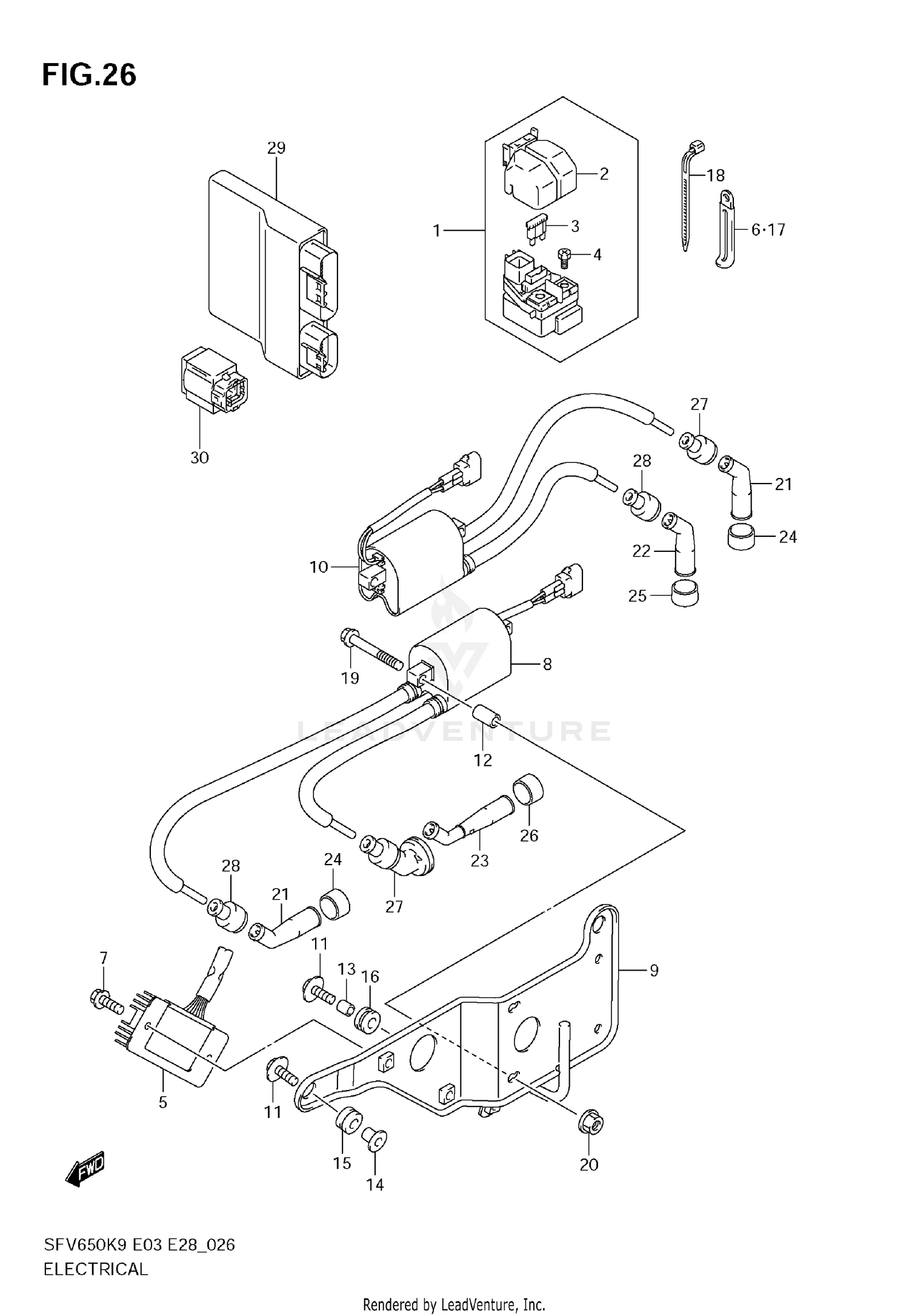

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY, STARTING MOTOR
31800-41G00
Superseded by 31800-41G10
|
$118.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER
31861-38G00
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE, 30A
09481-30501
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X8)
09128-06013
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY
32800-41G10
Superseded by 32800-47H00
|
$338.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#7
BOLT, RECTIFIER
02162-0620B
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
COIL ASSY,IGNIT
33410-44H00
Superseded by 33410-44H02
|
$140.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET,IGN COIL REAR
33414-44H00
Superseded by 33414-44H01
|
$34.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
COIL ASSY,IGNIT
33420-44H00
Superseded by 33420-44H02
|
$140.26 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (6X20)
09116-06182
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER (6.4X10X18)
09180-06195
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER (6.5X9X9)
09180-06263
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER (6.2X8.4X10.9)
09180-06331
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION, IGNITION COIL BRACKET
09320-08501
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION
09320-09016
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT
01547-0640A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
08316-1006A
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP ASSY,SPARK PLUG
33510-17G00
|
$43.19 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP ASSY,SPARK PLUG
33510-17G00
|
$43.19 | ||
|
Unavailable |
|||
|
#23
CAP ASSY, SPARK PLUG
33510-20E00
|
$39.06 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAL, SPARK PLUG CAP (CENTER)
33541-23E10
|
$8.70 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAL, SPARK PLUG CAP (SIDE)
33541-23E10
|
$8.70 | ||
|
Unavailable |
|||
|
#26
SEAL, SPARK PLUG
33541-47D00
|
$10.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
SEAL,HIGH TENSION CORD
33542-17G01
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#28
SEAL,HIGH TENSION CORD
33542-38B00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#29
CONTROL UNIT, FI
32920-44H10
|
$1,392.41 | ||
|
Available to order. Add to View Price |
|||
|
#29
CONTROL UNIT, FI
32920-44H20
|
$1,392.41 | ||
|
Available to order. Add to View Price |
|||
|
#30
SENSOR ASSY,FUEL CUT
33960-06G10
|
$116.08 | ||
|
Available to order. Add to View Price |
|||
