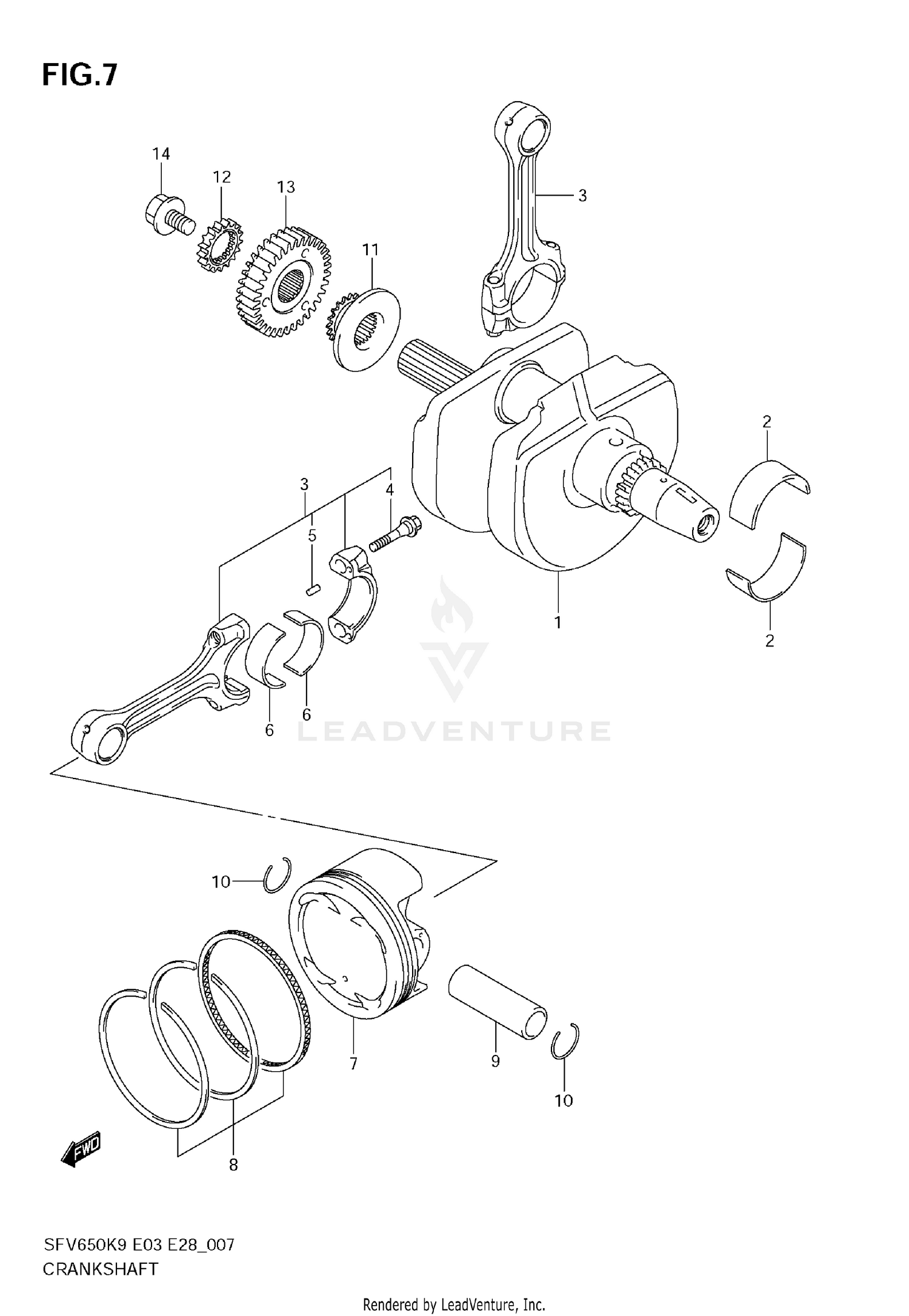

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT
12220-44H00
Superseded by 12220-44H10
|
$1,175.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING,CRANKSHAFT
12229-44H00-0A0
Superseded by 12229-44H10-0A0
|
$21.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING,CRANKSHAFT
12229-44H00-0B0
Superseded by 12229-44H10-0B0
|
$21.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING, CRANKSHAFT (BROWN)
12229-44H00-0C0
|
$17.81 | ||
|
Available to order. Add to View Price |
|||
|
#3
CONNECTING ROD ASSY
12160-17G10
|
$230.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
.BOLT,CONNROD
12163-24F10
|
$21.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
.PIN
04221-04089
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING,CRANK PIN (T:1.484/1.
12164-46E01-0A0
|
$21.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING,CRANK PIN (T:1.488/1.
12164-46E01-0B0
|
$21.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING,CRANK PIN (T:1.492/1.
12164-46E01-0C0
|
$22.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING,CRANK PIN (T:1.496/1.
12164-46E01-0D0
|
$22.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
PISTON
12111-44H00-0F0
|
$161.72 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING SET, PISTON
12140-15H00
|
$129.92 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN,PISTON
12151-05A00
|
$20.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
09381-20004
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SPROCKET,CAM CHAIN DRIVE (NT:
12731-19F00
|
$62.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR,WATER PUMP DRIVE (NT:17)
17451-17G00
|
$35.77 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR ASSY,PRIMARY DRIVE (NT:3
21100-44H00
|
$236.56 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, PRIMARY DRIVE GEAR
09103-10338
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
